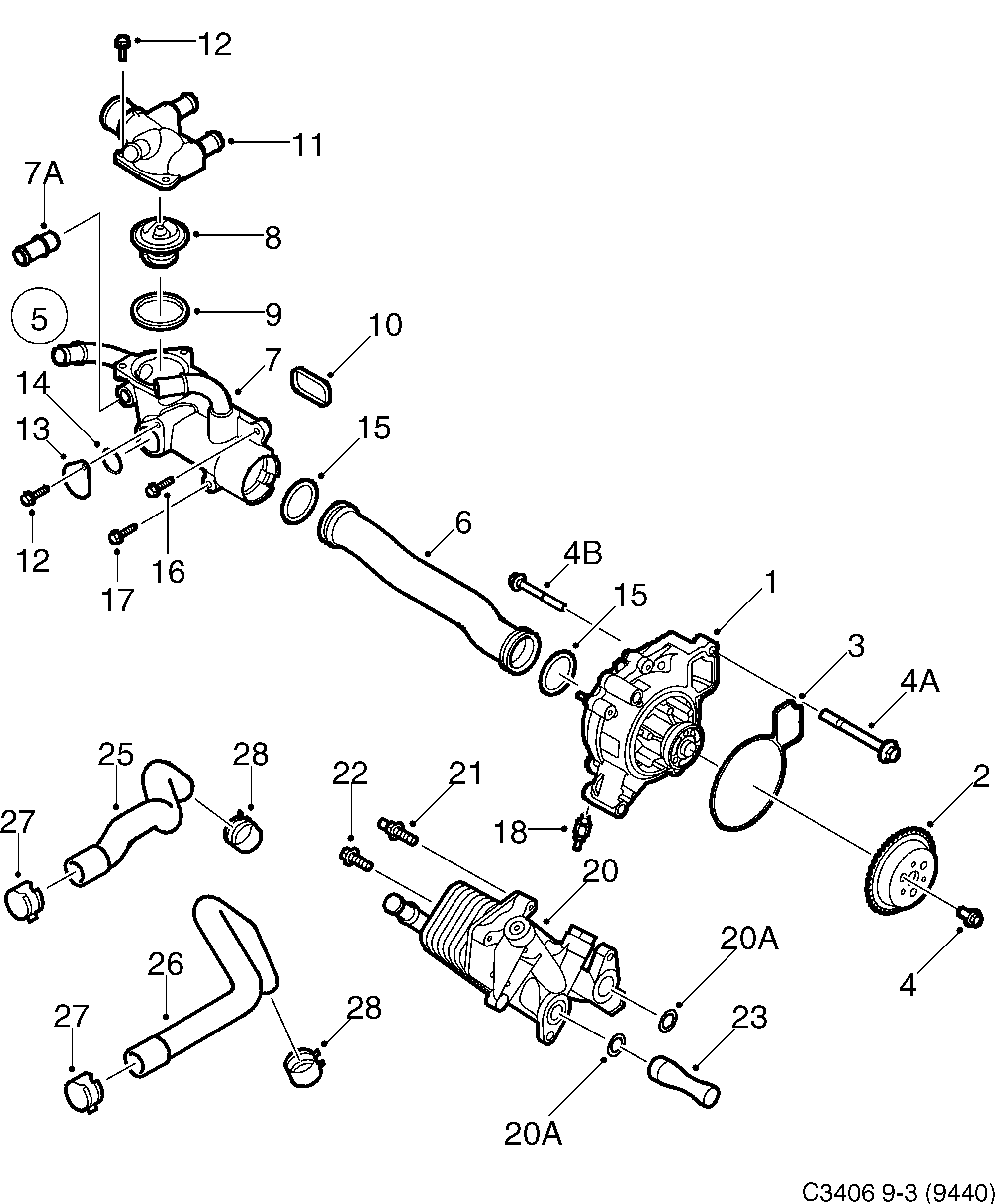

5800: Engine - Cooling system - Coolant pump - Thermostat
(2003 - 2012 | PETROL) | For 9-3 (9440) (2007)
100%
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 93 181 118 12 630 084 Coolant pump 2005-2007 • PETROL | 1 | |
| 2 | 90 537 298 Chain gear PETROL | 1 | |
| 3 | 24 439 799 Gasket PETROL | 1 | |
| 4 | 11 518 061 Screw PETROL | 3 | |
| 4A | 11 518 057 Screw PETROL | 1 | |
| 4B | 11 518 052 Screw PETROL | 2 | |
| 5 | 12 790 477 Thermostat housing PETROL • Assy | 1 | |
| 6 | 90 490 640 Tube PETROL | 1 | |
| 7 | 12 791 053 Thermostat housing PETROL | 1 | |
| 7A | 12 755 186 Connector PETROL | 1 | |
| 8 | 90 537 811 12 622 410 Thermostat 2003-2008 • PETROL | 1 | |
| 9 | 35 22 676 Gasket PETROL | 1 | |
| 10 | 90 537 471 Gasket PETROL | 1 | |
| 11 | 12 790 474 Cover PETROL | 1 | |
| 12 | 11 518 062 Screw PETROL | 4 | |
| 13 | 12 789 738 Sealing washer PETROL | 1 | |
| 14 | 12 789 739 O-ring PETROL | 1 | |
| 15 | 90 537 379 O-ring PETROL | 2 | |
| 16 | 11 518 063 Screw PETROL | 2 | |
| 17 | 11 900 171 Screw PETROL | 1 | |
| 18 | 12 797 058 Drain valve PETROL | 1 | |
| 20 | 12 786 259 Oil cooler -2007 • PETROL | 1 | |
| 20 | 55 565 996 Oil cooler 2007- • PETROL | 1 | |
| 20A | 93 181 988 O-ring kit -2007 • PETROL | 1 | |
| 20A | 12 601 372 Seal 2007- • PETROL | 1 | |
| 20A | 12 601 371 Seal 2007- • PETROL | 1 | |
| 21 | 12 794 256 Stud PETROL | 1 | |
| 22 | 11 518 049 Screw -2007 • PETROL | 2 | |
| 22 | 11 588 724 Screw 2007- • PETROL | 2 | |
11 588 327 Sleeve 2007- • PETROL | 3 | ||
| 23 | 12 790 785 Tube PETROL | 1 | |
| 25 | 12 786 237 Hose -2007 • PETROL | 1 | |
| 25 | 55 565 997 Hose 2007- • PETROL | 1 | |
| 26 | 12 786 238 Hose -2007 • PETROL | 1 | |
| 26 | 55 565 998 Hose 2007- • PETROL | 1 | |
| 27 | 90 572 594 Hose clamp 2007-2011 • PETROL | 2 | |
| 28 | 90 572 592 Hose clamp 2007-2011 • PETROL | 2 |
