Question 1

Where to find the exploded diagram for Generator on my Saab 9-3 (9440) 2007?

Accepted Answer

Find on Saabiste.net the complete and official interactive technical diagram for Generator on Saab 9-3 (9440) 2007. All components are detailed with their original SAAB OEM references.

Question 2

How do I identify a specific Saab reference in the section Generator?

Accepted Answer

Each part of the exploded diagram has a numbered marker linked to our parts table. You can click on the visual marker to instantly highlight the corresponding row containing the OEM part number, quantity, and chassis restrictions.

Question 3

How do I copy or use the part number of a component in section Generator?

Accepted Answer

Simply click on the monospace part number in the table. Saabiste will instantly copy the OEM part number to your clipboard to make it easier for you to search at your Saab parts suppliers.

Question 4

What does NLS mean in the Saab 9-3 (9440) catalog?

Accepted Answer

NLS stands for "No Longer Serviced". For these discontinued original parts in the section Generator, Saabiste displays, whenever available, the official replacement reference recommended by the manufacturer.

Question 5

Are the parts in this section Generator suitable for left-hand drive (LHD) or right-hand drive (RHD)?

Accepted Answer

Steering compatibilities are shown in the restrictions column of the parts table. You can also use the global EPC filters to hide part variants that are incompatible with your Saab's steering type (LHD/RHD).

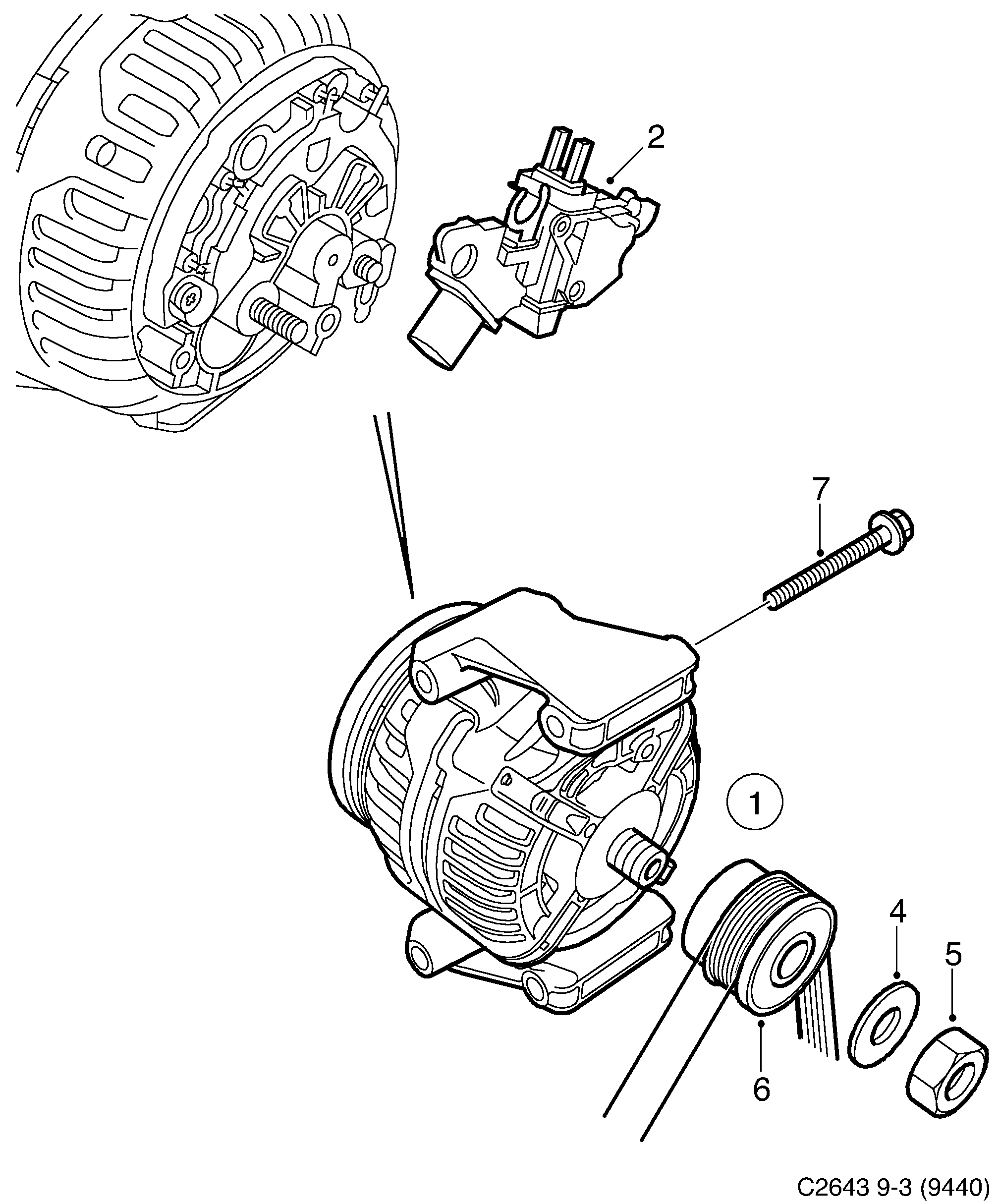

Pos.	Part No.	Description	Usage	Qty
1	12 757 363 Generator 2005-2011 • PETROL • 120 A \| Also...	Generator	2005-2011 PETROL 120 A \| Also...	1
1	12 762 730 Generator 2005-2011 • PETROL • Also available as exchange...	Generator	2005-2011 PETROL Also available as exchange...	1
2	12 793 278 Voltage regulator PETROL	Voltage regulator	PETROL	1
	12 790 482 Protection 2005-2011 • PETROL	Protection	2005-2011 PETROL	1
4	12 790 485 Washer PETROL	Washer	PETROL	1
5	12 790 484 Nut PETROL	Nut	PETROL	1
6	12 803 493 Pulley 2005-2011 • PETROL	Pulley	2005-2011 PETROL	1
7	11 518 659 Screw PETROL • M8x100	Screw	PETROL M8x100	4

Pos.	Part No.	Description	Usage	Qty
1	12 757 363 Generator 2005-2011 • PETROL • 120 A \| Also...	Generator	2005-2011 PETROL 120 A \| Also...	1
1	12 762 730 Generator 2005-2011 • PETROL • Also available as exchange...	Generator	2005-2011 PETROL Also available as exchange...	1
2	12 793 278 Voltage regulator PETROL	Voltage regulator	PETROL	1
	12 790 482 Protection 2005-2011 • PETROL	Protection	2005-2011 PETROL	1
4	12 790 485 Washer PETROL	Washer	PETROL	1
5	12 790 484 Nut PETROL	Nut	PETROL	1
6	12 803 493 Pulley 2005-2011 • PETROL	Pulley	2005-2011 PETROL	1
7	11 518 659 Screw PETROL • M8x100	Screw	PETROL M8x100	4

200: Electrical, general - Generator
