Question 1

Where to find the exploded diagram for Upholstery on my Saab 9-3 (9440) 2008?

Accepted Answer

Find on Saabiste.net the complete and official interactive technical diagram for Upholstery on Saab 9-3 (9440) 2008. All components are detailed with their original SAAB OEM references.

Question 2

How do I identify a specific Saab reference in the section Upholstery?

Accepted Answer

Each part of the exploded diagram has a numbered marker linked to our parts table. You can click on the visual marker to instantly highlight the corresponding row containing the OEM part number, quantity, and chassis restrictions.

Question 3

How do I copy or use the part number of a component in section Upholstery?

Accepted Answer

Simply click on the monospace part number in the table. Saabiste will instantly copy the OEM part number to your clipboard to make it easier for you to search at your Saab parts suppliers.

Question 4

What does NLS mean in the Saab 9-3 (9440) catalog?

Accepted Answer

NLS stands for "No Longer Serviced". For these discontinued original parts in the section Upholstery, Saabiste displays, whenever available, the official replacement reference recommended by the manufacturer.

Question 5

Are the parts in this section Upholstery suitable for left-hand drive (LHD) or right-hand drive (RHD)?

Accepted Answer

Steering compatibilities are shown in the restrictions column of the parts table. You can also use the global EPC filters to hide part variants that are incompatible with your Saab's steering type (LHD/RHD).

Pos.	Part No.	Description	Usage	Qty
1	12 791 382 Sound absorber LH	Sound absorber	LH	1
1	12 791 383 Sound absorber RH	Sound absorber	RH	1
1	12 756 474 Sound absorber 2006-2011	Sound absorber	2006-2011	2
2	12 785 313 Insulation 2003-2008 • LH	Insulation	2003-2008 LH	1
2	12 785 314 Insulation 2003-2008 • RH	Insulation	2003-2008 RH	1
2	12 799 673 Insulation 2006-2011 • LH	Insulation	2006-2011 LH	1
2	12 799 674 Insulation 2006-2011 • RH	Insulation	2006-2011 RH	1
3	90 214 832 Clip	Clip		4
5	12 793 720 Insulation 2006-2011	Insulation	2006-2011	2
5	12 795 840 Seal LH	Seal	LH	1
5	12 795 841 Seal RH	Seal	RH	1
6	12 765 541 Insulation 2006-2011 • Rear window Lower	Insulation	2006-2011 Rear window Lower	2
7	12 791 384 Insulation	Insulation		2
8	12 800 761 Sound absorber	Sound absorber		2
11	90 214 255 90 214 832 Rivet LH	Rivet	LH	1
12	12 771 917 Sound absorber 2007- • LH	Sound absorber	2007- LH	1
12	12 771 918 Sound absorber 2007- • RH	Sound absorber	2007- RH	1
15	12 769 242 Insulation 2005-2011	Insulation	2005-2011	1
16	12 799 907 Insulation B284, Z19DT, Z19DTH, Z19DTR, A19DTR	Insulation	B284, Z19DT, Z19DTH, Z19DTR, A19DTR	1
17	12 760 541 Sound absorber 2006-2011	Sound absorber	2006-2011	1
18	12 833 370 Insulation LH	Insulation	LH	1
18	12 833 385 Insulation RH	Insulation	RH	1
19	12 764 934 Insulation LH	Insulation	LH	1
19	12 764 933 Insulation RH	Insulation	RH	1
20	12 768 434 Insulation RH \| Air evacuation	Insulation	RH \| Air evacuation	1
21	12 768 436 Insulation Rear seat	Insulation	Rear seat	1
22	12 766 131 Sound absorber 2006-2011 • LH	Sound absorber	2006-2011 LH	1
22	12 763 960 Insulation 2006-2011 • RH	Insulation	2006-2011 RH	1
23	12 765 883 Insulation 2006-2011 • Rear end panel	Insulation	2006-2011 Rear end panel	2
24	12 778 258 Insulation 2008-2011 • centre console	Insulation	2008-2011 centre console	1
25	92 152 041 Rivet 2008-2011 • Insulation centre console	Rivet	2008-2011 Insulation centre console	2

Pos.	Part No.	Description	Usage	Qty
1	12 791 382 Sound absorber LH	Sound absorber	LH	1
1	12 791 383 Sound absorber RH	Sound absorber	RH	1
1	12 756 474 Sound absorber 2006-2011	Sound absorber	2006-2011	2
2	12 785 313 Insulation 2003-2008 • LH	Insulation	2003-2008 LH	1
2	12 785 314 Insulation 2003-2008 • RH	Insulation	2003-2008 RH	1
2	12 799 673 Insulation 2006-2011 • LH	Insulation	2006-2011 LH	1
2	12 799 674 Insulation 2006-2011 • RH	Insulation	2006-2011 RH	1
3	90 214 832 Clip	Clip		4
5	12 793 720 Insulation 2006-2011	Insulation	2006-2011	2
5	12 795 840 Seal LH	Seal	LH	1
5	12 795 841 Seal RH	Seal	RH	1
6	12 765 541 Insulation 2006-2011 • Rear window Lower	Insulation	2006-2011 Rear window Lower	2
7	12 791 384 Insulation	Insulation		2
8	12 800 761 Sound absorber	Sound absorber		2
11	90 214 255 90 214 832 Rivet LH	Rivet	LH	1
12	12 771 917 Sound absorber 2007- • LH	Sound absorber	2007- LH	1
12	12 771 918 Sound absorber 2007- • RH	Sound absorber	2007- RH	1
15	12 769 242 Insulation 2005-2011	Insulation	2005-2011	1
16	12 799 907 Insulation B284, Z19DT, Z19DTH, Z19DTR, A19DTR	Insulation	B284, Z19DT, Z19DTH, Z19DTR, A19DTR	1
17	12 760 541 Sound absorber 2006-2011	Sound absorber	2006-2011	1
18	12 833 370 Insulation LH	Insulation	LH	1
18	12 833 385 Insulation RH	Insulation	RH	1
19	12 764 934 Insulation LH	Insulation	LH	1
19	12 764 933 Insulation RH	Insulation	RH	1
20	12 768 434 Insulation RH \| Air evacuation	Insulation	RH \| Air evacuation	1
21	12 768 436 Insulation Rear seat	Insulation	Rear seat	1
22	12 766 131 Sound absorber 2006-2011 • LH	Sound absorber	2006-2011 LH	1
22	12 763 960 Insulation 2006-2011 • RH	Insulation	2006-2011 RH	1
23	12 765 883 Insulation 2006-2011 • Rear end panel	Insulation	2006-2011 Rear end panel	2
24	12 778 258 Insulation 2008-2011 • centre console	Insulation	2008-2011 centre console	1
25	92 152 041 Rivet 2008-2011 • Insulation centre console	Rivet	2008-2011 Insulation centre console	2

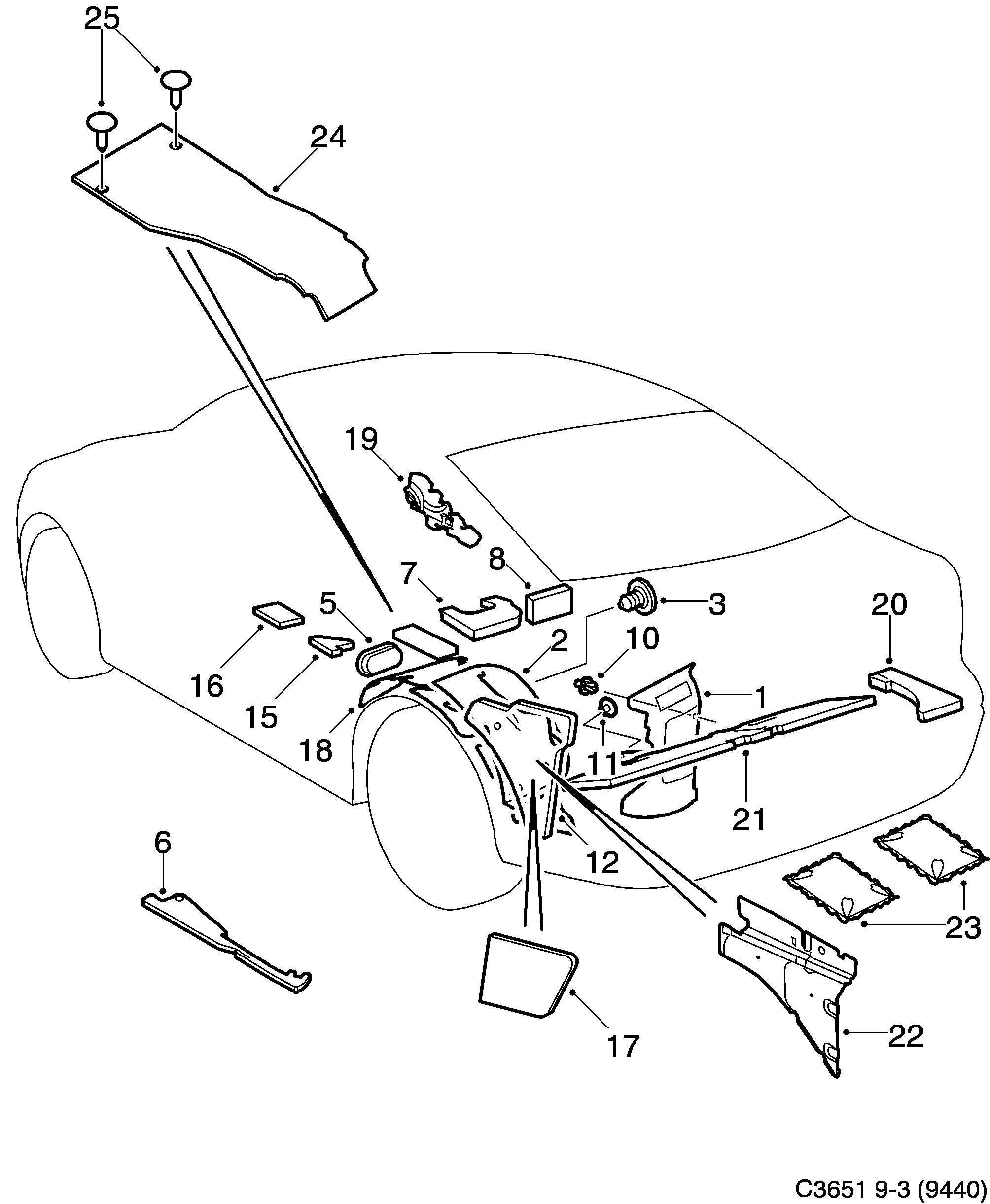

2100: Car body, internal - Upholstery - Insulation - Rear
