Question 1

Where to find the exploded diagram for Upholstery on my Saab 9-3 (9440) 2008?

Accepted Answer

Find on Saabiste.net the complete and official interactive technical diagram for Upholstery on Saab 9-3 (9440) 2008. All components are detailed with their original SAAB OEM references.

Question 2

How do I identify a specific Saab reference in the section Upholstery?

Accepted Answer

Each part of the exploded diagram has a numbered marker linked to our parts table. You can click on the visual marker to instantly highlight the corresponding row containing the OEM part number, quantity, and chassis restrictions.

Question 3

How do I copy or use the part number of a component in section Upholstery?

Accepted Answer

Simply click on the monospace part number in the table. Saabiste will instantly copy the OEM part number to your clipboard to make it easier for you to search at your Saab parts suppliers.

Question 4

What does NLS mean in the Saab 9-3 (9440) catalog?

Accepted Answer

NLS stands for "No Longer Serviced". For these discontinued original parts in the section Upholstery, Saabiste displays, whenever available, the official replacement reference recommended by the manufacturer.

Question 5

Are the parts in this section Upholstery suitable for left-hand drive (LHD) or right-hand drive (RHD)?

Accepted Answer

Steering compatibilities are shown in the restrictions column of the parts table. You can also use the global EPC filters to hide part variants that are incompatible with your Saab's steering type (LHD/RHD).

Pos.	Part No.	Description	Usage	Qty
4	92 150 427 Lock washer	Lock washer		X
8	12 789 336 Anchorage LH	Anchorage	LH	1
9	90 346 737 Clip	Clip		2
13	92 150 065 92 151 601 Screw M6 x 16	Screw	M6 x 16	4
14	92 152 355 Clip	Clip		8
16	92 150 375 91 30 829 Nut M6	Nut	M6	X
Trim colour B02/B09/B43 12 items				Trim colour B02/B09/B4312 items Click to open
Trim colour B05/B09 3 items				Trim colour B05/B093 items Click to open
Trim colour B10 3 items				Trim colour B103 items Click to open
Trim colour B50 15 items				Trim colour B5015 items Click to open
Trim colour B51 3 items				Trim colour B513 items Click to open
Trim colour K50 15 items				Trim colour K5015 items Click to open
Trim colour L02/L09/L43 10 items				Trim colour L02/L09/L4310 items Click to open
Trim colour L05/L09 3 items				Trim colour L05/L093 items Click to open
Trim colour L50 42 items				Trim colour L5042 items Click to open

Pos.	Part No.	Description	Usage	Qty
4	92 150 427 Lock washer	Lock washer		X
8	12 789 336 Anchorage LH	Anchorage	LH	1
9	90 346 737 Clip	Clip		2
13	92 150 065 92 151 601 Screw M6 x 16	Screw	M6 x 16	4
14	92 152 355 Clip	Clip		8
16	92 150 375 91 30 829 Nut M6	Nut	M6	X
Trim colour B02/B09/B43 12 items				Trim colour B02/B09/B4312 items Click to open
Trim colour B05/B09 3 items				Trim colour B05/B093 items Click to open
Trim colour B10 3 items				Trim colour B103 items Click to open
Trim colour B50 15 items				Trim colour B5015 items Click to open
Trim colour B51 3 items				Trim colour B513 items Click to open
Trim colour K50 15 items				Trim colour K5015 items Click to open
Trim colour L02/L09/L43 10 items				Trim colour L02/L09/L4310 items Click to open
Trim colour L05/L09 3 items				Trim colour L05/L093 items Click to open
Trim colour L50 42 items				Trim colour L5042 items Click to open

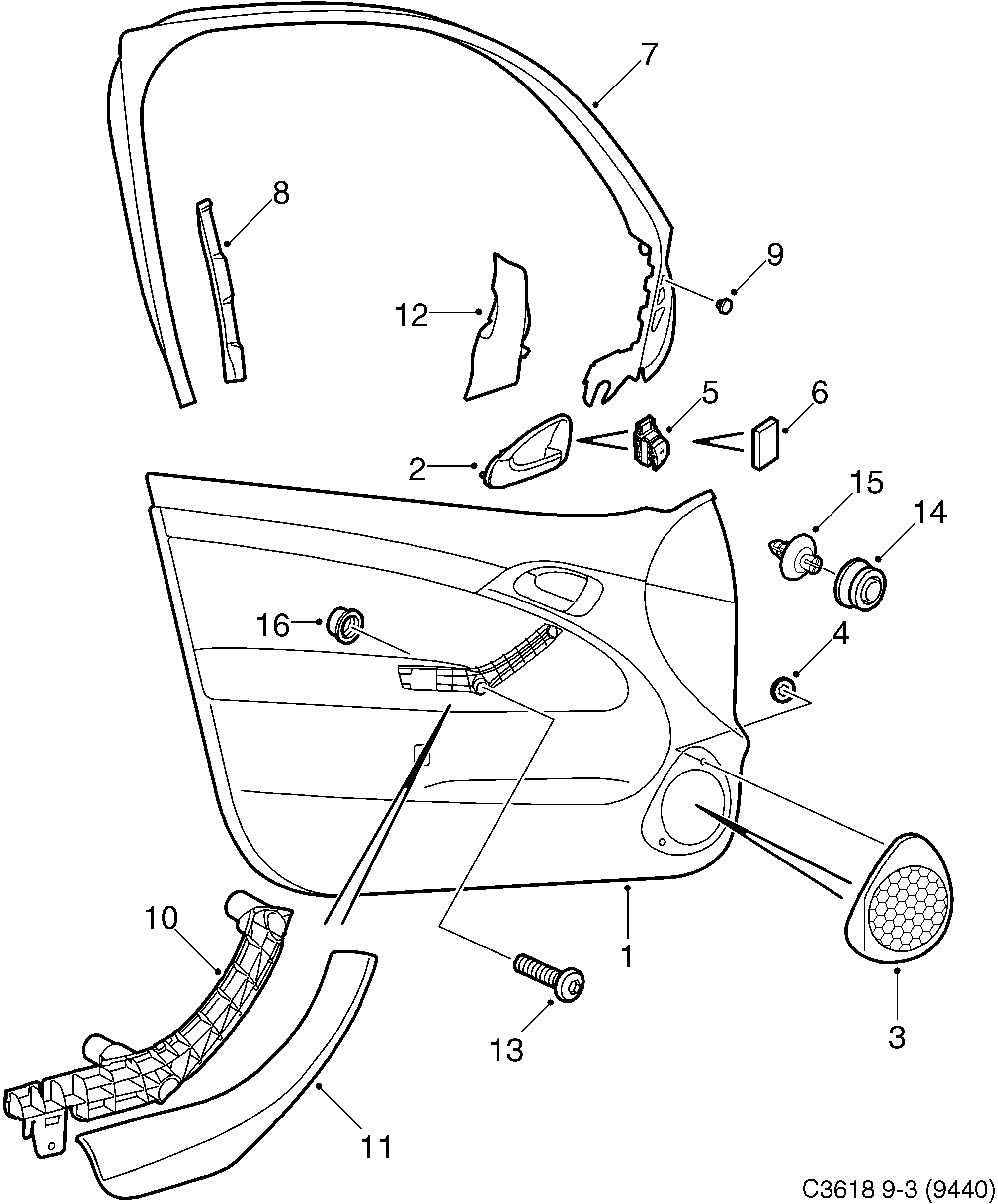

2420: Car body, internal - Upholstery - Door trim - Front door
