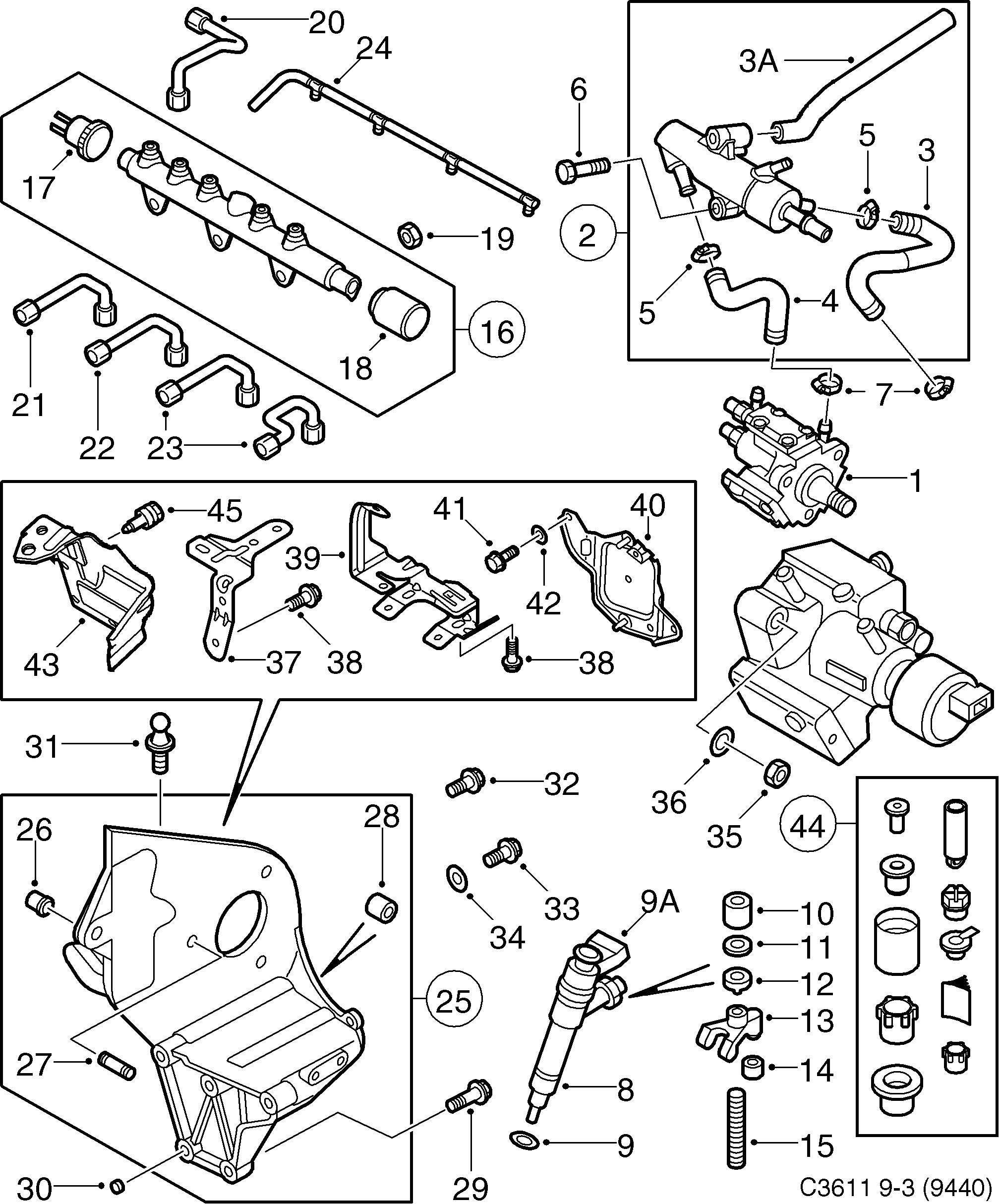

3550: Engine - Fuel system - Injection pump - Injection valve

(2005 - 2010 | Z19DT) | For 9-3 (9440) (2009)

100%

(N°3475)

Section 3550

(N°3575)

Pos.	Part No.	Description	Usage	Qty
1	93 188 709 93 190 244 Injection pump 2006-2010, LHD • Z19DT	Injection pump	2006-2010, LHD Z19DT	1
1	93 188 710 93 190 245 Injection pump 2006-2010, RHD • Z19DT	Injection pump	2006-2010, RHD Z19DT	1
2	93 188 472 Pressure regulator 2004- • Z19DT	Pressure regulator	2004- Z19DT	1
2	93 190 428 93 195 849 Pressure regulator 2007- • Z19DT	Pressure regulator	2007- Z19DT	1
3A	93 195 850 Hose 2008-2009 • Z19DT	Hose	2008-2009 Z19DT	1
4	93 179 189 Hose Z19DT	Hose	Z19DT	1
5	93 177 692 Hose clamp Z19DT	Hose clamp	Z19DT	2
6	55 217 832 Torx screw Z19DT • M6X55	Torx screw	Z19DT M6X55	2
7	93 177 692 Hose clamp Z19DT	Hose clamp	Z19DT	2
8	93 190 429 Injector 2007- • Z19DT	Injector	2007- Z19DT	4
9	93 178 683 Gasket Z19DT	Gasket	Z19DT	4
9A	93 181 656 Spring clamp Z19DT	Spring clamp	Z19DT	4
10	93 180 527 Nut Z19DT	Nut	Z19DT	4
11	93 180 534 Washer Z19DT	Washer	Z19DT	4
12	93 180 526 Washer Z19DT	Washer	Z19DT	4
13	93 183 559 93 184 223 Bracket Z19DT	Bracket	Z19DT	4
14	93 178 692 Washer Z19DT	Washer	Z19DT	1
15	93 178 691 Stud Z19DT	Stud	Z19DT	4
16	55 215 204 Distribution pipe 2006- • Z19DT	Distribution pipe	2006- Z19DT	1
17	93 177 365 93 185 626 Sensor Z19DT	Sensor	Z19DT	1
19	93 178 688 Nut Z19DT	Nut	Z19DT	2
20	55 214 911 Pipe 2006- • Z19DT	Pipe	2006- Z19DT	1
21	55 214 908 Fuel pipe 2006- • Z19DT • CYL.4	Fuel pipe	2006- Z19DT CYL.4	1
22	55 214 909 Fuel pipe 2006- • Z19DT • CYL.3	Fuel pipe	2006- Z19DT CYL.3	1
23	55 214 910 Fuel pipe 2006- • Z19DT • CYL.1-2	Fuel pipe	2006- Z19DT CYL.1-2	2
24	93 185 634 Fuel pipe 2004- • Z19DT	Fuel pipe	2004- Z19DT	1
24	93 196 078 Hose 2009-2010 • Z19DT	Hose	2009-2010 Z19DT	1
25	93 178 694 Bracket Z19DT	Bracket	Z19DT	1
26	93 190 054 Sleeve nut 2007-2010 • Z19DT	Sleeve nut	2007-2010 Z19DT	1
27	93 178 845 Stud Z19DT	Stud	Z19DT	3
28	93 179 184 Bushing Z19DT	Bushing	Z19DT	1
29	93 178 846 Screw Z19DT • M8X68	Screw	Z19DT M8X68	2
29	93 178 847 Screw Z19DT • M8X35	Screw	Z19DT M8X35	3
30	93 178 469 Screw plug Z19DT	Screw plug	Z19DT	2
31	55 560 110 Ball stud 2006-2010 • Z19DT	Ball stud	2006-2010 Z19DT	1
32	93 179 193 Screw Z19DT	Screw	Z19DT	2
33	93 178 981 Screw Z19DT	Screw	Z19DT	1
34	93 179 080 Washer Z19DT	Washer	Z19DT	1
35	93 178 880 Nut Z19DT	Nut	Z19DT	3
36	93 178 879 Washer Z19DT	Washer	Z19DT	3
37	93 188 471 Bracket Z19DT	Bracket	Z19DT	1
38	93 188 471 Bracket 2007-2010 • Z19DT	Bracket	2007-2010 Z19DT	1
38	93 178 042 Screw Z19DT	Screw	Z19DT	5
39	93 182 376 Bracket Z19DT	Bracket	Z19DT	1
41	93 179 192 Screw Z19DT	Screw	Z19DT	3
42	93 181 802 Washer Z19DT	Washer	Z19DT	3
43	55 559 692 Protecting plate Z19DT	Protecting plate	Z19DT	1
44	93 161 370 Part kit 2008-2010 • Z19DT • Supplementary kit, fuel connection	Part kit	2008-2010 Z19DT Supplementary kit, fuel connection	1
45	92 152 043 Screw Z19DT • M6 x 16	Screw	Z19DT M6 x 16	3
