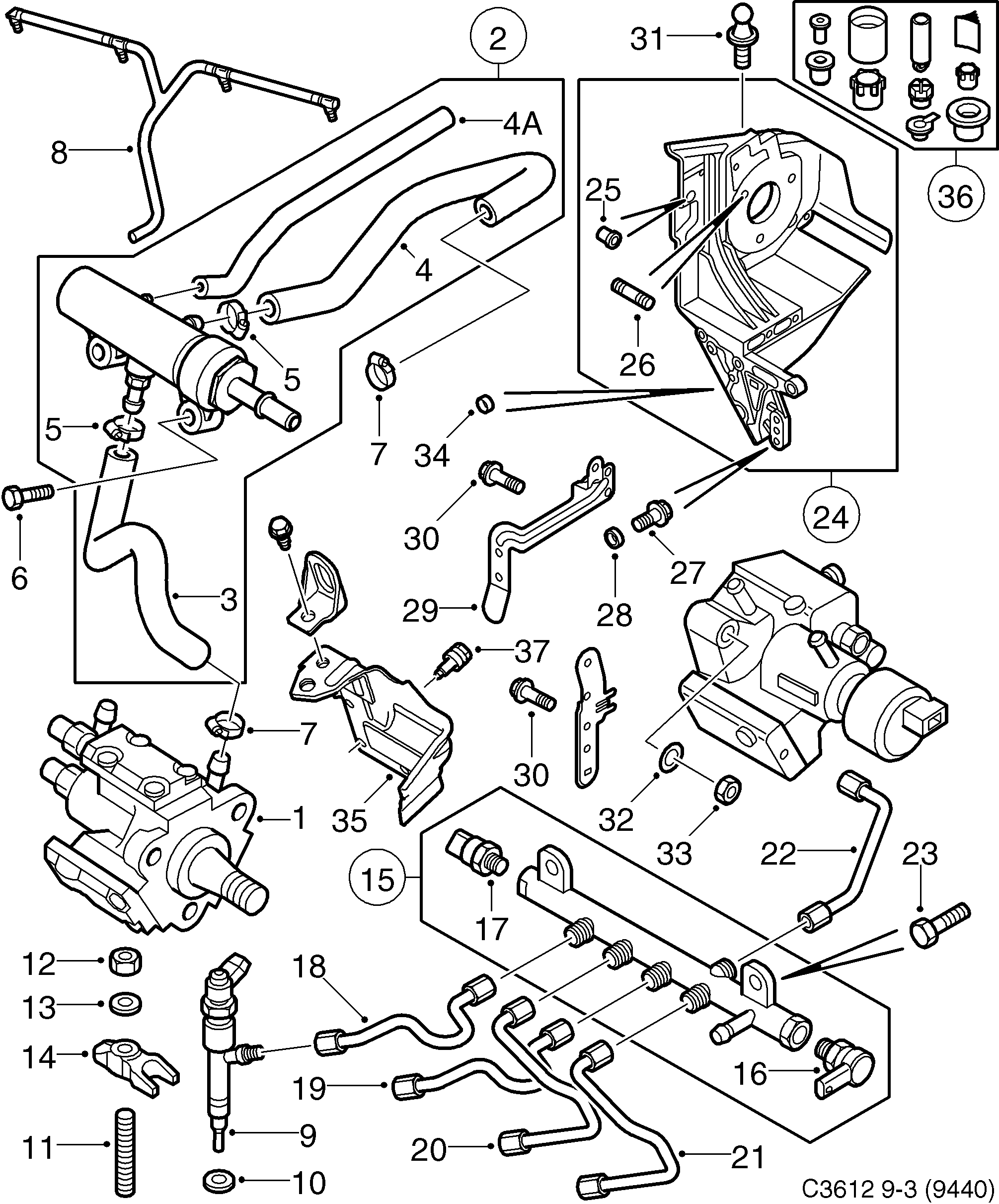

3575: Engine - Fuel system - Injection pump - Injection valve

(2005 - 2010 | Z19DTH) | For 9-3 (9440) (2009)

100%

(N°3550)

Section 3575

(N°3576)

Pos.	Part No.	Description	Usage	Qty
1	93 190 244 Injection pump 2001-, LHD • Z19DTH • Also available as exchange...	Injection pump	2001-, LHD Z19DTH Also available as exchange...	1
1	93 191 709 Injection pump LHD • Z19DTH	Injection pump	LHD Z19DTH	1
1	93 190 245 Injection pump 2001-, RHD • Z19DTH • Also available as exchange...	Injection pump	2001-, RHD Z19DTH Also available as exchange...	1
2	55 205 605 Reservoir 2001- • Z19DTH	Reservoir	2001- Z19DTH	1
4A	55 573 521 Hose 2009-2010 • Z19DTH	Hose	2009-2010 Z19DTH	1
5	93 177 692 Hose clamp Z19DTH	Hose clamp	Z19DTH	2
6	12 855 336 Screw 2008-2010 • Z19DTH • M6X30	Screw	2008-2010 Z19DTH M6X30	2
7	93 177 692 Hose clamp Z19DTH	Hose clamp	Z19DTH	2
8	55 566 677 Hose 2005-2010 • Z19DTH	Hose	2005-2010 Z19DTH	1
9	55 198 218 Injector 2007- • Z19DTH • Also available as exchange...	Injector	2007- Z19DTH Also available as exchange...	4
10	93 178 683 Gasket Z19DTH	Gasket	Z19DTH	4
11	93 179 050 Stud Z19DTH • M8X16-57	Stud	Z19DTH M8X16-57	4
12	93 181 871 93 177 333 Nut Z19DTH	Nut	Z19DTH	4
13	93 179 049 Washer Z19DTH	Washer	Z19DTH	4
14	93 179 048 Bracket Z19DTH	Bracket	Z19DTH	4
15	93 192 482 Distribution pipe 2008-2010 • Z19DTH	Distribution pipe	2008-2010 Z19DTH	1
17	93 185 626 Sensor 2006-2010 • Z19DTH	Sensor	2006-2010 Z19DTH	1
18	93 191 392 Fuel pipe 2008-2010 • Z19DTH • CYL.1	Fuel pipe	2008-2010 Z19DTH CYL.1	1
19	93 191 391 Fuel pipe 2008-2010 • Z19DTH • CYL.2	Fuel pipe	2008-2010 Z19DTH CYL.2	1
20	93 191 393 Fuel pipe 2008-2010 • Z19DTH • CYL.3	Fuel pipe	2008-2010 Z19DTH CYL.3	1
21	93 191 390 Fuel pipe 2008-2010 • Z19DTH • CYL.4	Fuel pipe	2008-2010 Z19DTH CYL.4	1
22	55 215 517 Pipe 2008-2010 • Z19DTH	Pipe	2008-2010 Z19DTH	1
23	93 178 829 Screw Z19DTH • M8X25	Screw	Z19DTH M8X25	2
25	93 190 054 Sleeve nut 2007-2010 • Z19DTH	Sleeve nut	2007-2010 Z19DTH	1
26	93 182 444 Stud Z19DTH • M8X12	Stud	Z19DTH M8X12	3
27	93 178 847 Screw Z19DTH • M8X35	Screw	Z19DTH M8X35	3
27	12 855 322 Hexagon screw Z19DTH • M8X50	Hexagon screw	Z19DTH M8X50	1
27	93 182 452 Screw Z19DTH • M8X110	Screw	Z19DTH M8X110	2
28	93 179 080 Washer Z19DTH	Washer	Z19DTH	1
29	93 183 254 93 184 681 Bracket Z19DTH • wiring harness	Bracket	Z19DTH wiring harness	1
30	93 177 489 Screw Z19DTH • M6X14	Screw	Z19DTH M6X14	X
31	55 560 110 Ball stud 2006-2010 • Z19DTH	Ball stud	2006-2010 Z19DTH	1
32	93 178 879 Washer Z19DTH	Washer	Z19DTH	3
33	93 178 880 Nut Z19DTH	Nut	Z19DTH	3
34	93 178 469 Screw plug Z19DTH	Screw plug	Z19DTH	1
35	55 565 846 Protecting sleeve 2007- • Z19DTH	Protecting sleeve	2007- Z19DTH	1
36	93 161 370 Part kit 2008-2010 • Z19DTH • Supplementary kit, fuel connection	Part kit	2008-2010 Z19DTH Supplementary kit, fuel connection	1
37	92 152 043 Screw Z19DTH • M6 x 16	Screw	Z19DTH M6 x 16	3
