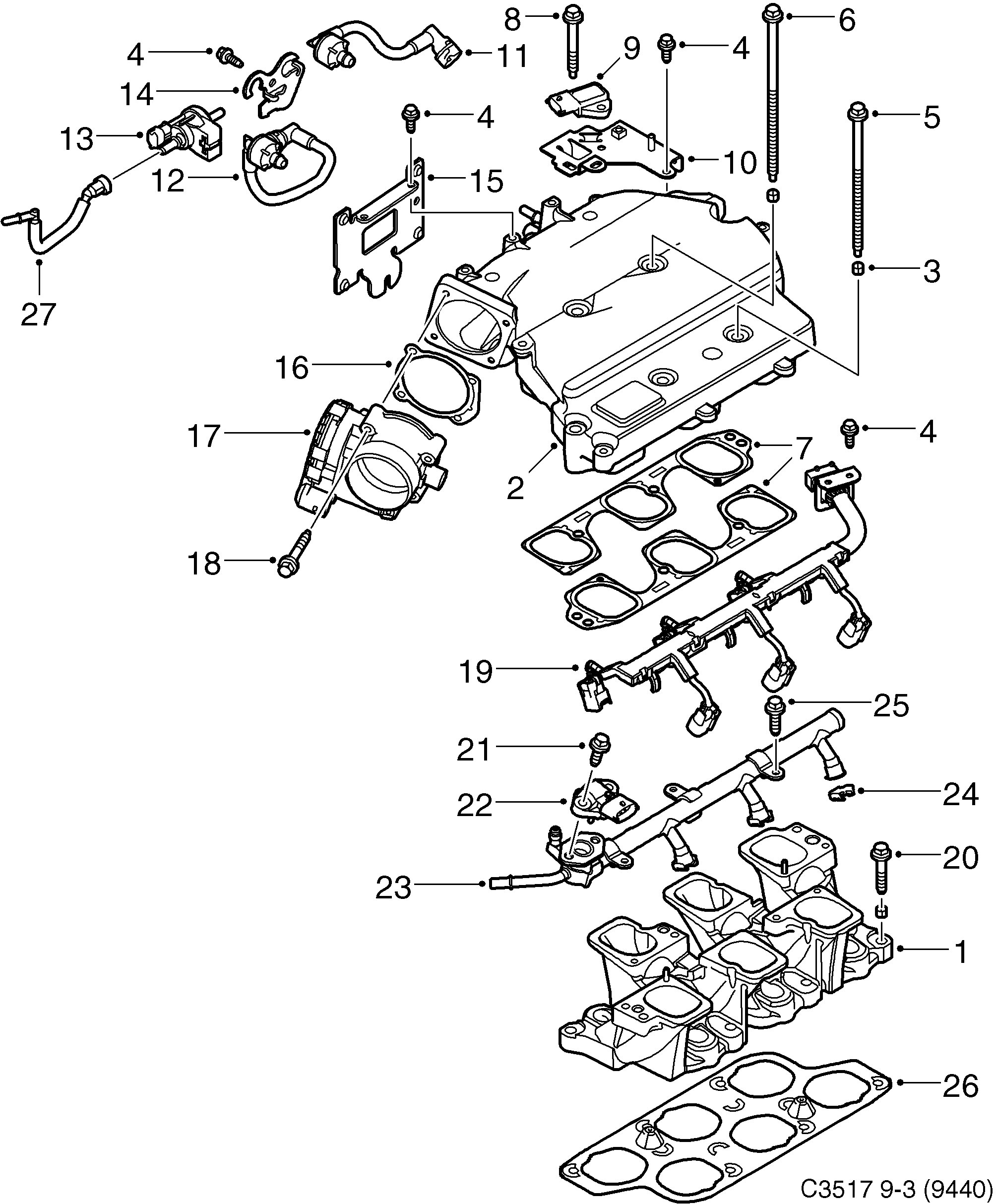

4010: Engine - Intake and exhaust system - Inlet pipe
(2006 - 2012 | B284R) | For 9-3 (9440) (2009)
100%
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 12 571 079 Intake manifold B284R • (12 57 780) | 1 | |
| 2 | 12 593 484 Intake manifold B284R | 1 | |
| 3 | 11 588 327 Sleeve B284R | 6 | |
| 4 | 11 519 966 Hexagon screw B284R | 8 | |
| 5 | 11 518 906 Hexagon screw B284R | 1 | |
| 6 | 11 588 555 Hexagon screw B284R | 2 | |
| 7 | 12 581 397 Gasket B284R | 2 | |
| 8 | 11 519 175 Hexagon screw B284R | 2 | |
| 9 | 12 575 467 Vacuum box B284R | 1 | |
| 10 | 12 593 487 Bracket B284R | 1 | |
| 11 | 12 588 555 Pipe B284R | 1 | |
| 12 | 12 593 486 Hose B284R | 1 | |
| 13 | 12 593 761 EVAP canister purge valve B284R | 1 | |
| 14 | 12 604 993 Bracket 2007-2011 • B284R | 1 | |
| 15 | 12 573 922 Bracket B284R | 1 | |
| 16 | 12 581 399 Gasket B284R | 1 | |
| 17 | 12 574 130 Throttle body B284R | 1 | |
| 18 | 11 588 718 Hexagon screw B284R | 4 | |
| 19 | 12 575 298 Cable harness B284R | 1 | |
| 20 | 11 519 170 Hexagon screw B284R | 2 | |
| 21 | Hexagon screwFuel system B284R | 2 | |
| 22 | sensorFuel system B284R | 1 | |
| 23 | Distribution pipeFuel system B284R | 1 | |
| 24 | Spring clampFuel system B284R | 6 | |
| 25 | Hexagon screwFuel system B284R | 3 | |
| 26 | 12 603 028 Gasket 2007-2011 • B284R | 1 | |
| 27 | 55 557 394 Pipe B284R • Hose EVAP CP valve | 1 |
