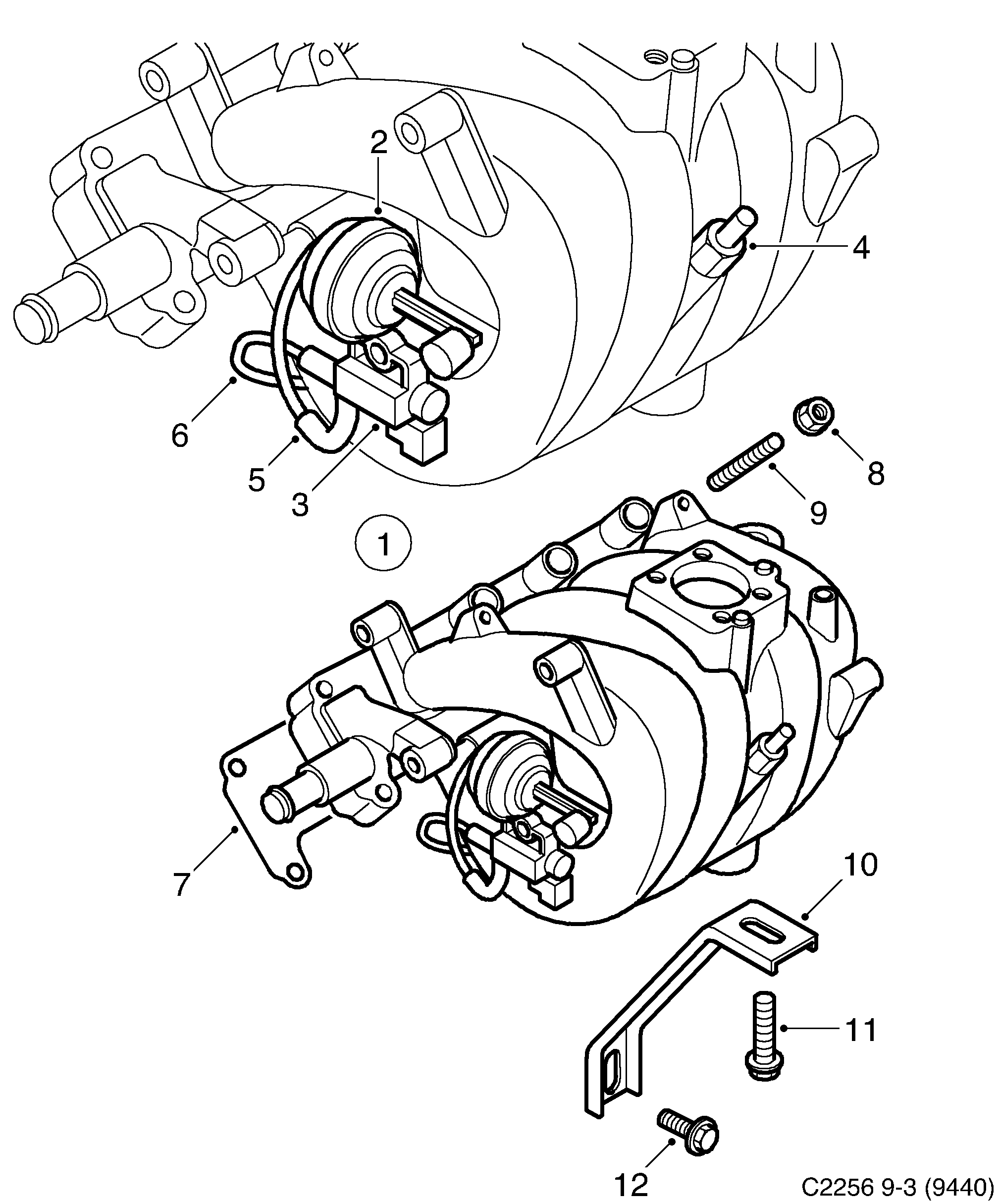

4025: Engine - Intake and exhaust system - Inlet pipe
(2004 - 2009 | PETROL) | For 9-3 (9440) (2009)
100%
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 24 405 386 Intake manifold PETROL | 1 | |
90 469 109 Nipple PETROL | 1 | ||
| 2 | 24 449 447 Vacuum box PETROL | 1 | |
| 3 | 90 542 387 Idle air control valve PETROL | 1 | |
| 4 | 90 498 943 Nipple PETROL | 1 | |
| 5 | 90 536 266 Hose PETROL | 1 | |
| 6 | 90 536 267 Hose PETROL | 1 | |
| 7 | 90 536 057 Gasket kit PETROL | 1 | |
| 8 | 90 502 418 Nut PETROL | 7 | |
| 9 | 91 58 731 Stud PETROL | 7 | |
| 10 | 24 435 867 Brace PETROL | 1 | |
| 11 | 11 085 655 Screw PETROL | 1 | |
| 12 | 11 080 457 Screw PETROL | 1 | |
Gasket kitKits PETROL |
