Question 1

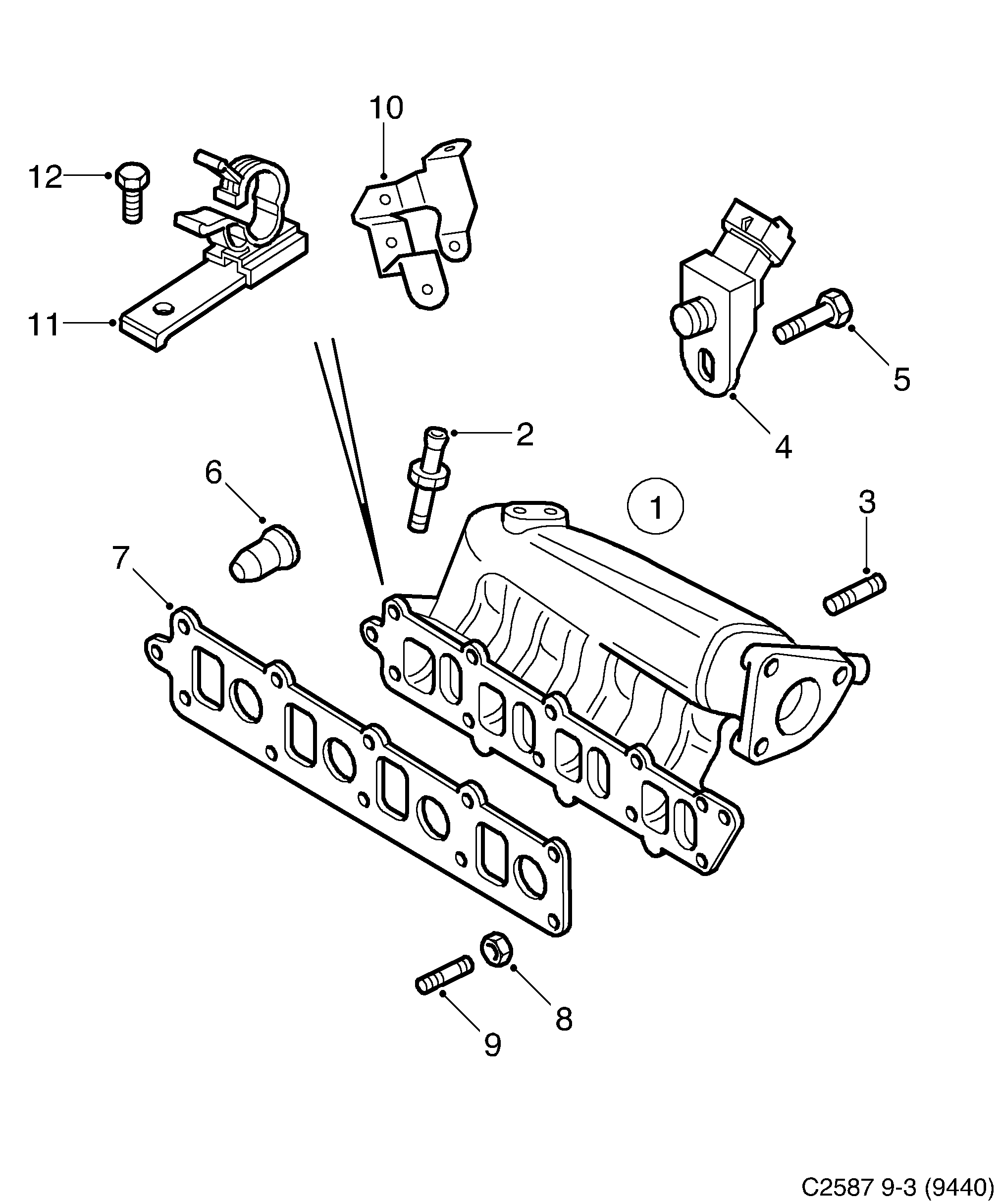

Where to find the exploded diagram for Intake and exhaust system on my Saab 9-3 (9440) 2009?

Accepted Answer

Find on Saabiste.net the complete and official interactive technical diagram for Intake and exhaust system on Saab 9-3 (9440) 2009. All components are detailed with their original SAAB OEM references.

Question 2

How do I identify a specific Saab reference in the section Intake and exhaust system?

Accepted Answer

Each part of the exploded diagram has a numbered marker linked to our parts table. You can click on the visual marker to instantly highlight the corresponding row containing the OEM part number, quantity, and chassis restrictions.

Question 3

How do I copy or use the part number of a component in section Intake and exhaust system?

Accepted Answer

Simply click on the monospace part number in the table. Saabiste will instantly copy the OEM part number to your clipboard to make it easier for you to search at your Saab parts suppliers.

Question 4

What does NLS mean in the Saab 9-3 (9440) catalog?

Accepted Answer

NLS stands for "No Longer Serviced". For these discontinued original parts in the section Intake and exhaust system, Saabiste displays, whenever available, the official replacement reference recommended by the manufacturer.

Question 5

Are the parts in this section Intake and exhaust system suitable for left-hand drive (LHD) or right-hand drive (RHD)?

Accepted Answer

Steering compatibilities are shown in the restrictions column of the parts table. You can also use the global EPC filters to hide part variants that are incompatible with your Saab's steering type (LHD/RHD).

Pos.	Part No.	Description	Usage	Qty
1	93 189 403 Intake manifold 2006-2010 • Z19DT	Intake manifold	2006-2010 Z19DT	1
2	93 194 959 Nipple 2005- • Z19DT	Nipple	2005- Z19DT	1
3	93 182 358 Stud Z19DT	Stud	Z19DT	2
4	93 171 176 Intake air temperature sensor Z19DT	Intake air temperature sensor	Z19DT	2
5	93 181 936 Screw Z19DT	Screw	Z19DT	2
6	93 178 703 Pin Z19DT	Pin	Z19DT	2
7	93 178 704 Gasket Z19DT	Gasket	Z19DT	1
9	93 178 854 Stud Z19DT	Stud	Z19DT	5
10	93 191 301 Bracket 2007-2010 • Z19DT	Bracket	2007-2010 Z19DT	1
11	93 178 855 Clip Z19DT	Clip	Z19DT	2
12	93 178 042 Screw Z19DT	Screw	Z19DT	2

Pos.	Part No.	Description	Usage	Qty
1	93 189 403 Intake manifold 2006-2010 • Z19DT	Intake manifold	2006-2010 Z19DT	1
2	93 194 959 Nipple 2005- • Z19DT	Nipple	2005- Z19DT	1
3	93 182 358 Stud Z19DT	Stud	Z19DT	2
4	93 171 176 Intake air temperature sensor Z19DT	Intake air temperature sensor	Z19DT	2
5	93 181 936 Screw Z19DT	Screw	Z19DT	2
6	93 178 703 Pin Z19DT	Pin	Z19DT	2
7	93 178 704 Gasket Z19DT	Gasket	Z19DT	1
9	93 178 854 Stud Z19DT	Stud	Z19DT	5
10	93 191 301 Bracket 2007-2010 • Z19DT	Bracket	2007-2010 Z19DT	1
11	93 178 855 Clip Z19DT	Clip	Z19DT	2
12	93 178 042 Screw Z19DT	Screw	Z19DT	2

4075: Engine - Intake and exhaust system - Inlet pipe
