Question 1

Where to find the exploded diagram for Engine bay cover on my Saab 9-3 (9440) 2009?

Accepted Answer

Find on Saabiste.net the complete and official interactive technical diagram for Engine bay cover on Saab 9-3 (9440) 2009. All components are detailed with their original SAAB OEM references.

Question 2

How do I identify a specific Saab reference in the section Engine bay cover?

Accepted Answer

Each part of the exploded diagram has a numbered marker linked to our parts table. You can click on the visual marker to instantly highlight the corresponding row containing the OEM part number, quantity, and chassis restrictions.

Question 3

How do I copy or use the part number of a component in section Engine bay cover?

Accepted Answer

Simply click on the monospace part number in the table. Saabiste will instantly copy the OEM part number to your clipboard to make it easier for you to search at your Saab parts suppliers.

Question 4

What does NLS mean in the Saab 9-3 (9440) catalog?

Accepted Answer

NLS stands for "No Longer Serviced". For these discontinued original parts in the section Engine bay cover, Saabiste displays, whenever available, the official replacement reference recommended by the manufacturer.

Question 5

Are the parts in this section Engine bay cover suitable for left-hand drive (LHD) or right-hand drive (RHD)?

Accepted Answer

Steering compatibilities are shown in the restrictions column of the parts table. You can also use the global EPC filters to hide part variants that are incompatible with your Saab's steering type (LHD/RHD).

Pos.	Part No.	Description	Usage	Qty
1	55 560 232 Cover 2006-2010 • Z19DT	Cover	2006-2010 Z19DT	1
2	92 152 043 Screw 2005-2010 • Z19DT	Screw	2005-2010 Z19DT	2
	55 570 330 Bolt 2008-2011 • Z19DTR, A19DTR	Bolt	2008-2011 Z19DTR, A19DTR	1
3	55 556 364 Engine cover 2005-2010 • Z19DTH	Engine cover	2005-2010 Z19DTH	1
3A	24 453 627 Retainer 2005-2010 • Z19DTH • Rubber bushing	Retainer	2005-2010 Z19DTH Rubber bushing	4
3B	55 562 704 Damper mat 2009-2011 • Z19DTR, A19DTR	Damper mat	2009-2011 Z19DTR, A19DTR	1
4	55 353 562 Bracket 2005-2010 • Z19DTH	Bracket	2005-2010 Z19DTH	1
5	11 900 451 Nut 2005-2010 • Z19DTH	Nut	2005-2010 Z19DTH	2
6	55 560 110 Ball stud 2006-2011 • Z19DTH, Z19DTR, A19DTR	Ball stud	2006-2011 Z19DTH, Z19DTR, A19DTR	3
7	55 568 726 Insulation 2009-2009 • Z19DTH	Insulation	2009-2009 Z19DTH	1

Pos.	Part No.	Description	Usage	Qty
1	55 560 232 Cover 2006-2010 • Z19DT	Cover	2006-2010 Z19DT	1
2	92 152 043 Screw 2005-2010 • Z19DT	Screw	2005-2010 Z19DT	2
	55 570 330 Bolt 2008-2011 • Z19DTR, A19DTR	Bolt	2008-2011 Z19DTR, A19DTR	1
3	55 556 364 Engine cover 2005-2010 • Z19DTH	Engine cover	2005-2010 Z19DTH	1
3A	24 453 627 Retainer 2005-2010 • Z19DTH • Rubber bushing	Retainer	2005-2010 Z19DTH Rubber bushing	4
3B	55 562 704 Damper mat 2009-2011 • Z19DTR, A19DTR	Damper mat	2009-2011 Z19DTR, A19DTR	1
4	55 353 562 Bracket 2005-2010 • Z19DTH	Bracket	2005-2010 Z19DTH	1
5	11 900 451 Nut 2005-2010 • Z19DTH	Nut	2005-2010 Z19DTH	2
6	55 560 110 Ball stud 2006-2011 • Z19DTH, Z19DTR, A19DTR	Ball stud	2006-2011 Z19DTH, Z19DTR, A19DTR	3
7	55 568 726 Insulation 2009-2009 • Z19DTH	Insulation	2009-2009 Z19DTH	1

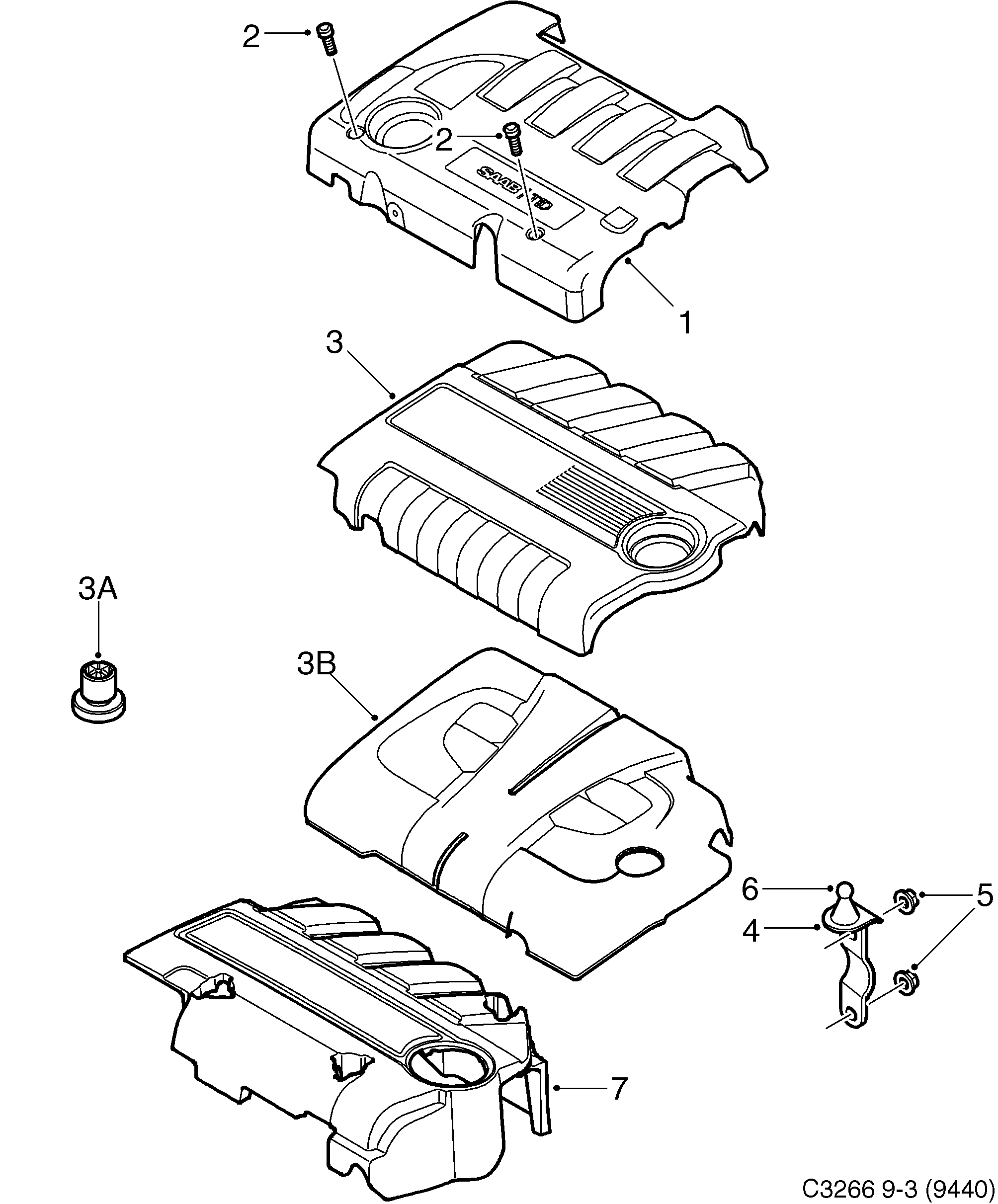

8075: Engine - Engine bay cover
