Question 1

Where to find the exploded diagram for Upholstery on my Saab 9-3 (9440) 2009?

Accepted Answer

Find on Saabiste.net the complete and official interactive technical diagram for Upholstery on Saab 9-3 (9440) 2009. All components are detailed with their original SAAB OEM references.

Question 2

How do I identify a specific Saab reference in the section Upholstery?

Accepted Answer

Each part of the exploded diagram has a numbered marker linked to our parts table. You can click on the visual marker to instantly highlight the corresponding row containing the OEM part number, quantity, and chassis restrictions.

Question 3

How do I copy or use the part number of a component in section Upholstery?

Accepted Answer

Simply click on the monospace part number in the table. Saabiste will instantly copy the OEM part number to your clipboard to make it easier for you to search at your Saab parts suppliers.

Question 4

What does NLS mean in the Saab 9-3 (9440) catalog?

Accepted Answer

NLS stands for "No Longer Serviced". For these discontinued original parts in the section Upholstery, Saabiste displays, whenever available, the official replacement reference recommended by the manufacturer.

Question 5

Are the parts in this section Upholstery suitable for left-hand drive (LHD) or right-hand drive (RHD)?

Accepted Answer

Steering compatibilities are shown in the restrictions column of the parts table. You can also use the global EPC filters to hide part variants that are incompatible with your Saab's steering type (LHD/RHD).

Pos.	Part No.	Description	Usage	Qty
3	92 151 835 Clip nut	Clip nut		2
5	92 150 427 Lock washer	Lock washer		X
9	12 830 782 Rubber spacer	Rubber spacer		14
10	92 150 065 92 151 601 Screw M6 x 16	Screw	M6 x 16	4
11	92 152 241 Clamp	Clamp		1
13	92 152 370 Screw	Screw		1
Trim colour B06 39 items				Trim colour B0639 items Click to open
Trim colour B20,B39 39 items				Trim colour B20,B3939 items Click to open
Trim colour B52 39 items				Trim colour B5239 items Click to open
Trim colour K52 39 items				Trim colour K5239 items Click to open
Trim colour L06 42 items				Trim colour L0642 items Click to open
Trim colour L20, L39 42 items				Trim colour L20, L3942 items Click to open
Trim colour L52 57 items				Trim colour L5257 items Click to open

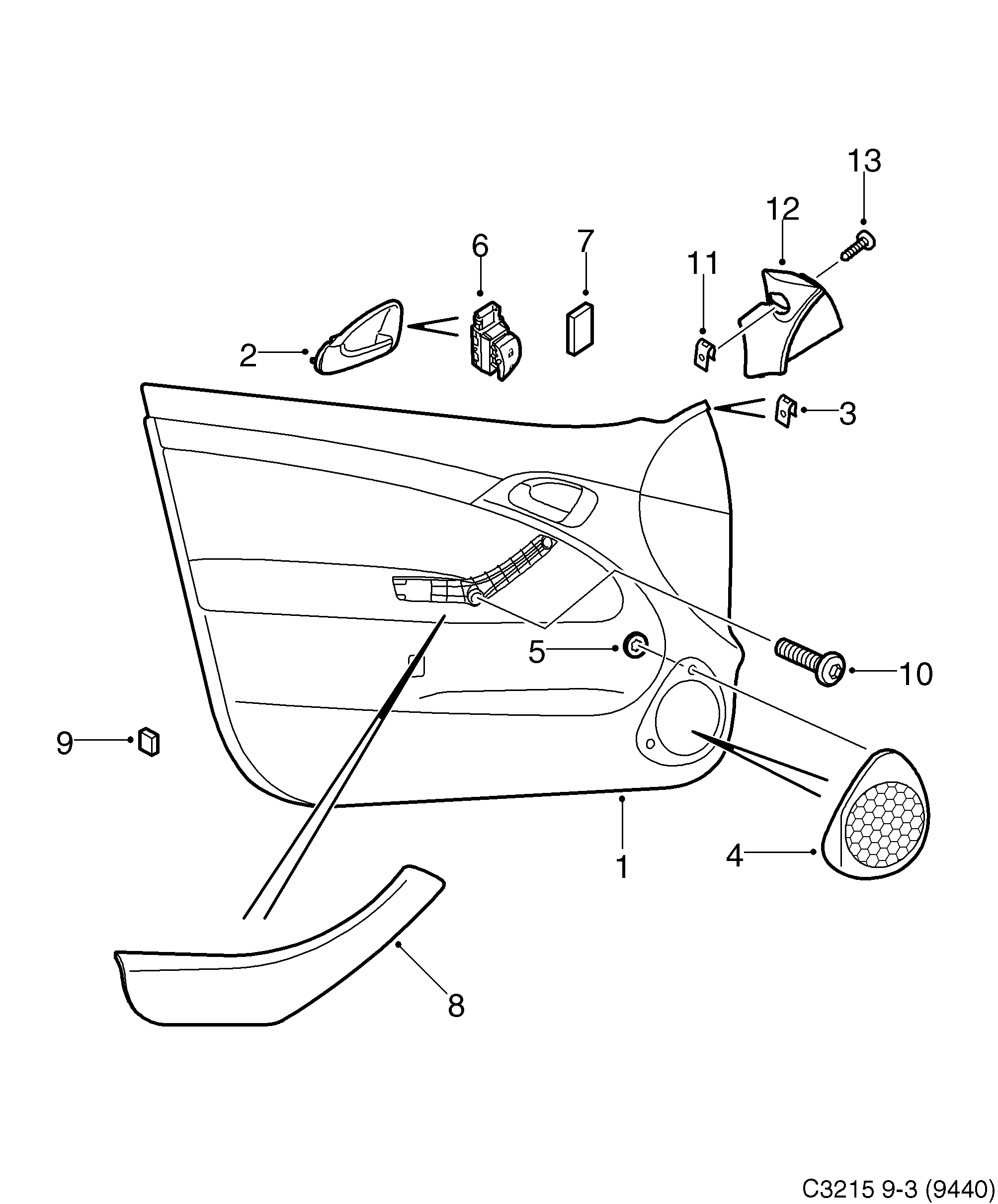

2490: Car body, internal - Upholstery - Door trim - Front door
