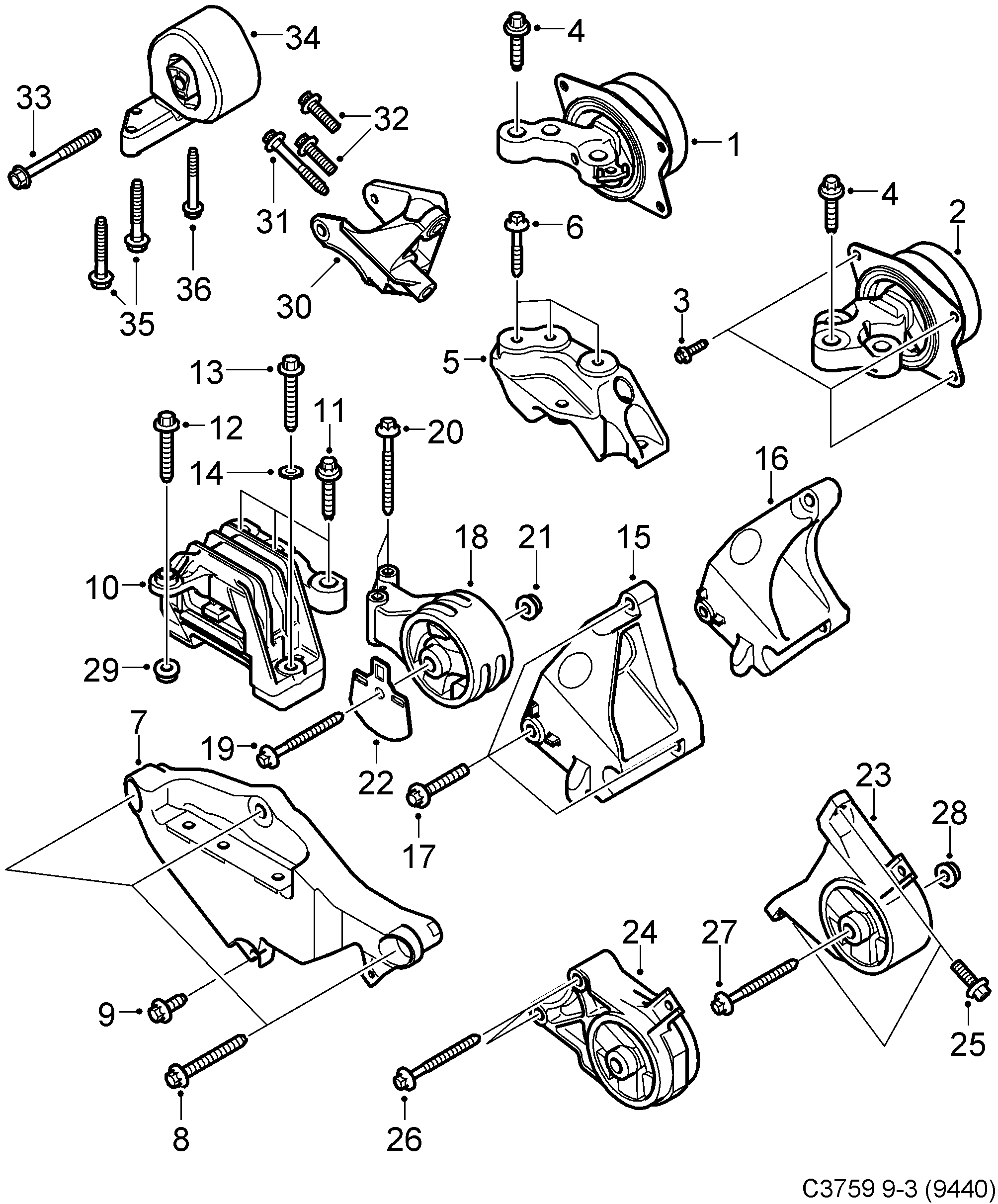

110: Engine - Short block - Engine suspension

(2006 - 2012 | B284R) | For 9-3 (9440) (2010)

100%

(N°100)

Section 110

(N°175)

Pos.	Part No.	Description	Usage	Qty
1	12 759 477 Hydro bushing B284R	Hydro bushing	B284R	1
2	13 191 542 Hydro bushing B284 • LH, \| Transmission	Hydro bushing	B284 LH, \| Transmission	1
3	92 152 134 Hexagon screw B284R	Hexagon screw	B284R	4
4	92 23 092 Hexagon screw B284R	Hexagon screw	B284R	3
5	24 436 450 Attachment bracket B284R • Less All Wheel Drive...	Attachment bracket	B284R Less All Wheel Drive...	1
5	12 777 976 Bracket 2008-2011 • B284R • With All Wheel Drive...	Bracket	2008-2011 B284R With All Wheel Drive...	1
6	11 101 131 Screw B284R	Screw	B284R	3
7	13 178 659 Bracket B284R	Bracket	B284R	1
8	11 900 208 Hexagon screw B284R	Hexagon screw	B284R	3
9	11 900 186 Hexagon screw B284R	Hexagon screw	B284R	1
10	13 183 099 Bracket B284R	Bracket	B284R	1
11	92 23 092 Hexagon screw B284R	Hexagon screw	B284R	3
12	92 152 199 Hexagon screw B284R	Hexagon screw	B284R	1
13	93 169 392 Screw 2009-2011 • B284R	Screw	2009-2011 B284R	2
14	93 169 393 Washer 2009-2011 • B284R	Washer	2009-2011 B284R	2
15	24 459 821 Motor bracket B284R • Transmission Rear	Motor bracket	B284R Transmission Rear	1
16	91 91 126 Attachment bracket B284R	Attachment bracket	B284R	1
17	11 099 201 Hexagon screw B284R	Hexagon screw	B284R	3
18	91 56 932 Torque rod B284R • Transmission Rear	Torque rod	B284R Transmission Rear	1
19	11 102 241 Screw B284R	Screw	B284R	1
20	11 102 251 Screw B284R	Screw	B284R	2
21	90 576 769 Nut B284R	Nut	B284R	2
22	91 56 952 Heat shield B284R	Heat shield	B284R	1
23	13 191 539 Motor bracket B284R • Transmission Front	Motor bracket	B284R Transmission Front	1
23	12 777 977 Bushing 2008-2011 • B284R • Transmission Front With All...	Bushing	2008-2011 B284R Transmission Front With All...	1
24	91 56 939 Bushing B284R	Bushing	B284R	1
25	11 101 521 Screw B284R	Screw	B284R	3
26	11 101 141 Hexagon screw B284R	Hexagon screw	B284R	2
27	13 198 721 Screw B284R	Screw	B284R	1
28	11 094 464 Flange nut B284R	Flange nut	B284R	1
29	11 900 441 Nut B284R	Nut	B284R	1
30	12 777 975 Mounting bracket 2008-2011 • B284R • With All Wheel Drive...	Mounting bracket	2008-2011 B284R With All Wheel Drive...	1
31	11 101 141 Hexagon screw 2008-2011 • B284R • M12X70 \| With All...	Hexagon screw	2008-2011 B284R M12X70 \| With All...	1
32	11 101 131 Screw 2008-2011 • B284R • M12X35 \| With All...	Screw	2008-2011 B284R M12X35 \| With All...	2
33	11 102 241 Screw 2008-2011 • B284R • M12X120 \| With All...	Screw	2008-2011 B284R M12X120 \| With All...	1
34	12 777 974 Vibration damper 2008-2011 • B284R • With All Wheel Drive...	Vibration damper	2008-2011 B284R With All Wheel Drive...	1
35	11 609 598 Hexagon screw 2008-2011 • B284R • M12X75 \| With All...	Hexagon screw	2008-2011 B284R M12X75 \| With All...	2
36	11 588 748 Hexagon screw 2008-2011 • B284R • M10X80 \| With All...	Hexagon screw	2008-2011 B284R M10X80 \| With All...	1
