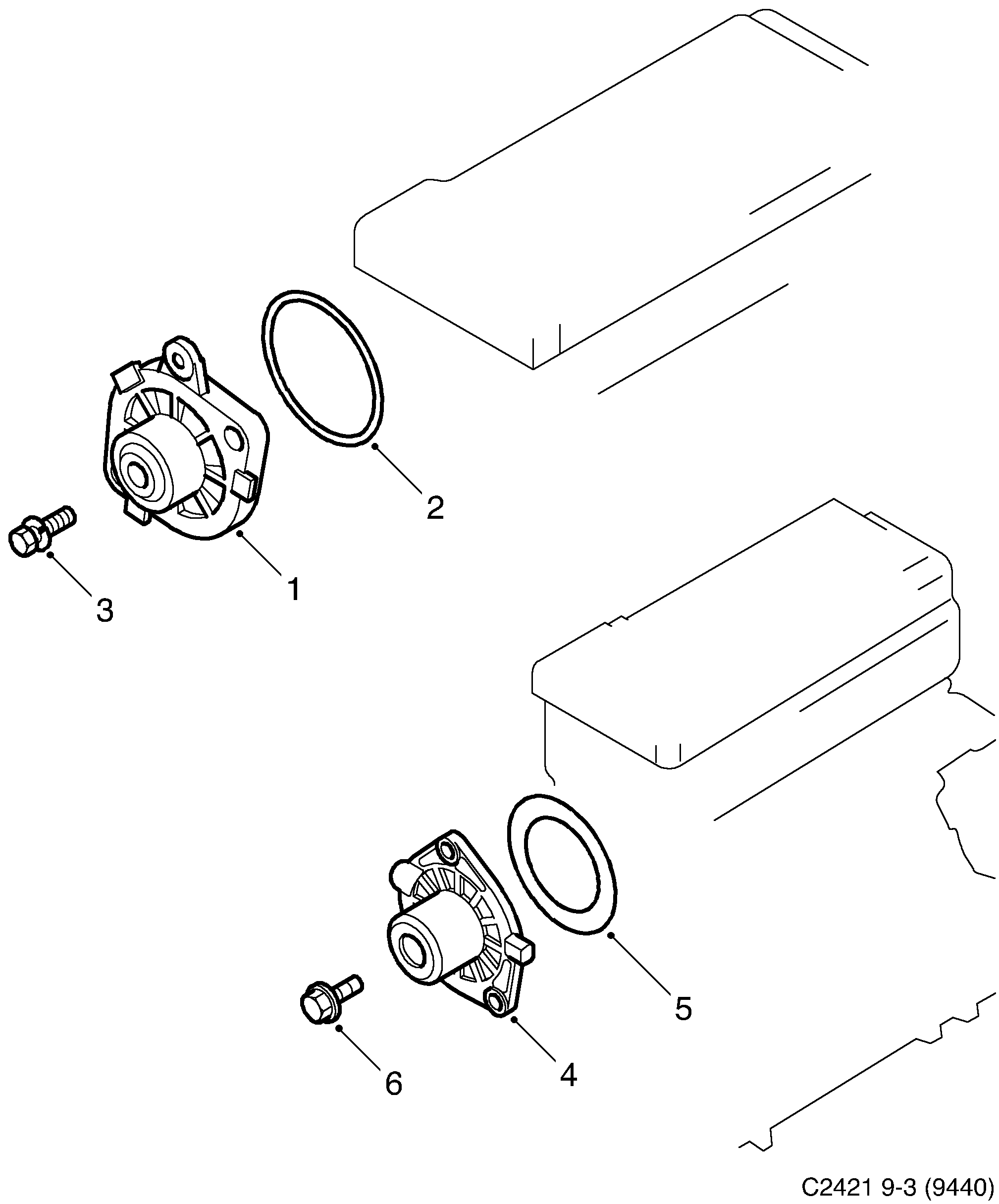

Pos.	Part No.	Description	Usage	Qty
1	93 178 713 Coolant pump 2005-2010 • Z19DT	Coolant pump	2005-2010 Z19DT	1
2	93 178 714 Gasket 2005-2010 • Z19DT	Gasket	2005-2010 Z19DT	1
3	93 178 715 Screw 2005-2010 • Z19DT	Screw	2005-2010 Z19DT	2
4	55 568 637 Water pump 2001- • Z19DTH, Z19DTR, A19DTR	Water pump	2001- Z19DTH, Z19DTR, A19DTR	1
5	93 179 115 Gasket Z19DTH, Z19DTR, A19DTR	Gasket	Z19DTH, Z19DTR, A19DTR	1
6	93 179 116 Screw Z19DTH, Z19DTR, A19DTR	Screw	Z19DTH, Z19DTR, A19DTR	1

Pos.	Part No.	Description	Usage	Qty
1	93 178 713 Coolant pump 2005-2010 • Z19DT	Coolant pump	2005-2010 Z19DT	1
2	93 178 714 Gasket 2005-2010 • Z19DT	Gasket	2005-2010 Z19DT	1
3	93 178 715 Screw 2005-2010 • Z19DT	Screw	2005-2010 Z19DT	2
4	55 568 637 Water pump 2001- • Z19DTH, Z19DTR, A19DTR	Water pump	2001- Z19DTH, Z19DTR, A19DTR	1
5	93 179 115 Gasket Z19DTH, Z19DTR, A19DTR	Gasket	Z19DTH, Z19DTR, A19DTR	1
6	93 179 116 Screw Z19DTH, Z19DTR, A19DTR	Screw	Z19DTH, Z19DTR, A19DTR	1

5860: Engine - Cooling system - Coolant pump
