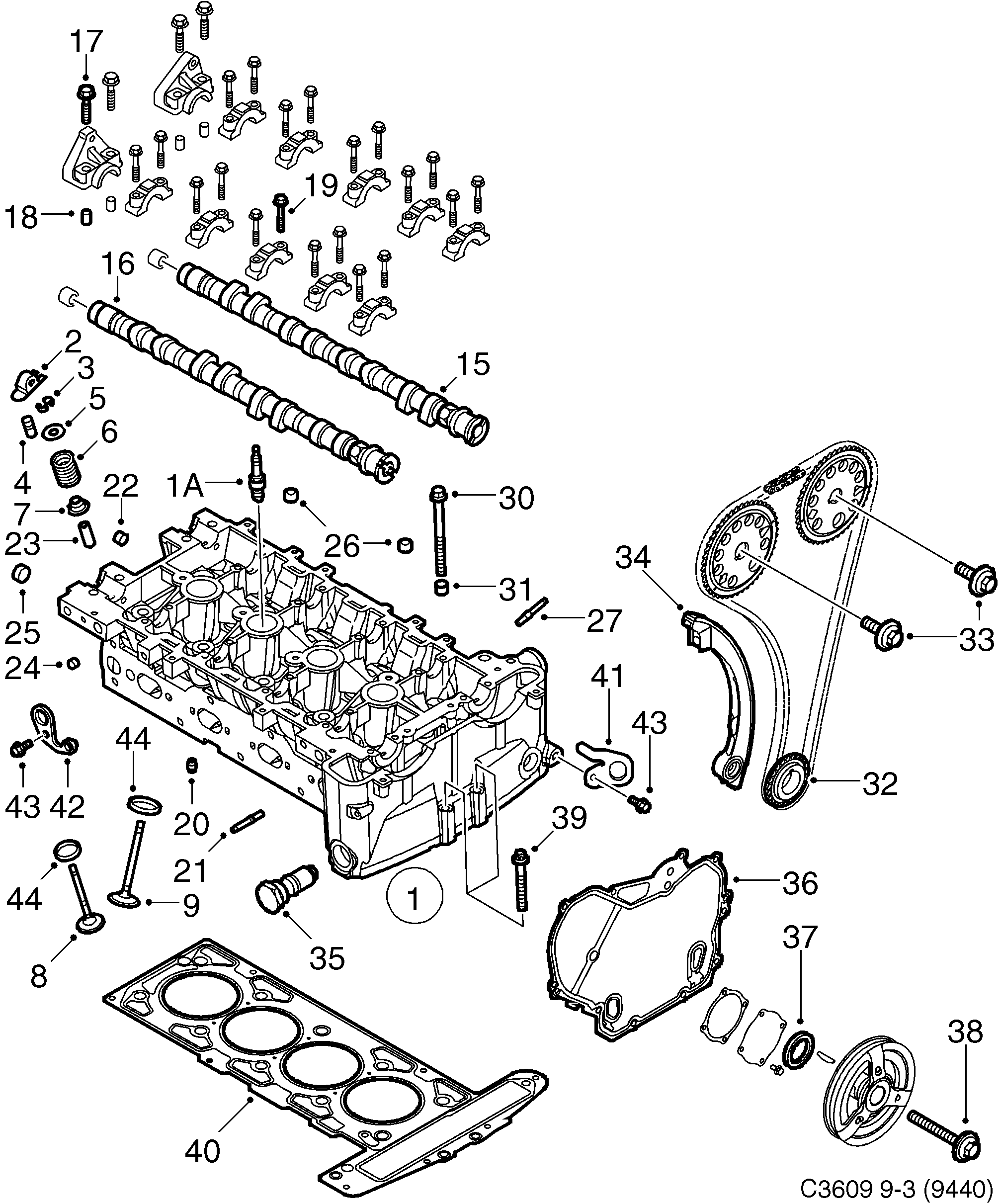

200: Engine - Short block - Cylinder head

(2003 - 2012 | PETROL) | For 9-3 (9440) (2011)

100%

(N°185)

Section 200

(N°210)

Pos.	Part No.	Description	Usage	Qty
1	55 560 710 Cylinder head 2007-2011 • B207E, B207L • Assy	Cylinder head	2007-2011 B207E, B207L Assy	1
1	55 560 711 Cylinder head 2007-2011 • B207R • Assy	Cylinder head	2007-2011 B207R Assy	1
1	55 564 804 Cylinder head 2007-2011 • PETROL • BioPower \| Assy	Cylinder head	2007-2011 PETROL BioPower \| Assy	1
1	12 632 082 Cylinder head 2010-2011 • B207R • Assy Flex Fuel	Cylinder head	2010-2011 B207R Assy Flex Fuel	1
1A	55 571 391 Spark plug 2008-2011 • PETROL	Spark plug	2008-2011 PETROL	4
2	12 565 203 Rocker arm 2004-2011 • PETROL	Rocker arm	2004-2011 PETROL	16
3	90 354 648 Valve cone PETROL	Valve cone	PETROL	32
4	91 94 698 Valve lifter PETROL	Valve lifter	PETROL	16
5	90 537 243 Washer PETROL	Washer	PETROL	16
6	90 537 032 Spring PETROL	Spring	PETROL	16
7	90 537 241 Seal PETROL	Seal	PETROL	16
8	12 791 961 Exhaust valve PETROL	Exhaust valve	PETROL	8
8	12 597 371 Exhaust valve 2007-2011 • PETROL • BioPower	Exhaust valve	2007-2011 PETROL BioPower	8
9	55 192 156 Inlet valve 2005-2011 • PETROL	Inlet valve	2005-2011 PETROL	8
9	55 563 529 Inlet valve 2007-2011 • PETROL • BioPower	Inlet valve	2007-2011 PETROL BioPower	8
15	55 560 715 Camshaft 2007-2011 • B207E, B207L • Intake	Camshaft	2007-2011 B207E, B207L Intake	1
15	55 560 718 Camshaft 2007-2011 • B207R • Intake	Camshaft	2007-2011 B207R Intake	1
16	55 560 716 Camshaft 2007-2011 • B207E, B207L • Exhaust	Camshaft	2007-2011 B207E, B207L Exhaust	1
16	55 560 717 Camshaft 2007-2011 • B207R • Exhaust	Camshaft	2007-2011 B207R Exhaust	1
17	11 518 051 Screw PETROL	Screw	PETROL	4
18	90 537 104 Guide sleeve PETROL	Guide sleeve	PETROL	4
19	11 588 991 Torx screw PETROL • M6	Torx screw	PETROL M6	20
20	90 537 983 Oil jet PETROL	Oil jet	PETROL	1
21	24 418 771 Stud PETROL	Stud	PETROL	9
22	11 101 962 Plug 2007-2011 • PETROL	Plug	2007-2011 PETROL	1
23	90 537 248 Valve guide PETROL	Valve guide	PETROL	16
23	24 406 570 Valve guide 2006-2011 • PETROL • Oversize.	Valve guide	2006-2011 PETROL Oversize.	16
24	11 101 951 Plug PETROL	Plug	PETROL	1
24	11 095 512 Screw plug 2010-2011 • B207R, B207E • Flex Fuel	Screw plug	2010-2011 B207R, B207E Flex Fuel	1
25	55 561 057 Screw plug 2007-2011 • PETROL	Screw plug	2007-2011 PETROL	1
26	11 101 971 Plug PETROL	Plug	PETROL	1
27	11 518 074 Stud PETROL	Stud	PETROL	2
30	90 537 691 Screw PETROL	Screw	PETROL	10
31	90 537 102 Guide sleeve PETROL	Guide sleeve	PETROL	2
32	24 424 758 Chain gear PETROL	Chain gear	PETROL	1
33	90 537 451 Screw PETROL • Chain gear	Screw	PETROL Chain gear	2
34	24 449 448 Chain control PETROL	Chain control	PETROL	1
35	55 352 127 12 608 580 Chain tensioner 2007-2011 • PETROL	Chain tensioner	2007-2011 PETROL	1
36	24 435 052 Gasket PETROL • Timing gear casing	Gasket	PETROL Timing gear casing	1
37	90 571 925 Seal PETROL • Crankshaft	Seal	PETROL Crankshaft	1
38	11 589 123 Hexagon screw 2007-2011 • PETROL • Pulley	Hexagon screw	2007-2011 PETROL Pulley	1
39	11 589 328 Screw 2006-2011 • PETROL	Screw	2006-2011 PETROL	4
40	93 175 913 Gasket PETROL	Gasket	PETROL	1
41	12 795 716 Lifting eye PETROL • Front	Lifting eye	PETROL Front	1
42	12 789 327 Lifting eye PETROL • Rear	Lifting eye	PETROL Rear	1
43	92 152 205 Screw PETROL	Screw	PETROL	2
