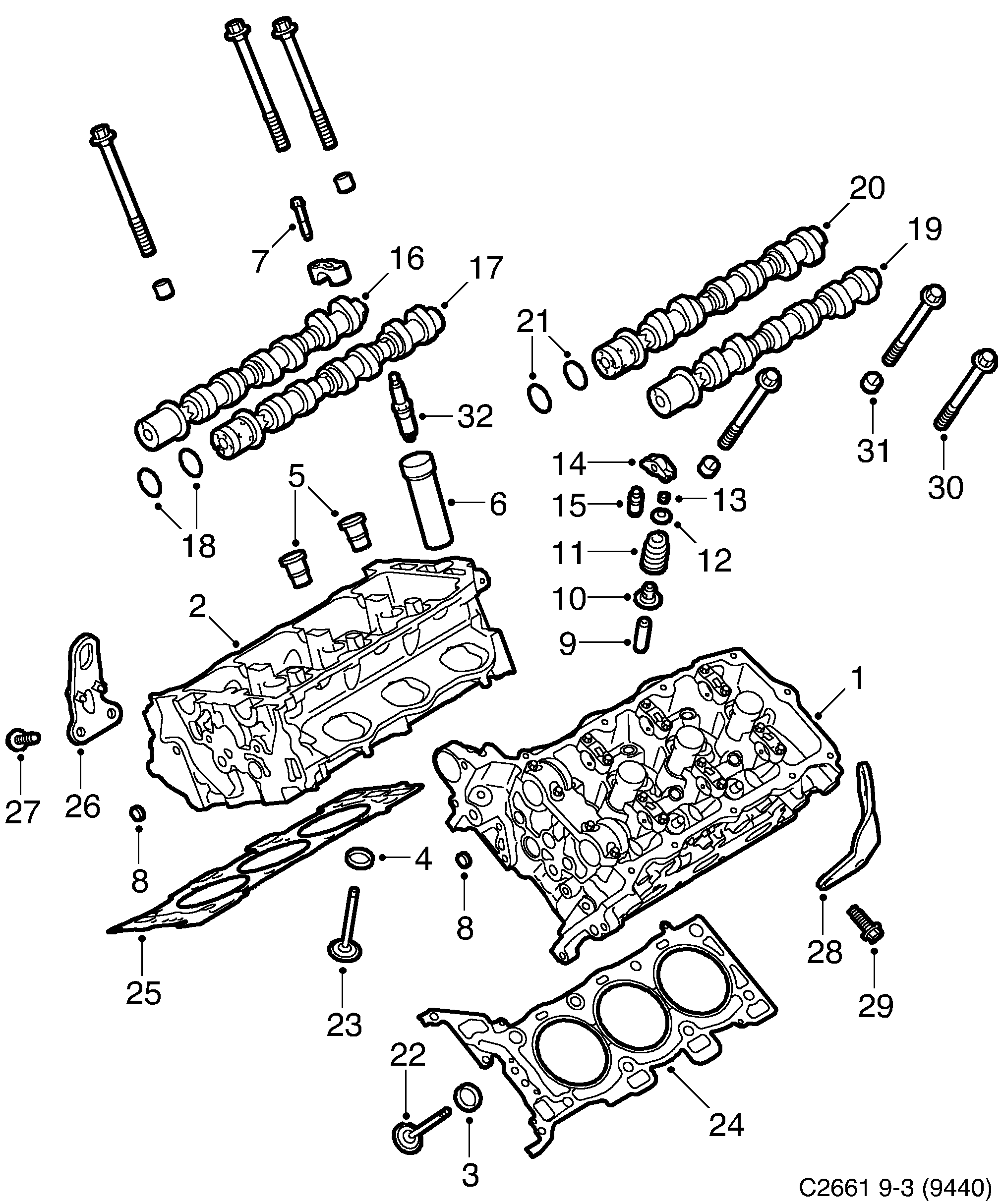

210: Engine - Short block - Cylinder head

(2006 - 2012 | B284) | For 9-3 (9440) (2011)

100%

(N°200)

Section 210

(N°285)

Pos.	Part No.	Description	Usage	Qty
1	12 566 823 12 607 538 Cylinder head 70 • Front.	Cylinder head	70 Front.	1
1	12 607 538 Cylinder head 70 • Front.	Cylinder head	70 Front.	1
2	12 566 814 12 607 540 Cylinder head 70 • Rear.	Cylinder head	70 Rear.	1
2	12 607 540 Cylinder head 70 • Rear.	Cylinder head	70 Rear.	1
3	12 575 345 Valve seat ring 70 • Intake	Valve seat ring	70 Intake	6
4	12 571 132 Valve seat ring 70 • Exhaust	Valve seat ring	70 Exhaust	6
5	11 561 751 Cap 70	Cap	70	2
6	12 578 361 Insulating sleeve 70	Insulating sleeve	70	3
7	11 518 856 Hexagon screw 70	Hexagon screw	70	16
8	11 562 127 Plug 2007-2011 • 70	Plug	2007-2011 70	2
9	12 571 761 Valve guide 70	Valve guide	70	12
10	12 565 836 Valve stem seal 70	Valve stem seal	70	24
11	12 575 355 Valve spring 70	Valve spring	70	12
12	12 575 196 Disc 70	Disc	70	24
13	12 575 197 Valve cone 70	Valve cone	70	24
14	24 100 294 Rocker arm 70	Rocker arm	70	12
15	91 94 698 Valve lifter 70	Valve lifter	70	12
17	12 620 460 Camshaft 2009-2011 • 70 • Intake Front.	Camshaft	2009-2011 70 Intake Front.	1
18	12 574 477 Scalloped seal ring 70	Scalloped seal ring	70	2
20	12 620 462 Camshaft 2009-2011 • 70 • Intake Rear.	Camshaft	2009-2011 70 Intake Rear.	1
21	12 574 477 Scalloped seal ring 70	Scalloped seal ring	70	2
22	12 575 352 Inlet valve 70	Inlet valve	70	6
22	12 584 763 Inlet valve 70 • +0.075	Inlet valve	70 +0.075	6
23	12 575 356 Exhaust valve 70	Exhaust valve	70	6
23	12 584 760 Exhaust valve 70 • +0.075	Exhaust valve	70 +0.075	6
24	12 605 844 Cylinder head gasket 2007-2011 • 70 • Front.	Cylinder head gasket	2007-2011 70 Front.	1
25	12 605 845 Cylinder head gasket 2007-2011 • 70 • Rear.	Cylinder head gasket	2007-2011 70 Rear.	1
26	12 798 365 Shackle 70 • Rear.	Shackle	70 Rear.	1
27	24 447 549 Screw 70	Screw	70	2
28	55 561 157 Shackle 70 • Front.	Shackle	70 Front.	1
29	11 588 739 Hexagon screw 70	Hexagon screw	70	2
30	11 518 863 Screw 70 • M11 X 152	Screw	70 M11 X 152	16
30	11 588 734 Screw 70 • M8 X 90	Screw	70 M8 X 90	1
31	12 558 081 Centering sleeve 70	Centering sleeve	70	4
	12 580 965 Delivery valve 70	Delivery valve	70	3
