Question 1

Where to find the exploded diagram for Fuel system on my Saab 9-3 (9440) 2011?

Accepted Answer

Find on Saabiste.net the complete and official interactive technical diagram for Fuel system on Saab 9-3 (9440) 2011. All components are detailed with their original SAAB OEM references.

Question 2

How do I identify a specific Saab reference in the section Fuel system?

Accepted Answer

Each part of the exploded diagram has a numbered marker linked to our parts table. You can click on the visual marker to instantly highlight the corresponding row containing the OEM part number, quantity, and chassis restrictions.

Question 3

How do I copy or use the part number of a component in section Fuel system?

Accepted Answer

Simply click on the monospace part number in the table. Saabiste will instantly copy the OEM part number to your clipboard to make it easier for you to search at your Saab parts suppliers.

Question 4

What does NLS mean in the Saab 9-3 (9440) catalog?

Accepted Answer

NLS stands for "No Longer Serviced". For these discontinued original parts in the section Fuel system, Saabiste displays, whenever available, the official replacement reference recommended by the manufacturer.

Question 5

Are the parts in this section Fuel system suitable for left-hand drive (LHD) or right-hand drive (RHD)?

Accepted Answer

Steering compatibilities are shown in the restrictions column of the parts table. You can also use the global EPC filters to hide part variants that are incompatible with your Saab's steering type (LHD/RHD).

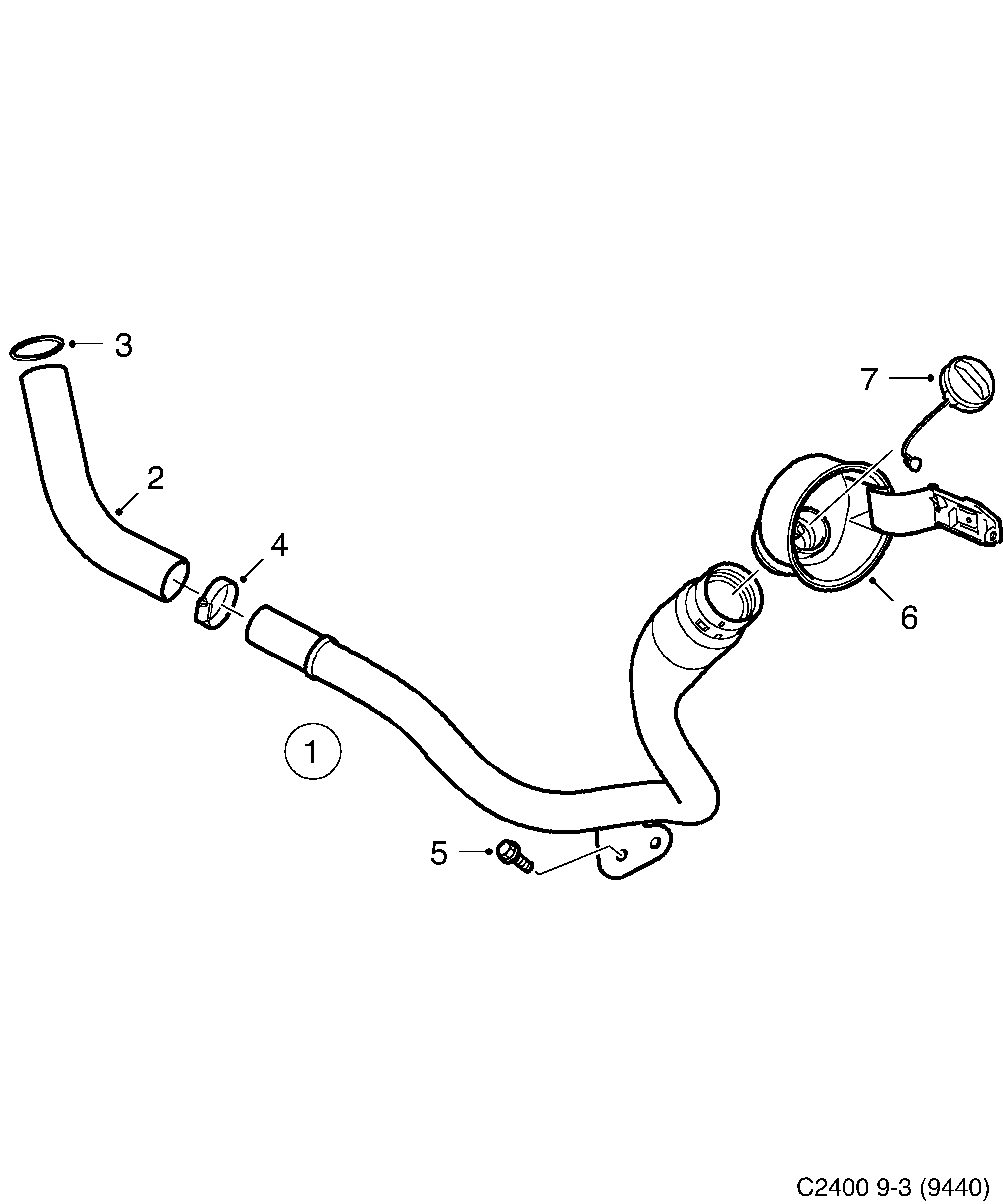

Pos.	Part No.	Description	Usage	Qty
2	24 435 113 Hose A19DTR	Hose	A19DTR	1
3	93 178 164 Hose clamp 2006-2011 • A19DTR	Hose clamp	2006-2011 A19DTR	1
4	24 442 223 93 178 164 Hose clamp A19DTR	Hose clamp	A19DTR	1
5	92 151 948 Screw 2007-2011 • A19DTR	Screw	2007-2011 A19DTR	1
6	Protective capBody shell A19DTR	Protective capBody shell A19DTR			1

Pos.	Part No.	Description	Usage	Qty
2	24 435 113 Hose A19DTR	Hose	A19DTR	1
3	93 178 164 Hose clamp 2006-2011 • A19DTR	Hose clamp	2006-2011 A19DTR	1
4	24 442 223 93 178 164 Hose clamp A19DTR	Hose clamp	A19DTR	1
5	92 151 948 Screw 2007-2011 • A19DTR	Screw	2007-2011 A19DTR	1
6	Protective capBody shell A19DTR	Protective capBody shell A19DTR			1

3250: Engine - Fuel system - Filler pipe
