Question 1

Where to find the exploded diagram for Fuel system on my Saab 9-3 (9440) 2011?

Accepted Answer

Find on Saabiste.net the complete and official interactive technical diagram for Fuel system on Saab 9-3 (9440) 2011. All components are detailed with their original SAAB OEM references.

Question 2

How do I identify a specific Saab reference in the section Fuel system?

Accepted Answer

Each part of the exploded diagram has a numbered marker linked to our parts table. You can click on the visual marker to instantly highlight the corresponding row containing the OEM part number, quantity, and chassis restrictions.

Question 3

How do I copy or use the part number of a component in section Fuel system?

Accepted Answer

Simply click on the monospace part number in the table. Saabiste will instantly copy the OEM part number to your clipboard to make it easier for you to search at your Saab parts suppliers.

Question 4

What does NLS mean in the Saab 9-3 (9440) catalog?

Accepted Answer

NLS stands for "No Longer Serviced". For these discontinued original parts in the section Fuel system, Saabiste displays, whenever available, the official replacement reference recommended by the manufacturer.

Question 5

Are the parts in this section Fuel system suitable for left-hand drive (LHD) or right-hand drive (RHD)?

Accepted Answer

Steering compatibilities are shown in the restrictions column of the parts table. You can also use the global EPC filters to hide part variants that are incompatible with your Saab's steering type (LHD/RHD).

Pos.	Part No.	Description	Usage	Qty
1	12 574 134 Distribution pipe 70	Distribution pipe	70	1
2	12 581 682 Injection valve 70	Injection valve	70	6
7	90 541 911 O-ring 70	O-ring	70	X
3	12 571 751 Spring clamp 70	Spring clamp	70	6
4	11 519 967 Hexagon screw 70	Hexagon screw	70	2
5	12 582 232 Sensor 70	Sensor	70	1
6	11 519 968 Hexagon screw 70	Hexagon screw	70	3

Pos.	Part No.	Description	Usage	Qty
1	12 574 134 Distribution pipe 70	Distribution pipe	70	1
2	12 581 682 Injection valve 70	Injection valve	70	6
7	90 541 911 O-ring 70	O-ring	70	X
3	12 571 751 Spring clamp 70	Spring clamp	70	6
4	11 519 967 Hexagon screw 70	Hexagon screw	70	2
5	12 582 232 Sensor 70	Sensor	70	1
6	11 519 968 Hexagon screw 70	Hexagon screw	70	3

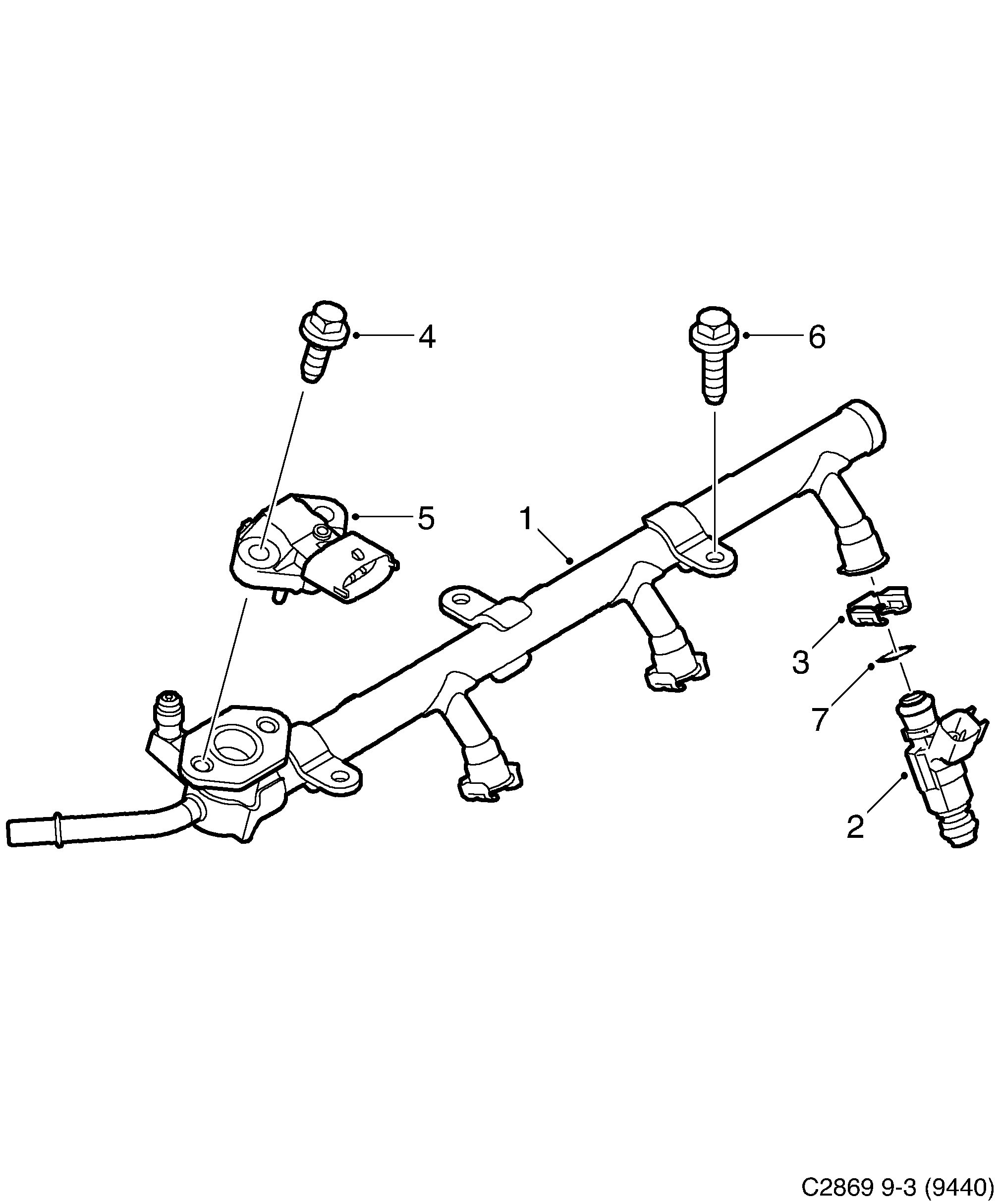

3460: Engine - Fuel system - Fuel rail
