Question 1

Where to find the exploded diagram for Intake and exhaust system on my Saab 9-3 (9440) 2011?

Accepted Answer

Find on Saabiste.net the complete and official interactive technical diagram for Intake and exhaust system on Saab 9-3 (9440) 2011. All components are detailed with their original SAAB OEM references.

Question 2

How do I identify a specific Saab reference in the section Intake and exhaust system?

Accepted Answer

Each part of the exploded diagram has a numbered marker linked to our parts table. You can click on the visual marker to instantly highlight the corresponding row containing the OEM part number, quantity, and chassis restrictions.

Question 3

How do I copy or use the part number of a component in section Intake and exhaust system?

Accepted Answer

Simply click on the monospace part number in the table. Saabiste will instantly copy the OEM part number to your clipboard to make it easier for you to search at your Saab parts suppliers.

Question 4

What does NLS mean in the Saab 9-3 (9440) catalog?

Accepted Answer

NLS stands for "No Longer Serviced". For these discontinued original parts in the section Intake and exhaust system, Saabiste displays, whenever available, the official replacement reference recommended by the manufacturer.

Question 5

Are the parts in this section Intake and exhaust system suitable for left-hand drive (LHD) or right-hand drive (RHD)?

Accepted Answer

Steering compatibilities are shown in the restrictions column of the parts table. You can also use the global EPC filters to hide part variants that are incompatible with your Saab's steering type (LHD/RHD).

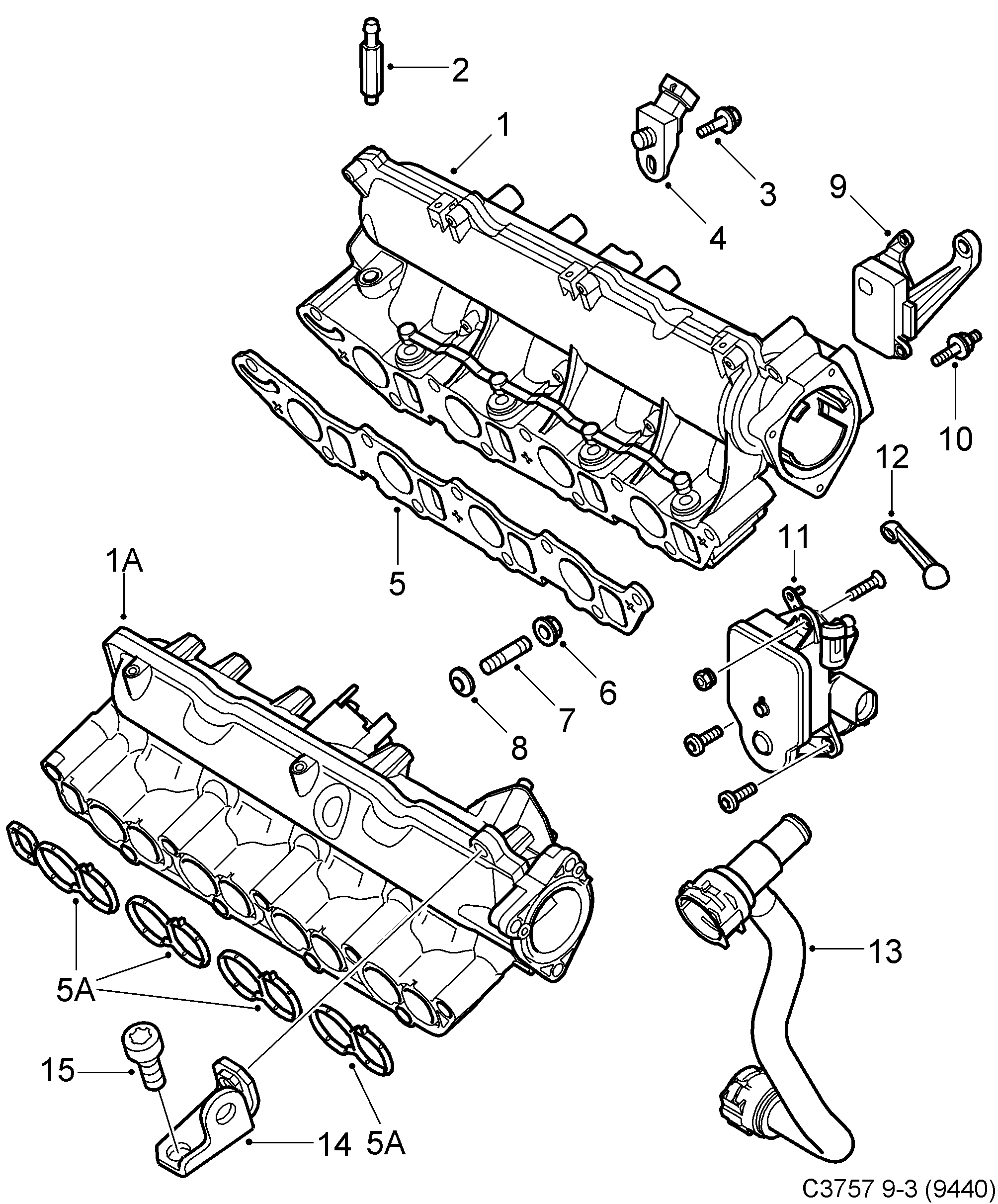

Pos.	Part No.	Description	Usage	Qty
1A	93 191 642 55 229 190 Intake manifold 2008-2011 • Z19DTR	Intake manifold	2008-2011 Z19DTR	1
1A	93 167 076 55 229 190 Intake manifold 2008-2011 • Z19DTR, A19DTR	Intake manifold	2008-2011 Z19DTR, A19DTR	1
3	93 178 850 Screw A19DTR	Screw	A19DTR	2
4	93 191 643 Vacuum sensor 2008-2011 • Z19DTR, A19DTR	Vacuum sensor	2008-2011 Z19DTR, A19DTR	2
5A	93 167 215 Gasket Z19DTR, A19DTR	Gasket	Z19DTR, A19DTR	1
6	93 177 333 Nut Z19DTR, A19DTR	Nut	Z19DTR, A19DTR	9
7	93 179 065 Stud A19DTR	Stud	A19DTR	9
13	93 191 647 55 224 775 Hose 2008-2011 • Z19DTR, A19DTR	Hose	2008-2011 Z19DTR, A19DTR	1
14	55 214 102 Bracket 2009-2011 • Z19DTR, A19DTR	Bracket	2009-2011 Z19DTR, A19DTR	1
15	55 214 613 Screw 2009-2011 • Z19DTR, A19DTR	Screw	2009-2011 Z19DTR, A19DTR	1

Pos.	Part No.	Description	Usage	Qty
1A	93 191 642 55 229 190 Intake manifold 2008-2011 • Z19DTR	Intake manifold	2008-2011 Z19DTR	1
1A	93 167 076 55 229 190 Intake manifold 2008-2011 • Z19DTR, A19DTR	Intake manifold	2008-2011 Z19DTR, A19DTR	1
3	93 178 850 Screw A19DTR	Screw	A19DTR	2
4	93 191 643 Vacuum sensor 2008-2011 • Z19DTR, A19DTR	Vacuum sensor	2008-2011 Z19DTR, A19DTR	2
5A	93 167 215 Gasket Z19DTR, A19DTR	Gasket	Z19DTR, A19DTR	1
6	93 177 333 Nut Z19DTR, A19DTR	Nut	Z19DTR, A19DTR	9
7	93 179 065 Stud A19DTR	Stud	A19DTR	9
13	93 191 647 55 224 775 Hose 2008-2011 • Z19DTR, A19DTR	Hose	2008-2011 Z19DTR, A19DTR	1
14	55 214 102 Bracket 2009-2011 • Z19DTR, A19DTR	Bracket	2009-2011 Z19DTR, A19DTR	1
15	55 214 613 Screw 2009-2011 • Z19DTR, A19DTR	Screw	2009-2011 Z19DTR, A19DTR	1

4085: Engine - Intake and exhaust system - Inlet pipe
