Pos.	Part No.	Description	Usage	Qty
1	12 800 599 Charge air cooler 70	Charge air cooler	70	1
2	13 247 382 Air duct 70	Air duct	70	1
3	55 353 733 Hose clamp 70	Hose clamp	70	2
4	11 093 961 Screw 70	Screw	70	4
5	92 02 831 Screw 70	Screw	70	2
6	12 790 720 Charge air pipe 70	Charge air pipe	70	1
7	24 468 104 Hose clamp 70	Hose clamp	70	2
8	55 556 314 Bracket 70	Bracket	70	1
9	12 790 723 Charge air pipe 70	Charge air pipe	70	1

Pos.	Part No.	Description	Usage	Qty
1	12 800 599 Charge air cooler 70	Charge air cooler	70	1
2	13 247 382 Air duct 70	Air duct	70	1
3	55 353 733 Hose clamp 70	Hose clamp	70	2
4	11 093 961 Screw 70	Screw	70	4
5	92 02 831 Screw 70	Screw	70	2
6	12 790 720 Charge air pipe 70	Charge air pipe	70	1
7	24 468 104 Hose clamp 70	Hose clamp	70	2
8	55 556 314 Bracket 70	Bracket	70	1
9	12 790 723 Charge air pipe 70	Charge air pipe	70	1

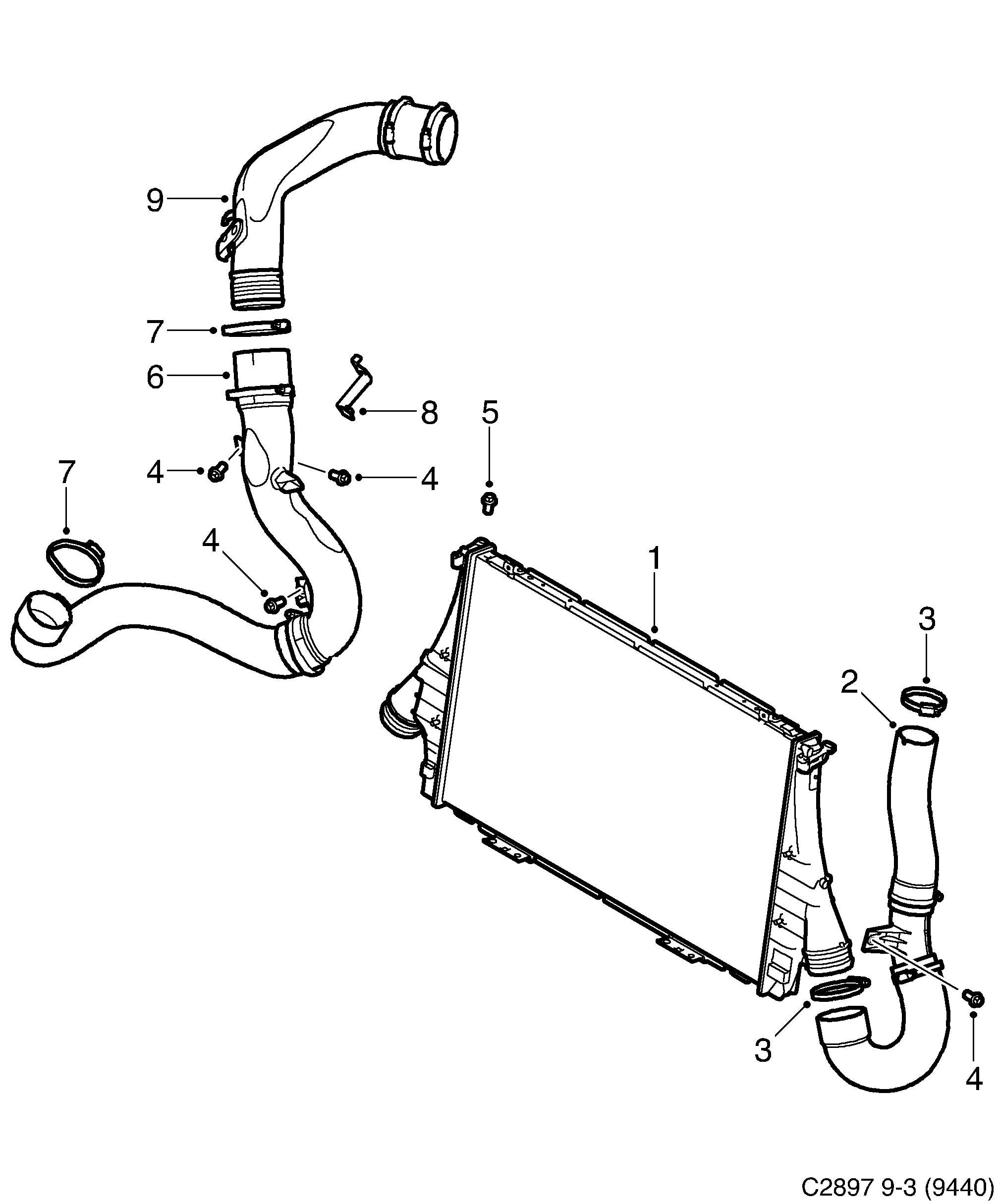

5585: Engine - Cooling system - Charge air cooler
