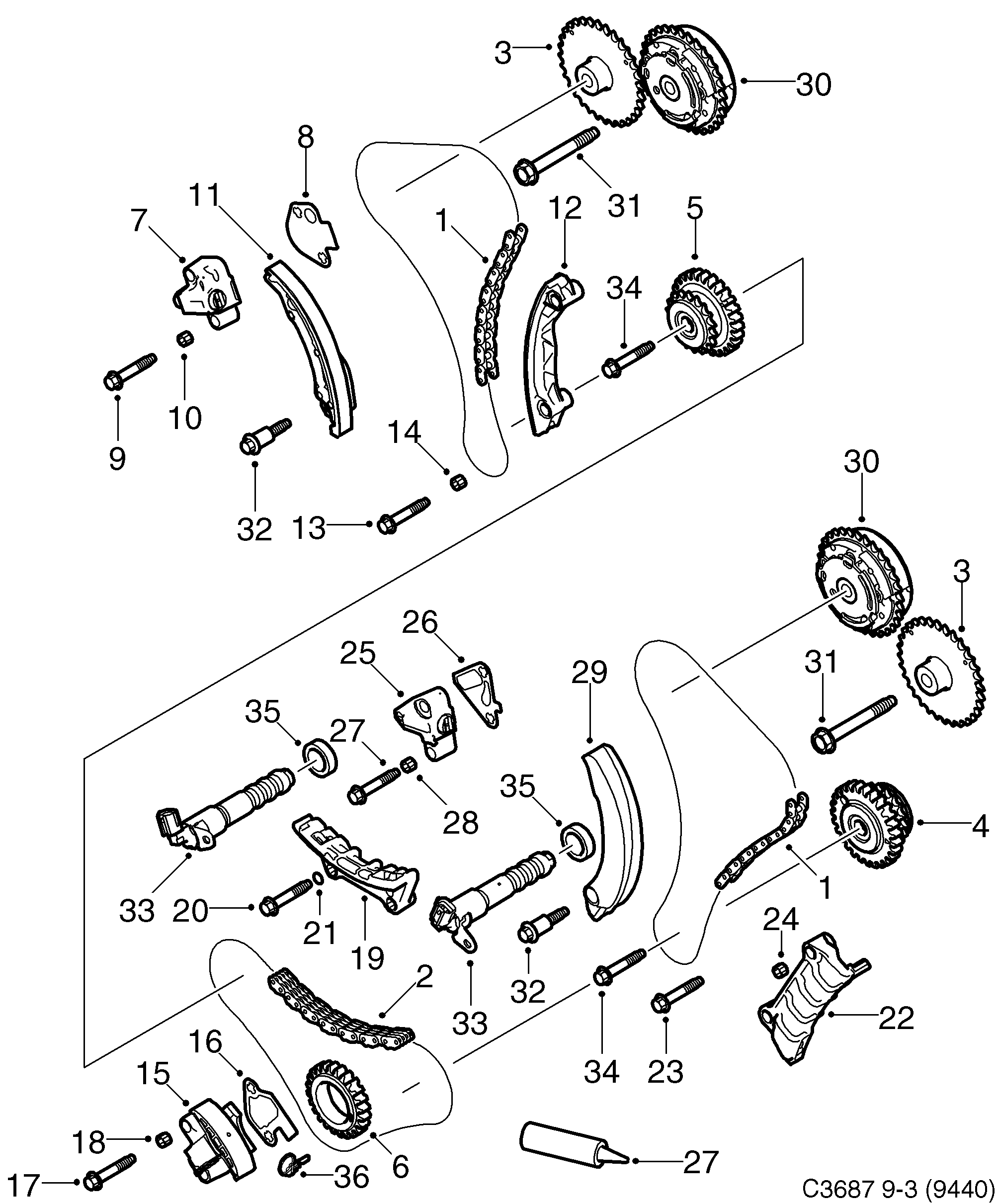

735: Engine - Short block - Transmission

(2006 - 2012 | B284) | For 9-3 (9440) (2011)

100%

(N°700)

Section 735

(N°785)

Pos.	Part No.	Description	Usage	Qty
1	12 589 011 Timing chain 70	Timing chain	70	2
1	12 616 608 Timing chain 70	Timing chain	70	2
2	12 590 920 Timing chain 70	Timing chain	70	1
2	12 616 609 Timing chain 70	Timing chain	70	1
3	12 566 656 Chain gear 70	Chain gear	70	1
3	12 599 724 Chain gear 70	Chain gear	70	1
4	12 590 923 Idler gear 70 • Rear.	Idler gear	70 Rear.	1
4	12 600 459 Idler gear 70 • Rear.	Idler gear	70 Rear.	1
4	12 612 839 Idler gear 70 • Rear.	Idler gear	70 Rear.	1
5	12 590 922 Idler gear 70 • Front.	Idler gear	70 Front.	1
5	12 600 460 12 612 838 Idler gear 70 • Front.	Idler gear	70 Front.	1
5	12 612 838 Idler gear 70 • Front.	Idler gear	70 Front.	1
6	12 590 921 Chain gear 70	Chain gear	70	1
6	12 599 721 Chain gear 70	Chain gear	70	1
7	12 596 980 12 609 258 Chain tensioner 70	Chain tensioner	70	1
7	12 609 258 Chain tensioner 70	Chain tensioner	70	1
8	12 589 479 Gasket 70	Gasket	70	1
9	11 588 255 Hexagon screw 70	Hexagon screw	70	2
10	11 588 846 Spacer sleeve 70 • Not as separate spare...	Spacer sleeve	70 Not as separate spare...	2
11	12 623 514 Guide 2008-2011 • 70	Guide	2008-2011 70	1
12	12 586 963 Guide 70	Guide	70	1
12	12 600 462 Guide 70	Guide	70	1
13	11 588 255 Hexagon screw 70	Hexagon screw	70	2
14	11 588 846 Spacer sleeve 70 • Not as separate spare...	Spacer sleeve	70 Not as separate spare...	2
15	12 596 981 12 609 262 Chain tensioner 70	Chain tensioner	70	1
15	12 609 262 Chain tensioner 70	Chain tensioner	70	1
16	12 589 477 Gasket 70	Gasket	70	1
17	11 588 255 Hexagon screw 70	Hexagon screw	70	2
18	11 588 846 Spacer sleeve 70 • Not as separate spare...	Spacer sleeve	70 Not as separate spare...	2
19	12 597 417 Guide 70	Guide	70	1
20	11 588 255 Hexagon screw 70	Hexagon screw	70	2
21	11 588 846 Spacer sleeve 70 • Not as separate spare...	Spacer sleeve	70 Not as separate spare...	2
22	12 589 010 Guide 70	Guide	70	1
22	12 600 461 Guide 70	Guide	70	1
23	11 588 255 Hexagon screw 70	Hexagon screw	70	2
24	11 588 846 Spacer sleeve 70 • Not as separate spare...	Spacer sleeve	70 Not as separate spare...	2
25	12 596 979 12 609 260 Chain tensioner 70	Chain tensioner	70	1
25	12 609 260 Chain tensioner 70	Chain tensioner	70	1
26	12 589 478 Gasket 70	Gasket	70	1
27	11 588 255 Hexagon screw 70	Hexagon screw	70	2
28	11 588 846 Spacer sleeve 70 • Not as separate spare...	Spacer sleeve	70 Not as separate spare...	2
29	12 623 513 Guide 2008-2011 • 70	Guide	2008-2011 70	1
30	12 630 917 Chain gear 2010-2011 • 70 • LH	Chain gear	2010-2011 70 LH	1
30	12 630 916 Chain gear 2010-2011 • 70 • RH	Chain gear	2010-2011 70 RH	1
31	11 588 279 Hexagon screw 70	Hexagon screw	70	4
32	11 561 619 Hexagon screw 70	Hexagon screw	70	2
33	12 636 175 Actuator solenoid 70	Actuator solenoid	70	1
34	11 588 252 Special screw 70	Special screw	70	2
35	12 593 717 O-ring 70	O-ring	70	2
36	12 590 924 Spring 70	Spring	70	1
36	12 599 725 Spring 70	Spring	70	1
37	93 165 267 Sealing compound 70	Sealing compound	70	X
