Question 1

Where to find the exploded diagram for Fuel system on my Saab 9-3 (9440) 2012?

Accepted Answer

Find on Saabiste.net the complete and official interactive technical diagram for Fuel system on Saab 9-3 (9440) 2012. All components are detailed with their original SAAB OEM references.

Question 2

How do I identify a specific Saab reference in the section Fuel system?

Accepted Answer

Each part of the exploded diagram has a numbered marker linked to our parts table. You can click on the visual marker to instantly highlight the corresponding row containing the OEM part number, quantity, and chassis restrictions.

Question 3

How do I copy or use the part number of a component in section Fuel system?

Accepted Answer

Simply click on the monospace part number in the table. Saabiste will instantly copy the OEM part number to your clipboard to make it easier for you to search at your Saab parts suppliers.

Question 4

What does NLS mean in the Saab 9-3 (9440) catalog?

Accepted Answer

NLS stands for "No Longer Serviced". For these discontinued original parts in the section Fuel system, Saabiste displays, whenever available, the official replacement reference recommended by the manufacturer.

Question 5

Are the parts in this section Fuel system suitable for left-hand drive (LHD) or right-hand drive (RHD)?

Accepted Answer

Steering compatibilities are shown in the restrictions column of the parts table. You can also use the global EPC filters to hide part variants that are incompatible with your Saab's steering type (LHD/RHD).

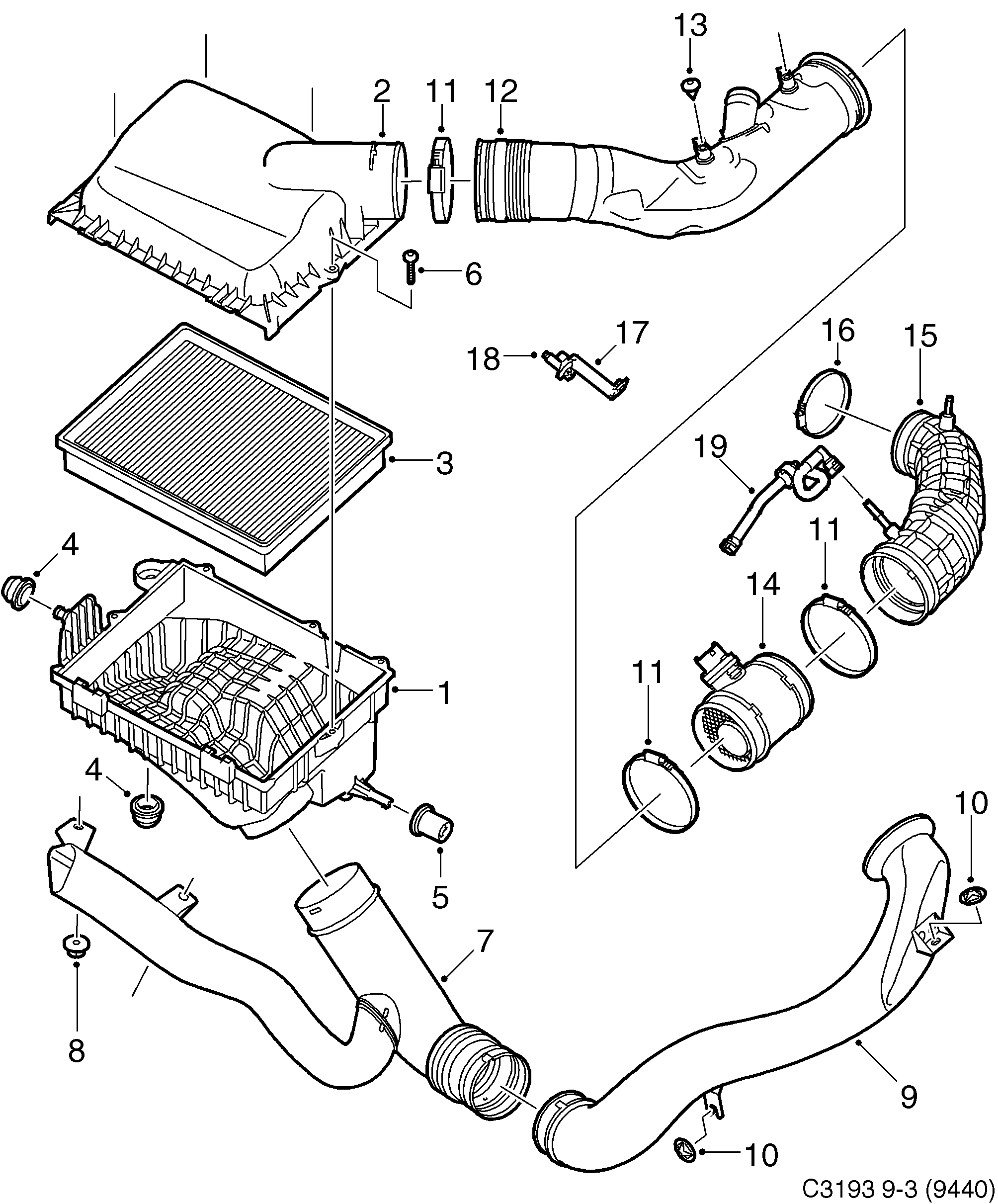

Pos.	Part No.	Description	Usage	Qty
1	55 559 847 Housing 70	Housing	70	1
3	12 786 800 Air filter 70	Air filter	70	1
4	91 29 705 Rubber spacer 70	Rubber spacer	70	2
5	92 02 941 Rubber spacer 70	Rubber spacer	70	1
6	12 800 518 Screw 70	Screw	70	4
7	55 557 429 Air inlet 70	Air inlet	70	1
8	90 482 479 Plastic nut 70	Plastic nut	70	2
10	92 151 935 Hexagon nut 70	Hexagon nut	70	2
11	24 415 474 Hose clamp 70	Hose clamp	70	3
12	12 790 714 Air duct 70	Air duct	70	1
13	55 560 599 Screw 70	Screw	70	2
14	93 185 455 Mass air flow sensor 70	Mass air flow sensor	70	1
15	12 790 715 Air hose 70	Air hose	70	1
16	24 415 470 Hose clamp 70	Hose clamp	70	1
17	55 556 314 Bracket 70	Bracket	70	1
18	11 900 026 Hexagon screw 70	Hexagon screw	70	1
19	55 557 399 Plastic pipe 70 • Name of the substance...	Plastic pipe	70 Name of the substance...	1

Pos.	Part No.	Description	Usage	Qty
1	55 559 847 Housing 70	Housing	70	1
3	12 786 800 Air filter 70	Air filter	70	1
4	91 29 705 Rubber spacer 70	Rubber spacer	70	2
5	92 02 941 Rubber spacer 70	Rubber spacer	70	1
6	12 800 518 Screw 70	Screw	70	4
7	55 557 429 Air inlet 70	Air inlet	70	1
8	90 482 479 Plastic nut 70	Plastic nut	70	2
10	92 151 935 Hexagon nut 70	Hexagon nut	70	2
11	24 415 474 Hose clamp 70	Hose clamp	70	3
12	12 790 714 Air duct 70	Air duct	70	1
13	55 560 599 Screw 70	Screw	70	2
14	93 185 455 Mass air flow sensor 70	Mass air flow sensor	70	1
15	12 790 715 Air hose 70	Air hose	70	1
16	24 415 470 Hose clamp 70	Hose clamp	70	1
17	55 556 314 Bracket 70	Bracket	70	1
18	11 900 026 Hexagon screw 70	Hexagon screw	70	1
19	55 557 399 Plastic pipe 70 • Name of the substance...	Plastic pipe	70 Name of the substance...	1

3010: Engine - Fuel system - Air cleaner
