Question 1

Where to find the exploded diagram for Fuel system on my Saab 9-3 (9440) 2012?

Accepted Answer

Find on Saabiste.net the complete and official interactive technical diagram for Fuel system on Saab 9-3 (9440) 2012. All components are detailed with their original SAAB OEM references.

Question 2

How do I identify a specific Saab reference in the section Fuel system?

Accepted Answer

Each part of the exploded diagram has a numbered marker linked to our parts table. You can click on the visual marker to instantly highlight the corresponding row containing the OEM part number, quantity, and chassis restrictions.

Question 3

How do I copy or use the part number of a component in section Fuel system?

Accepted Answer

Simply click on the monospace part number in the table. Saabiste will instantly copy the OEM part number to your clipboard to make it easier for you to search at your Saab parts suppliers.

Question 4

What does NLS mean in the Saab 9-3 (9440) catalog?

Accepted Answer

NLS stands for "No Longer Serviced". For these discontinued original parts in the section Fuel system, Saabiste displays, whenever available, the official replacement reference recommended by the manufacturer.

Question 5

Are the parts in this section Fuel system suitable for left-hand drive (LHD) or right-hand drive (RHD)?

Accepted Answer

Steering compatibilities are shown in the restrictions column of the parts table. You can also use the global EPC filters to hide part variants that are incompatible with your Saab's steering type (LHD/RHD).

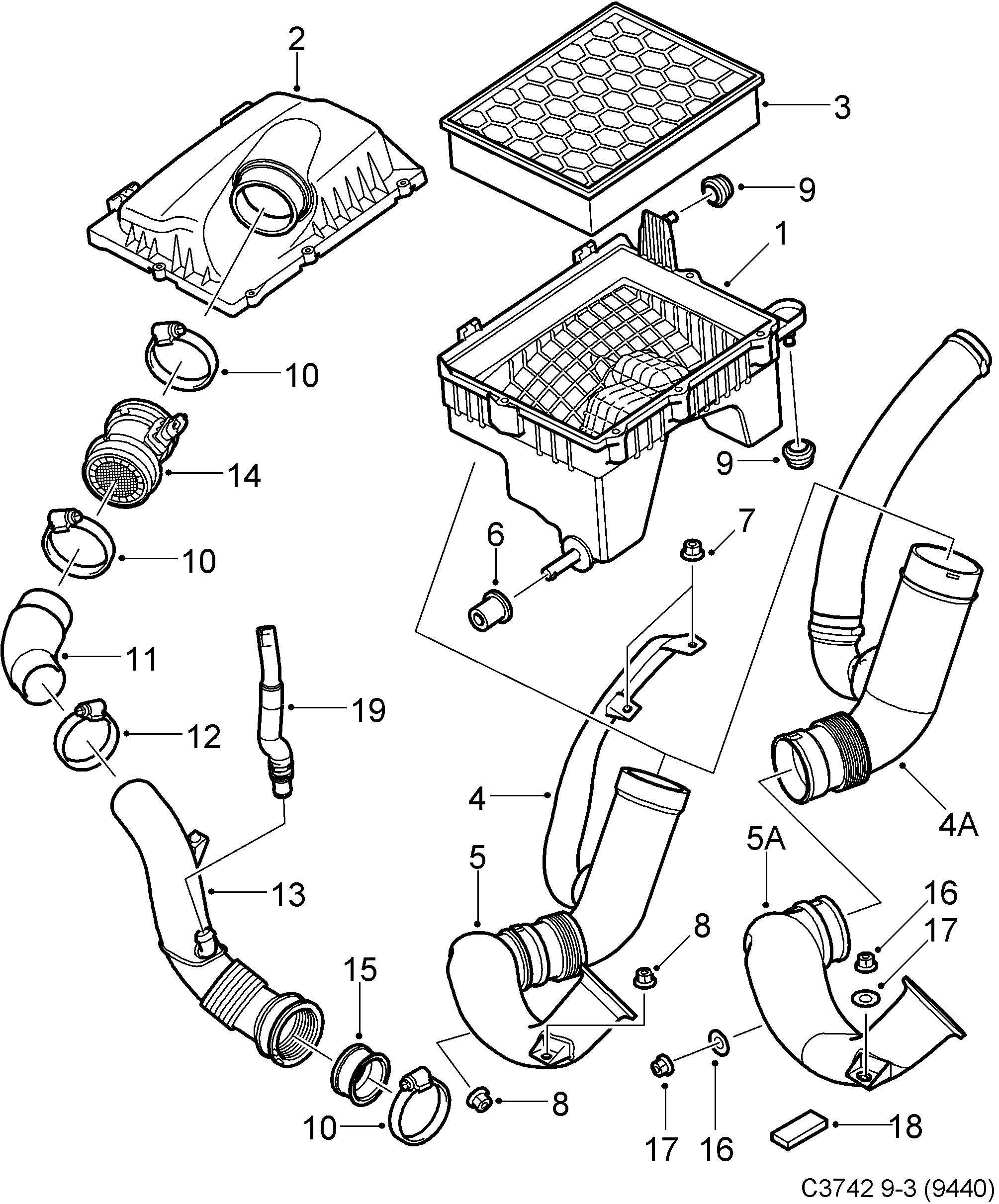

Pos.	Part No.	Description	Usage	Qty
1	12 795 151 Air cleaner A19DTR	Air cleaner	A19DTR	1
3	12 788 338 Air filter A19DTR	Air filter	A19DTR	1
6	92 02 941 Rubber spacer A19DTR	Rubber spacer	A19DTR	1
7	90 482 479 Plastic nut A19DTR	Plastic nut	A19DTR	2
8	92 152 037 Nut A19DTR	Nut	A19DTR	2
9	91 29 705 Rubber spacer A19DTR	Rubber spacer	A19DTR	2
10	24 415 471 Hose clamp A19DTR • 72-80 MM	Hose clamp	A19DTR 72-80 MM	3
17	12 802 365 Washer A19DTR	Washer	A19DTR	2
19	HoseLubricating system Z19DTH, Z19DTR, A19DTR	HoseLubricating system Z19DTH, Z19DTR, A19DTR

Pos.	Part No.	Description	Usage	Qty
1	12 795 151 Air cleaner A19DTR	Air cleaner	A19DTR	1
3	12 788 338 Air filter A19DTR	Air filter	A19DTR	1
6	92 02 941 Rubber spacer A19DTR	Rubber spacer	A19DTR	1
7	90 482 479 Plastic nut A19DTR	Plastic nut	A19DTR	2
8	92 152 037 Nut A19DTR	Nut	A19DTR	2
9	91 29 705 Rubber spacer A19DTR	Rubber spacer	A19DTR	2
10	24 415 471 Hose clamp A19DTR • 72-80 MM	Hose clamp	A19DTR 72-80 MM	3
17	12 802 365 Washer A19DTR	Washer	A19DTR	2
19	HoseLubricating system Z19DTH, Z19DTR, A19DTR	HoseLubricating system Z19DTH, Z19DTR, A19DTR

3075: Engine - Fuel system - Air cleaner
