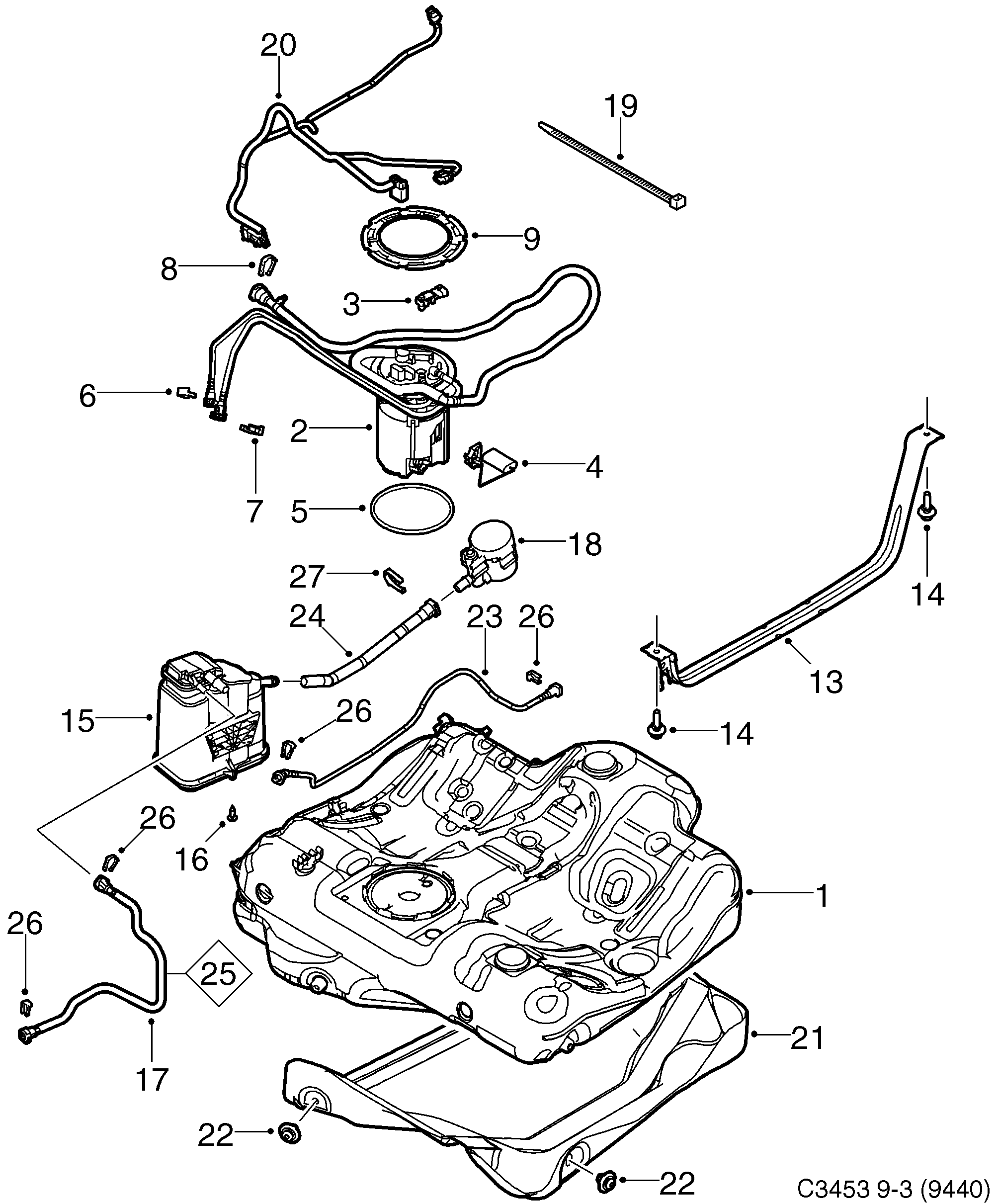

3105: Engine - Fuel system - Fuel tank
(2003 - 2012 | PETROL) | For 9-3 (9440) (2012)
Less All Wheel Drive (XWD)
100%
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 3 | 16 238 399 Pressure sensor PETROL • (OBD II) | 1 | |
| 4 | 22 672 171 Fuel gauge sensor PETROL • (OBD II) | 1 | |
| 9 | Lock ring PETROL • Not as separate spare... | ||
| 5 | 22 672 293 Seal PETROL | 1 | |
| 6 | 22 717 568 Clip PETROL • 3/8'' | 1 | |
| 7 | 21 992 748 Clip PETROL • 5/16'' | 1 | |
| 8 | 21 992 746 Clip PETROL • 5/8'' | 1 | |
| 13 | 22 629 652 Tensioning band PETROL • LH | 1 | |
| 13 | 22 629 651 Tensioning band PETROL • RH | 1 | |
| 14 | Tensioning band PETROL • Not as separate spare... | ||
| 15 | 12 756 532 Evaporative emission canister B207 | 1 | |
| 16 | 11 900 509 Screw PETROL | 1 | |
| 17 | 22 667 422 Vent hose B207 | 1 | |
| 19 | 11 900 512 Tensioning band PETROL | 2 | |
| 20 | 12 788 302 12 798 685 Cable harness B207 | 1 | |
| 21 | 22 629 654 Heat shield PETROL | 1 | |
| 22 | 25 612 415 Plastic rivet PETROL | 3 | |
| 24 | Filler pipe PETROL • Not as separate spare... | ||
| 25 | Vent hoseFuel system PETROL | ||
| 26 | 21 992 748 Clip PETROL • 5/16'' | 4 | |
| 27 | 21 992 746 Clip PETROL • 5/8'' | 1 |
