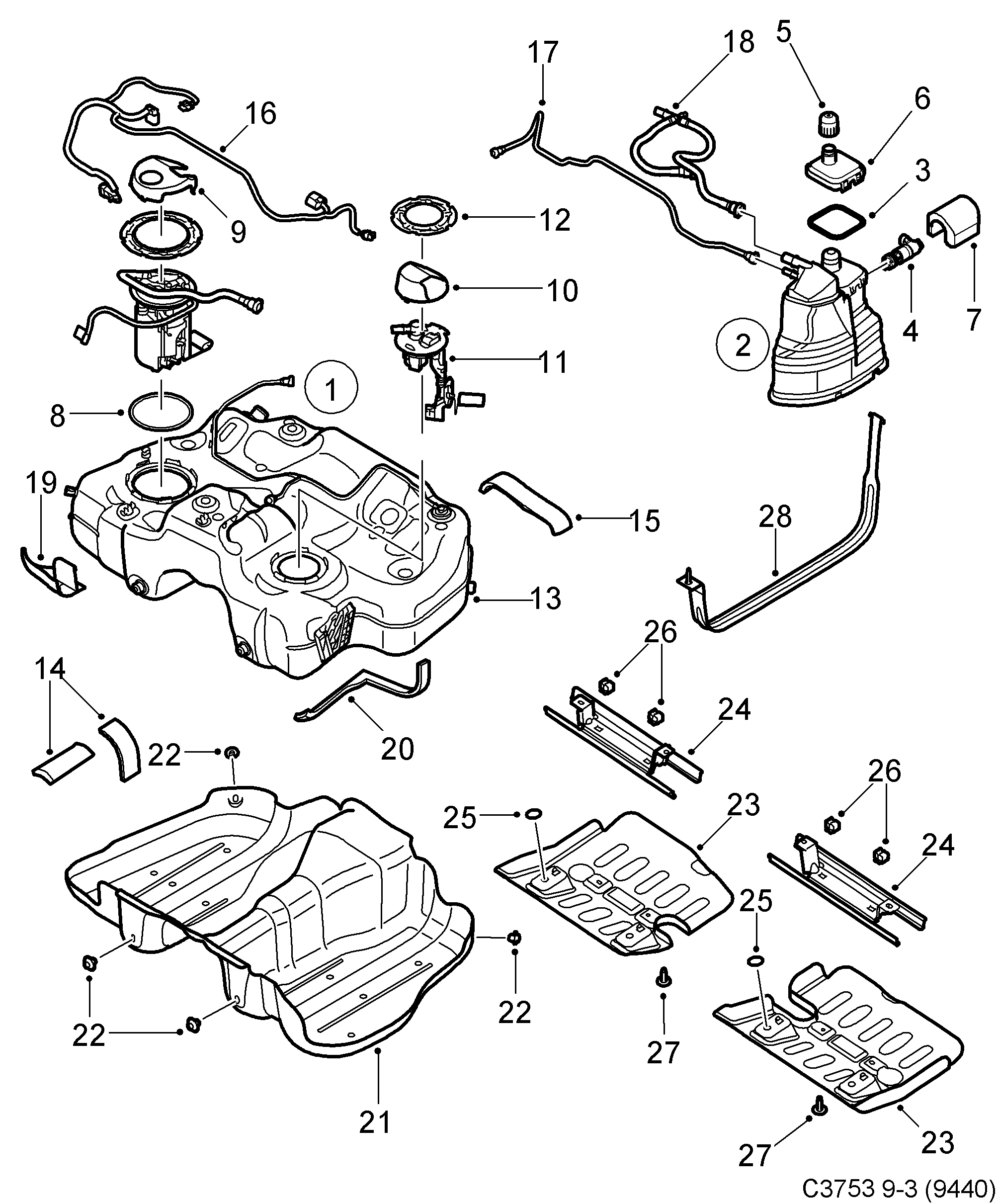

3107: Engine - Fuel system - Fuel tank
(2008 - 2012 | PETROL) | For 9-3 (9440) (2012)
With All Wheel Drive (XWD)
100%
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 12 777 525 Fuel reservoir B207R • Assy | 1 | |
12 845 869 Fuel pump PETROL • Not as separate spare... | 1 | ||
| 2 | 12 781 775 Reservoir PETROL | 1 | |
| 3 | 25 827 633 Seal PETROL | 1 | |
| 4 | 25 932 573 Solenoid valve PETROL | 1 | |
| 5 | 13 267 929 Cap blanking PETROL | 1 | |
| 6 | 13 267 930 Cover PETROL | 1 | |
| 7 | 22 682 316 Filter insert PETROL | 1 | |
| 8 | 22 682 111 O-ring PETROL | 1 | |
| 9 | 12 781 296 Cover PETROL • RH | 1 | |
| 10 | 12 781 304 Cover PETROL • LH | 1 | |
| 11 | 12 783 024 Fuel gauge PETROL | 1 | |
| 12 | 15 776 431 Retainer PETROL | 1 | |
| 13 | 12 781 654 Fuel reservoir PETROL | 1 | |
| 14 | 12 784 770 Insulation PETROL | 1 | |
| 15 | 12 841 859 Insulation PETROL | X | |
| 16 | 12 783 031 Connecting cable PETROL | 1 | |
| 17 | 12 783 030 Pipe, fuel evaporation PETROL | 1 | |
| 18 | 12 781 658 Pipe, fuel evaporation PETROL | 1 | |
| 19 | 12 781 651 Protection PETROL | 1 | |
| 20 | 12 842 153 Seal PETROL | 1 | |
| 21 | 12 781 649 Heat shield PETROL | 1 | |
| 22 | 22 718 369 Plastic rivet PETROL | 4 | |
| 1 | 12 784 882 Fuel reservoir B207R • Assy Flex Fuel | 1 | |
| 23 | 12 783 570 Protecting plate PETROL • RH | 1 | |
| 23 | 12 783 532 Protecting plate PETROL • LH | 1 | |
| 24 | 12 783 572 Bracket PETROL • LH, RH | 2 | |
| 25 | 48 58 098 Spacer PETROL | 4 | |
| 26 | 11 570 215 Nut PETROL | 4 | |
| 27 | 11 609 341 Screw PETROL | 4 | |
| 28 | 12 777 526 Tensioning band PETROL • LH | 1 | |
| 28 | 12 777 527 Tensioning band PETROL • RH | 1 |
