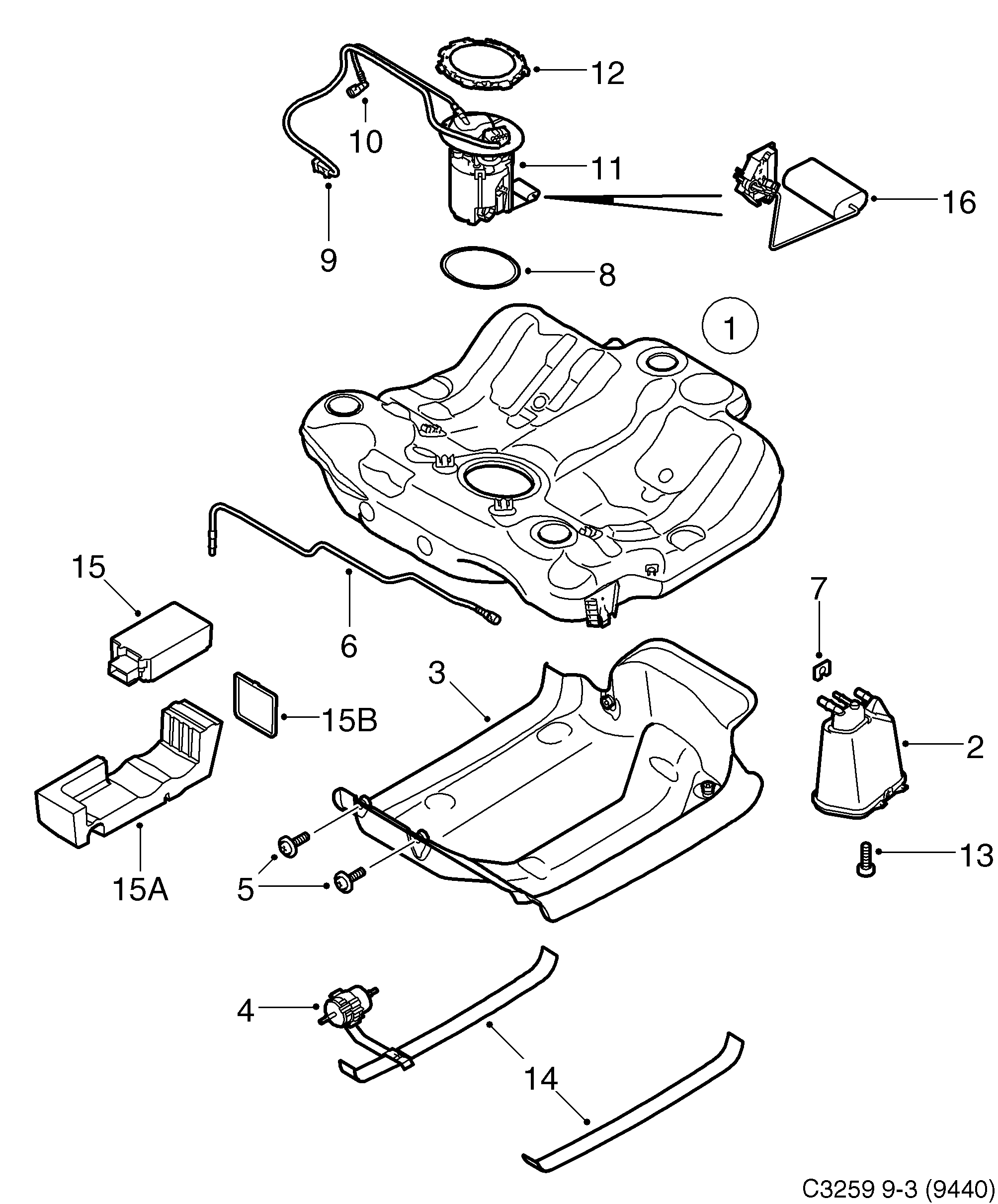

3110: Engine - Fuel system - Fuel tank
(2006 - 2012 | B284) | For 9-3 (9440) (2012)
Not for USA and Canada. | Less All Wheel Drive (XWD)
100%
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 2 | 91 84 236 Evaporative emission canister 70 | 1 | |
| 3 | 24 401 337 Heat shield 70 | 1 | |
| 4 | 25 313 359 Fuel filter 70 | 1 | |
| 5 | 91 28 429 Screw 70 | 4 | |
| 6 | 24 403 490 Vent hose 70 | 1 | |
| 7 | 90 542 943 Clip 70 | 1 | |
| 8 | 24 401 341 Seal 70 | 1 | |
| 9 | 12 759 814 Cable harness 70 | 1 | |
| 10 | 12 760 519 Fuel pipe 70 • Feed | 1 | |
| 11 | 93 166 803 Fuel pump 70 | 1 | |
| 12 | 90 572 096 Lock ring 70 | 1 | |
| 13 | 11 900 509 Screw 70 | 1 | |
| 15 | 12 762 917 Control unit 70 | 1 | |
| 15 | 12 762 918 Control unit 70 | 1 | |
| 15A | 12 765 689 Support 70 | 1 | |
| 15A | 12 765 690 Support 70 | 1 | |
| 15B | 11 900 513 Tensioning band 70 | 1 | |
| 16 | 13 178 568 Fuel gauge sensor 70 | 1 |
