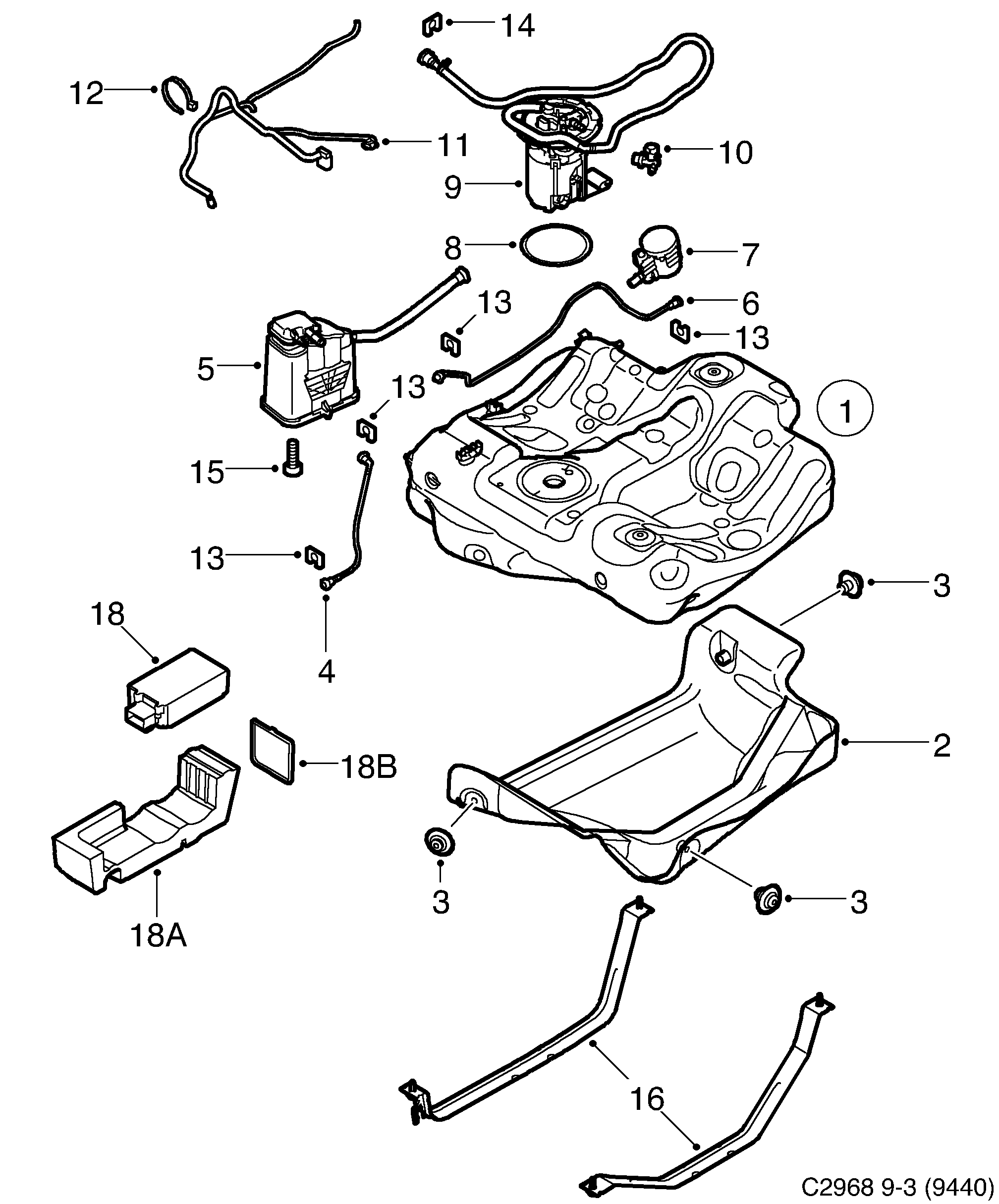

3120: Engine - Fuel system - Fuel tank
(2006 - 2012 | B284) | For 9-3 (9440) (2012)
Less All Wheel Drive (XWD)
100%
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 2 | 22 629 654 Heat shield 70 | 1 | |
| 3 | 22 718 369 Plastic rivet 70 | 3 | |
| 4 | 22 667 422 Vent hose 70 | 1 | |
| 5 | 12 758 815 Carbon filter 70 | 1 | |
| 6 | 22 729 539 Vent hose 70 | 1 | |
| 7 | 10 382 105 Valve 70 | 1 | |
| 8 | 22 672 293 Seal 70 | 1 | |
| 9 | 12 763 086 Fuel pump 70 | 1 | |
| 10 | 12 804 126 Valve 70 | 1 | |
| 11 | 12 798 685 Cable harness 70 | 1 | |
| 12 | 11 900 512 Tensioning band 70 | 3 | |
| 13 | 21 992 748 Clip 70 | 4 | |
| 14 | 21 992 746 Clip 70 | 1 | |
| 15 | 11 900 509 Screw 70 | 1 | |
| 16 | 22 629 652 Tensioning band 70 • LH | 1 | |
| 16 | 22 629 651 Tensioning band 70 • RH | 1 | |
| 17 | Screw 70 • Not as separate spare... | 2 | |
| 18 | 12 762 917 Control unit 70 | 1 | |
| 18 | 12 762 918 Control unit 70 | 1 | |
| 18A | 12 765 689 Support 70 | 1 | |
| 18A | 12 765 690 Support 70 | 1 | |
| 18B | 11 900 513 Tensioning band 70 | 1 |
