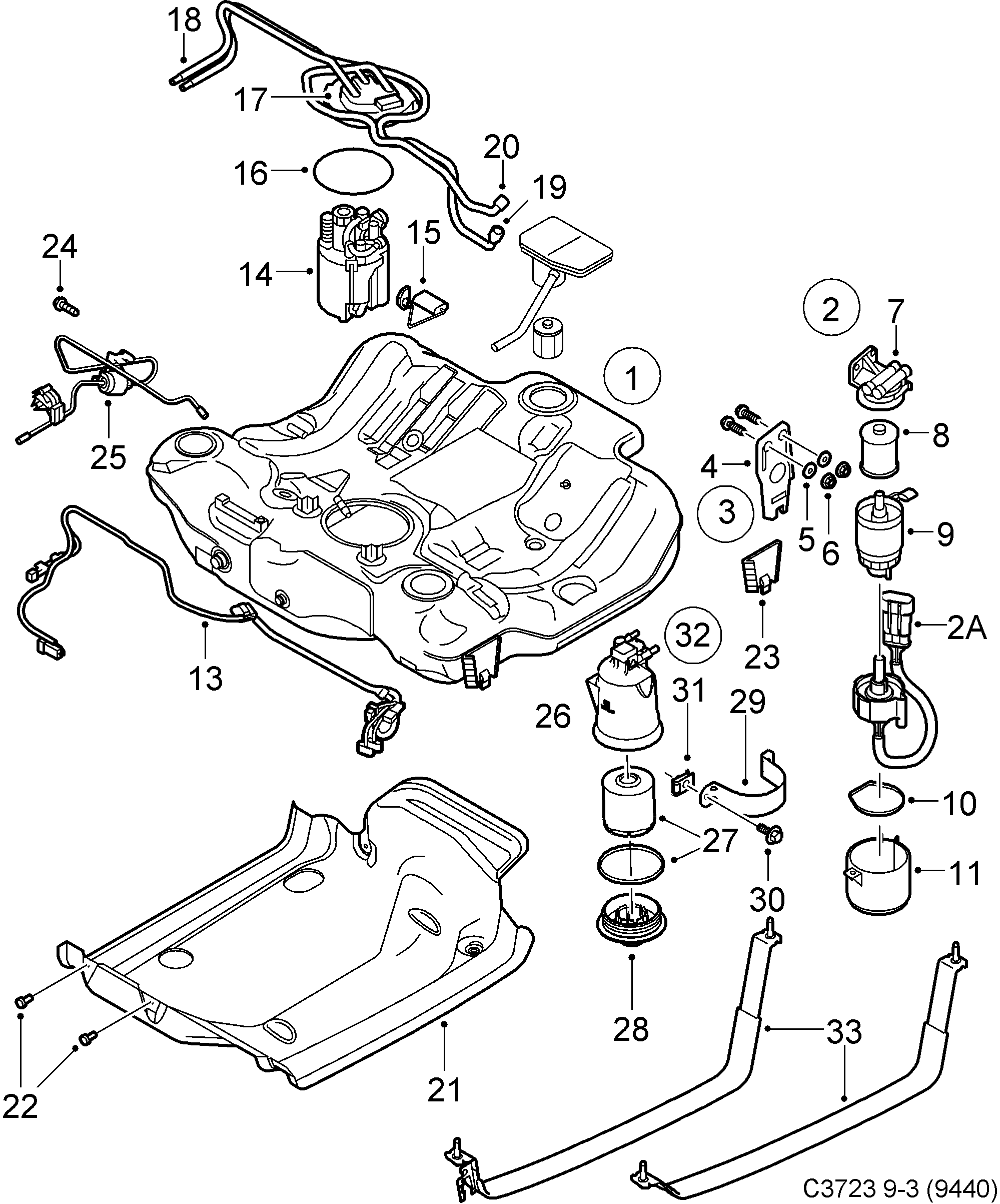

3180: Engine - Fuel system - Fuel tank
(2006 - 2012 | A19DTR) | For 9-3 (9440) (2012)
100%
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 2A | 12 762 673 Sensor A19DTR | 1 | |
| 3 | 12 762 676 Bracket A19DTR • Assy | 1 | |
| 4 | 12 760 509 Bracket A19DTR | 1 | |
| 5 | 12 760 510 Washer A19DTR | 2 | |
| 6 | 79 77 309 Nut Z19DT, Z19DTH | 2 | |
| 7 | 12 762 668 Plate A19DTR | 1 | |
| 8 | 12 762 671 Fuel filter A19DTR | 1 | |
| 9 | Filter housing A19DTR • Not as separate spare... | 1 | |
| 10 | 11 900 514 79 71 898 Retainer A19DTR | 1 | |
| 10 | 79 71 898 Tensioning band A19DTR | 1 | |
| 11 | 12 762 674 Protecting cover A19DTR | 1 | |
| 12 | Connector A19DTR • Not as separate spare... | ||
| 13 | 12 762 576 Cable harness A19DTR • For cars with fuel-driven... | 1 | |
| 13 | 12 762 575 Cable harness A19DTR • For cars without engine... | 1 | |
| 15 | 13 178 568 Fuel gauge sensor A19DTR | 1 | |
| 16 | 24 439 526 Seal A19DTR | 1 | |
| 17 | 90 572 096 Lock ring A19DTR | 1 | |
| 18 | 13 182 628 Return line A19DTR | 1 | |
| 19 | 12 762 663 Fuel pipe A19DTR | 1 | |
| 20 | 12 762 662 Fuel pipe A19DTR | 1 | |
| 21 | 24 401 337 Heat shield A19DTR | 1 | |
| 22 | 91 28 429 Screw A19DTR | 4 | |
| 23 | 24 403 470 Bracket A19DTR • Not as separate spare... | 1 | |
| 24 | 11 095 531 Screw A19DTR | 1 | |
| 25 | 13 139 977 Fuel pump A19DTR • Engine heater | 1 |
