Pos.	Part No.	Description	Usage	Qty
1	Cylinder block 70 • Not as separate spare...	Cylinder block	70 Not as separate spare...
2	12 566 224 Liner 70	Liner	70	6
5	12 557 520 Plug, locking 70	Plug, locking	70	2
6	11 609 289 Plug, locking 70	Plug, locking	70	1
7	12 560 272 Screw 70	Screw	70	8
8	11 518 861 Screw 70	Screw	70	8
9	Main bearing cap 70 • Not as separate spare...	Main bearing cap	70 Not as separate spare...	4
10	12 597 210 Sleeve 70	Sleeve	70	2
11	11 589 000 Hexagon screw 70 • M8X50.4	Hexagon screw	70 M8X50.4	4

Pos.	Part No.	Description	Usage	Qty
1	Cylinder block 70 • Not as separate spare...	Cylinder block	70 Not as separate spare...
2	12 566 224 Liner 70	Liner	70	6
5	12 557 520 Plug, locking 70	Plug, locking	70	2
6	11 609 289 Plug, locking 70	Plug, locking	70	1
7	12 560 272 Screw 70	Screw	70	8
8	11 518 861 Screw 70	Screw	70	8
9	Main bearing cap 70 • Not as separate spare...	Main bearing cap	70 Not as separate spare...	4
10	12 597 210 Sleeve 70	Sleeve	70	2
11	11 589 000 Hexagon screw 70 • M8X50.4	Hexagon screw	70 M8X50.4	4

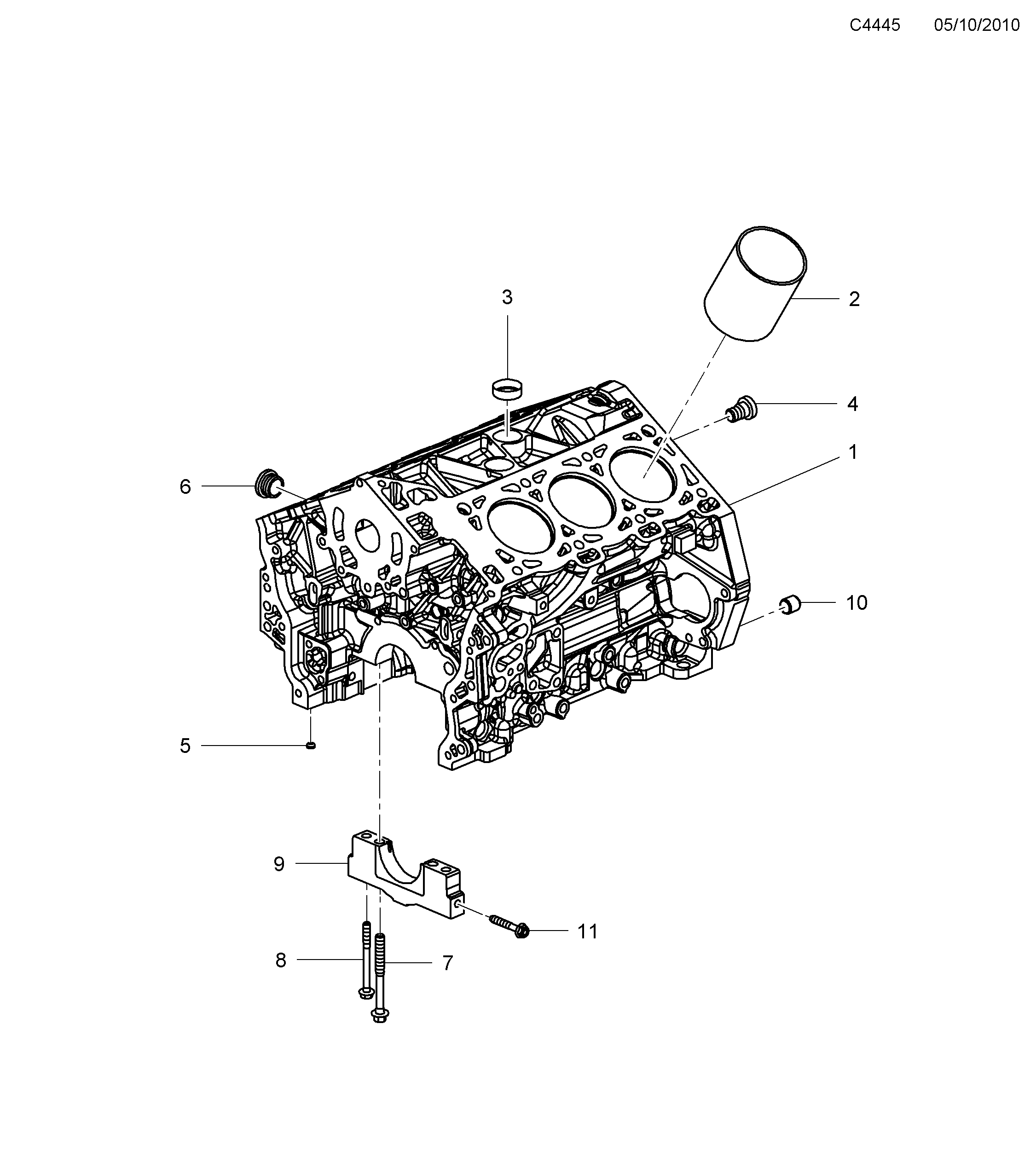

410: Engine - Short block - Cylinder block
