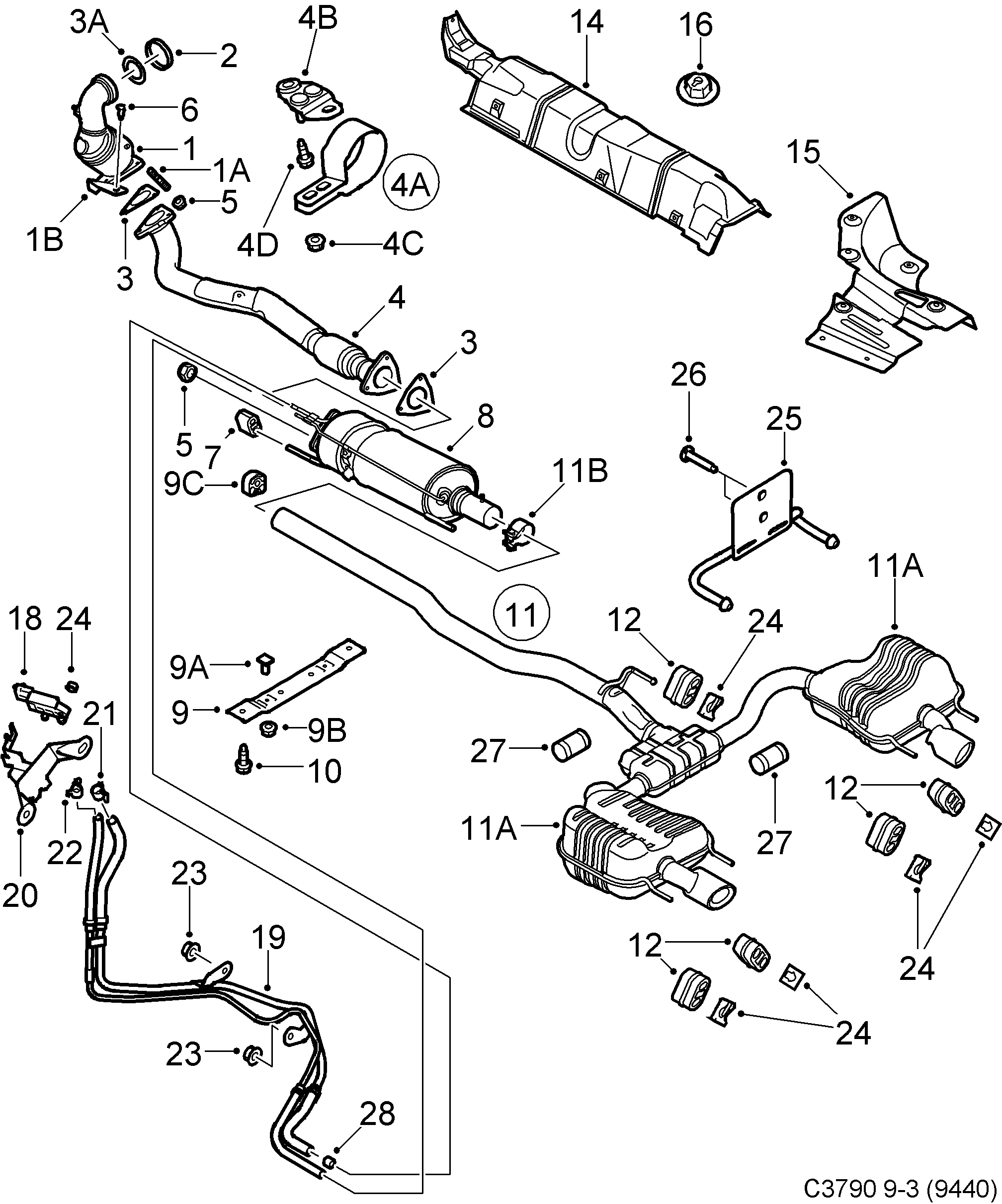

4780: Engine - Intake and exhaust system - Exhaust system

(2008 - 2012 | A19DTR) | For 9-3 (9440) (2012)

100%

(N°4710)

Section 4780

(N°4800)

Pos.	Part No.	Description	Usage	Qty
1	55 210 866 Three way catalytic converter A19DTR	Three way catalytic converter	A19DTR	1
1A	11 098 631 Stud A19DTR	Stud	A19DTR	3
1B	55 210 867 Bracket A19DTR	Bracket	A19DTR	1
2	55 209 165 Pipe clip A19DTR	Pipe clip	A19DTR	1
3	55 187 592 Gasket A19DTR	Gasket	A19DTR	2
3A	55 207 801 Gasket A19DTR	Gasket	A19DTR	1
4	55 185 819 Exhaust pipe A19DTR	Exhaust pipe	A19DTR	1
4A	55 556 679 Bracket A19DTR	Bracket	A19DTR	1
4B	55 556 341 Mounting bracket A19DTR	Mounting bracket	A19DTR	1
4C	11 094 436 Nut A19DTR	Nut	A19DTR	2
4D	11 073 353 Screw A19DTR	Screw	A19DTR	2
5	11 900 429 Nut A19DTR	Nut	A19DTR	6
6	11 900 375 Flange screw A19DTR	Flange screw	A19DTR	1
7	55 559 084 Rubber mounting A19DTR	Rubber mounting	A19DTR	2
8	55 563 183 Three way catalytic converter A19DTR • Name of the substance...	Three way catalytic converter	A19DTR Name of the substance...	1
9	55 189 199 Bracket A19DTR	Bracket	A19DTR	1
9A	55 354 918 Screw A19DTR	Screw	A19DTR	2
9B	11 900 439 Nut A19DTR	Nut	A19DTR	2
9C	55 187 602 Rubber damper A19DTR	Rubber damper	A19DTR	2
10	11 900 365 Screw A19DTR	Screw	A19DTR	2
11	12 780 289 Silencer A19DTR • Hidden tailpipe assembly	Silencer	A19DTR Hidden tailpipe assembly	1
11A	12 780 290 Silencer A19DTR • LH \| Hidden tailpipe	Silencer	A19DTR LH \| Hidden tailpipe	1
11A	12 780 291 Silencer A19DTR • RH \| Hidden tailpipe	Silencer	A19DTR RH \| Hidden tailpipe	1
11B	12 793 502 Exhaust pipe clamp A19DTR	Exhaust pipe clamp	A19DTR	1
11	12 772 202 Silencer A19DTR • Visible tailpipe assembly	Silencer	A19DTR Visible tailpipe assembly	1
11A	12 765 496 Silencer A19DTR • LH \| Visible tailpipe	Silencer	A19DTR LH \| Visible tailpipe	1
11A	12 765 497 Silencer A19DTR • RH \| Visible tailpipe	Silencer	A19DTR RH \| Visible tailpipe	1
11	12 770 417 Silencer A19DTR • Visible tailpipe assembly	Silencer	A19DTR Visible tailpipe assembly	1
11A	12 765 494 Silencer A19DTR • LH \| Visible tailpipe	Silencer	A19DTR LH \| Visible tailpipe	1
11A	12 765 495 Silencer A19DTR • RH \| Visible tailpipe	Silencer	A19DTR RH \| Visible tailpipe	1
12	90 466 668 Rubber mounting A19DTR	Rubber mounting	A19DTR	X
14	12 782 089 Heat shield A19DTR • Centre	Heat shield	A19DTR Centre	1
15	12 785 068 Heat shield A19DTR • Rear	Heat shield	A19DTR Rear	1
16	92 152 033 55 563 636 Nut A19DTR	Nut	A19DTR	X
16	55 563 636 Hexagon nut A19DTR	Hexagon nut	A19DTR	X
18	93 187 247 Pressure sensor A19DTR	Pressure sensor	A19DTR	1
19	55 564 236 Pipe LHD • A19DTR	Pipe	LHD A19DTR	1
19	55 564 237 Pipe RHD • A19DTR	Pipe	RHD A19DTR	1
20	55 354 775 Bracket LHD • A19DTR	Bracket	LHD A19DTR	1
20	55 354 774 Bracket RHD • A19DTR	Bracket	RHD A19DTR	1
21	55 353 931 Hose clamp A19DTR	Hose clamp	A19DTR	1
22	55 353 931 Hose clamp A19DTR	Hose clamp	A19DTR	2
23	55 563 636 Hexagon nut A19DTR	Hexagon nut	A19DTR	2
24	92 153 044 Nut A19DTR	Nut	A19DTR	2
25	BracketBody shell A19DTR • Exhaust pipe mounting	BracketBody shell A19DTR • Exhaust pipe mounting			1
26	11 073 353 Screw A19DTR • M10 x 25 MM	Screw	A19DTR M10 x 25 MM	2
27	12 793 502 Exhaust pipe clamp A19DTR	Exhaust pipe clamp	A19DTR	2
28	55 353 932 55 564 198 Hose clamp A19DTR	Hose clamp	A19DTR	1
