Question 1

Where to find the exploded diagram for Cooling system on my Saab 9-3 (9440) 2012?

Accepted Answer

Find on Saabiste.net the complete and official interactive technical diagram for Cooling system on Saab 9-3 (9440) 2012. All components are detailed with their original SAAB OEM references.

Question 2

How do I identify a specific Saab reference in the section Cooling system?

Accepted Answer

Each part of the exploded diagram has a numbered marker linked to our parts table. You can click on the visual marker to instantly highlight the corresponding row containing the OEM part number, quantity, and chassis restrictions.

Question 3

How do I copy or use the part number of a component in section Cooling system?

Accepted Answer

Simply click on the monospace part number in the table. Saabiste will instantly copy the OEM part number to your clipboard to make it easier for you to search at your Saab parts suppliers.

Question 4

What does NLS mean in the Saab 9-3 (9440) catalog?

Accepted Answer

NLS stands for "No Longer Serviced". For these discontinued original parts in the section Cooling system, Saabiste displays, whenever available, the official replacement reference recommended by the manufacturer.

Question 5

Are the parts in this section Cooling system suitable for left-hand drive (LHD) or right-hand drive (RHD)?

Accepted Answer

Steering compatibilities are shown in the restrictions column of the parts table. You can also use the global EPC filters to hide part variants that are incompatible with your Saab's steering type (LHD/RHD).

Pos.	Part No.	Description	Usage	Qty
1	12 803 388 Hydraulic hose 2004- • PETROL	Hydraulic hose	2004- PETROL	1
2	24 456 963 Clip PETROL	Clip	PETROL	1
3	22 652 153 Stud PETROL	Stud	PETROL	1
5	24 205 103 Clip PETROL	Clip	PETROL	2
6	55 352 213 93 183 012 Sealing ring PETROL	Sealing ring	PETROL	2
6	93 183 012 Sealing ring PETROL	Sealing ring	PETROL	2

Pos.	Part No.	Description	Usage	Qty
1	12 803 388 Hydraulic hose 2004- • PETROL	Hydraulic hose	2004- PETROL	1
2	24 456 963 Clip PETROL	Clip	PETROL	1
3	22 652 153 Stud PETROL	Stud	PETROL	1
5	24 205 103 Clip PETROL	Clip	PETROL	2
6	55 352 213 93 183 012 Sealing ring PETROL	Sealing ring	PETROL	2
6	93 183 012 Sealing ring PETROL	Sealing ring	PETROL	2

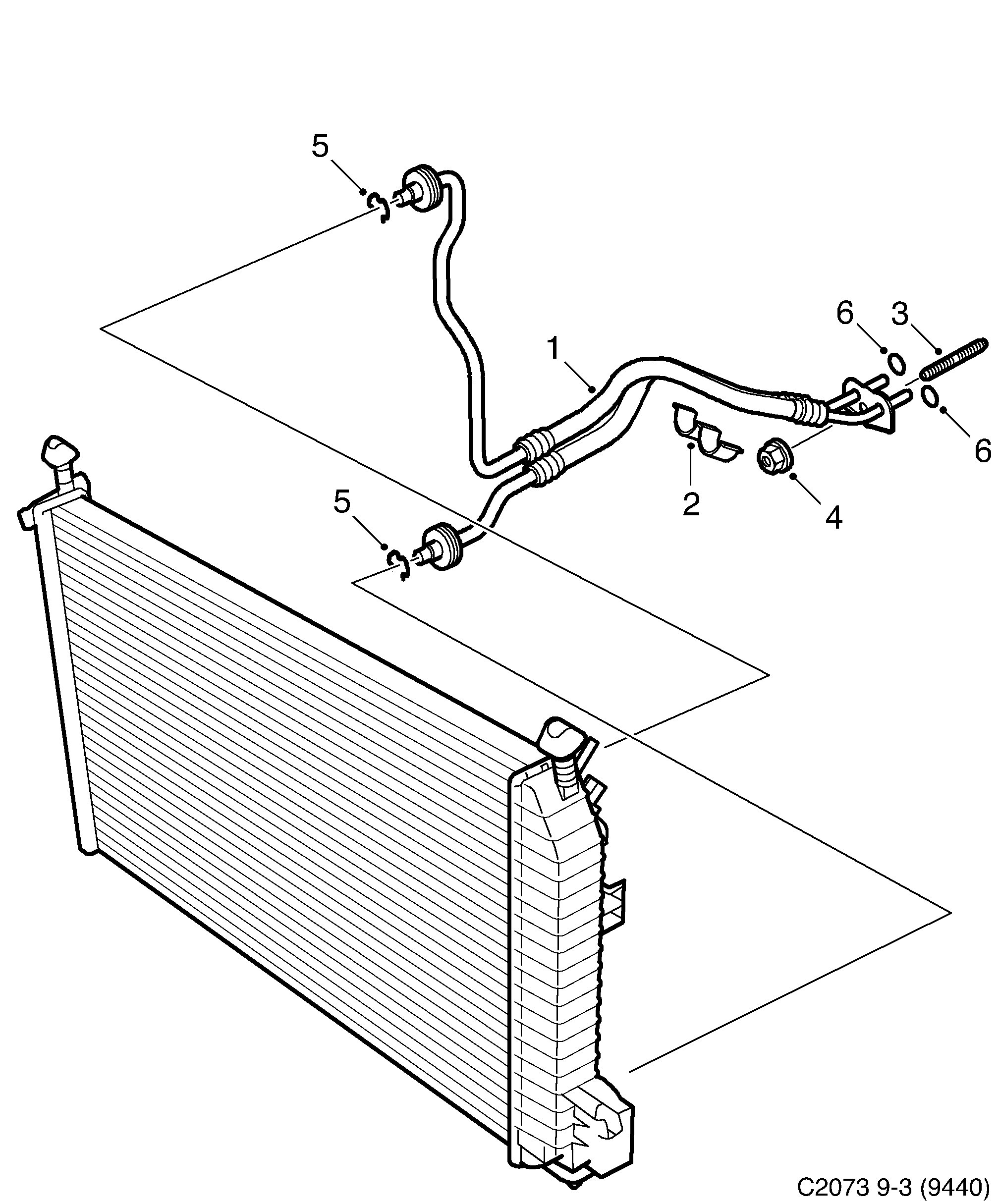

5600: Engine - Cooling system - Oil cooler
