Question 1

Where to find the exploded diagram for Lighting on my Saab 9-3 (9440) 2012?

Accepted Answer

Find on Saabiste.net the complete and official interactive technical diagram for Lighting on Saab 9-3 (9440) 2012. All components are detailed with their original SAAB OEM references.

Question 2

How do I identify a specific Saab reference in the section Lighting?

Accepted Answer

Each part of the exploded diagram has a numbered marker linked to our parts table. You can click on the visual marker to instantly highlight the corresponding row containing the OEM part number, quantity, and chassis restrictions.

Question 3

How do I copy or use the part number of a component in section Lighting?

Accepted Answer

Simply click on the monospace part number in the table. Saabiste will instantly copy the OEM part number to your clipboard to make it easier for you to search at your Saab parts suppliers.

Question 4

What does NLS mean in the Saab 9-3 (9440) catalog?

Accepted Answer

NLS stands for "No Longer Serviced". For these discontinued original parts in the section Lighting, Saabiste displays, whenever available, the official replacement reference recommended by the manufacturer.

Question 5

Are the parts in this section Lighting suitable for left-hand drive (LHD) or right-hand drive (RHD)?

Accepted Answer

Steering compatibilities are shown in the restrictions column of the parts table. You can also use the global EPC filters to hide part variants that are incompatible with your Saab's steering type (LHD/RHD).

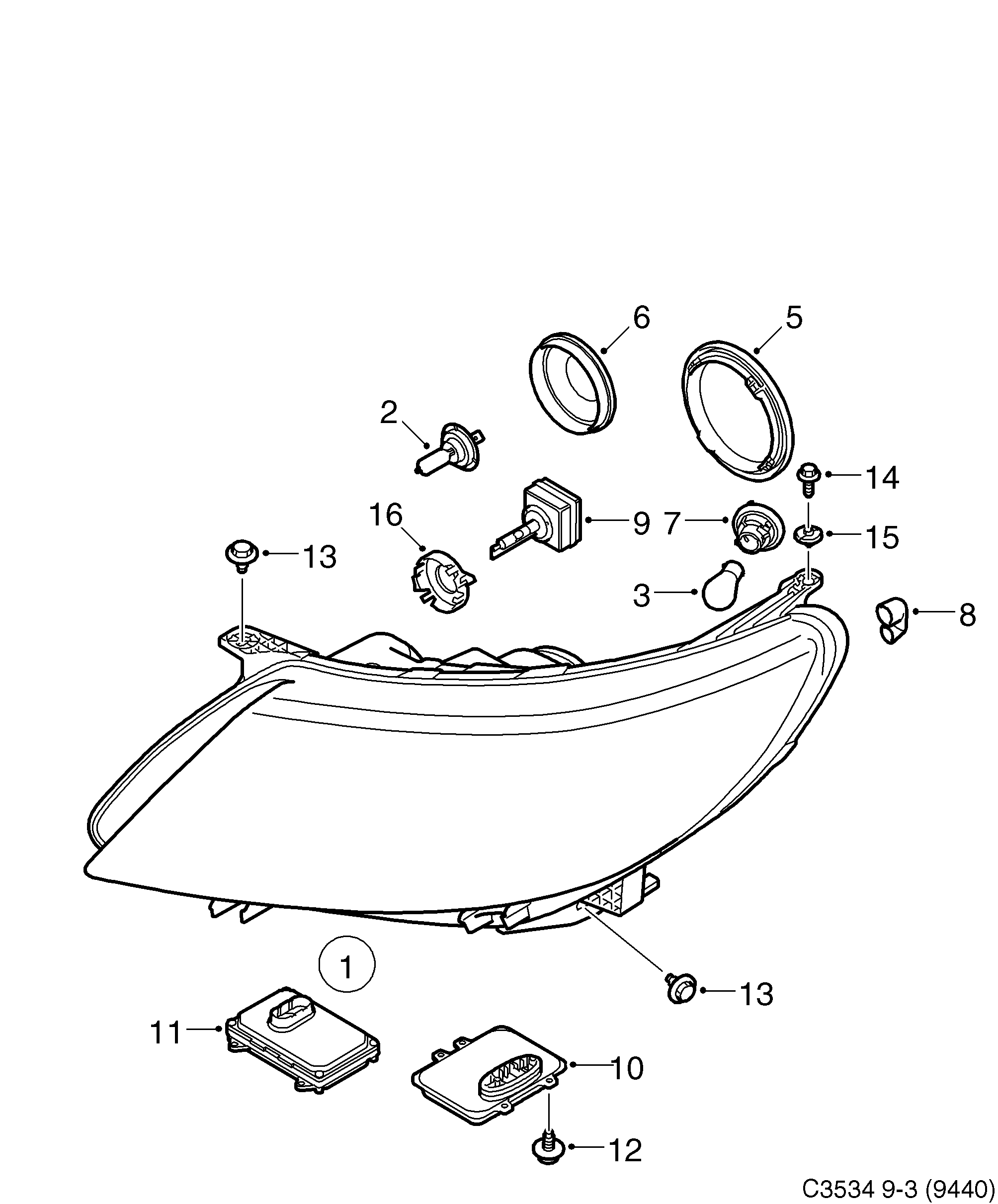

Pos.	Part No.	Description	Usage	Qty
2	12 795 068 93 169 007 Bulb H7 12V/55W	Bulb	H7 12V/55W	1
3	12 795 069 93 190 465 Bulb direction indicators	Bulb	direction indicators	1
3	93 190 465 Bulb direction indicators	Bulb	direction indicators	1
5	12 778 690 Cap blanking	Cap blanking		1
6	12 790 579 Cover	Cover		1
7	93 180 296 Socket, bulb	Socket, bulb		1
8	12 843 636 Grommet T-Shape	Grommet	T-Shape	1
8	12 843 637 Grommet L-Shape	Grommet	L-Shape	1
9	93 175 452 93 169 040 Bulb XENON	Bulb	XENON	1
10	12 767 670 Control unit XENON	Control unit	XENON	1
11	12 778 685 Control unit Adaptive forward lighting	Control unit	Adaptive forward lighting	1
12	12 778 686 Screw Not as separate spare...	Screw	Not as separate spare...	X
13	11 900 322 Screw M6X16	Screw	M6X16	4
13	11 900 327 Screw M6 X 40	Screw	M6 X 40	4
14	24 413 560 Screw	Screw		2
15	13 220 770 Clamp nut	Clamp nut		2
16	12 767 661 Socket, bulb XENON	Socket, bulb	XENON	1

Pos.	Part No.	Description	Usage	Qty
2	12 795 068 93 169 007 Bulb H7 12V/55W	Bulb	H7 12V/55W	1
3	12 795 069 93 190 465 Bulb direction indicators	Bulb	direction indicators	1
3	93 190 465 Bulb direction indicators	Bulb	direction indicators	1
5	12 778 690 Cap blanking	Cap blanking		1
6	12 790 579 Cover	Cover		1
7	93 180 296 Socket, bulb	Socket, bulb		1
8	12 843 636 Grommet T-Shape	Grommet	T-Shape	1
8	12 843 637 Grommet L-Shape	Grommet	L-Shape	1
9	93 175 452 93 169 040 Bulb XENON	Bulb	XENON	1
10	12 767 670 Control unit XENON	Control unit	XENON	1
11	12 778 685 Control unit Adaptive forward lighting	Control unit	Adaptive forward lighting	1
12	12 778 686 Screw Not as separate spare...	Screw	Not as separate spare...	X
13	11 900 322 Screw M6X16	Screw	M6X16	4
13	11 900 327 Screw M6 X 40	Screw	M6 X 40	4
14	24 413 560 Screw	Screw		2
15	13 220 770 Clamp nut	Clamp nut		2
16	12 767 661 Socket, bulb XENON	Socket, bulb	XENON	1

770: Electrical, general - Lighting - Headlamp - Adaptive forward lighting
