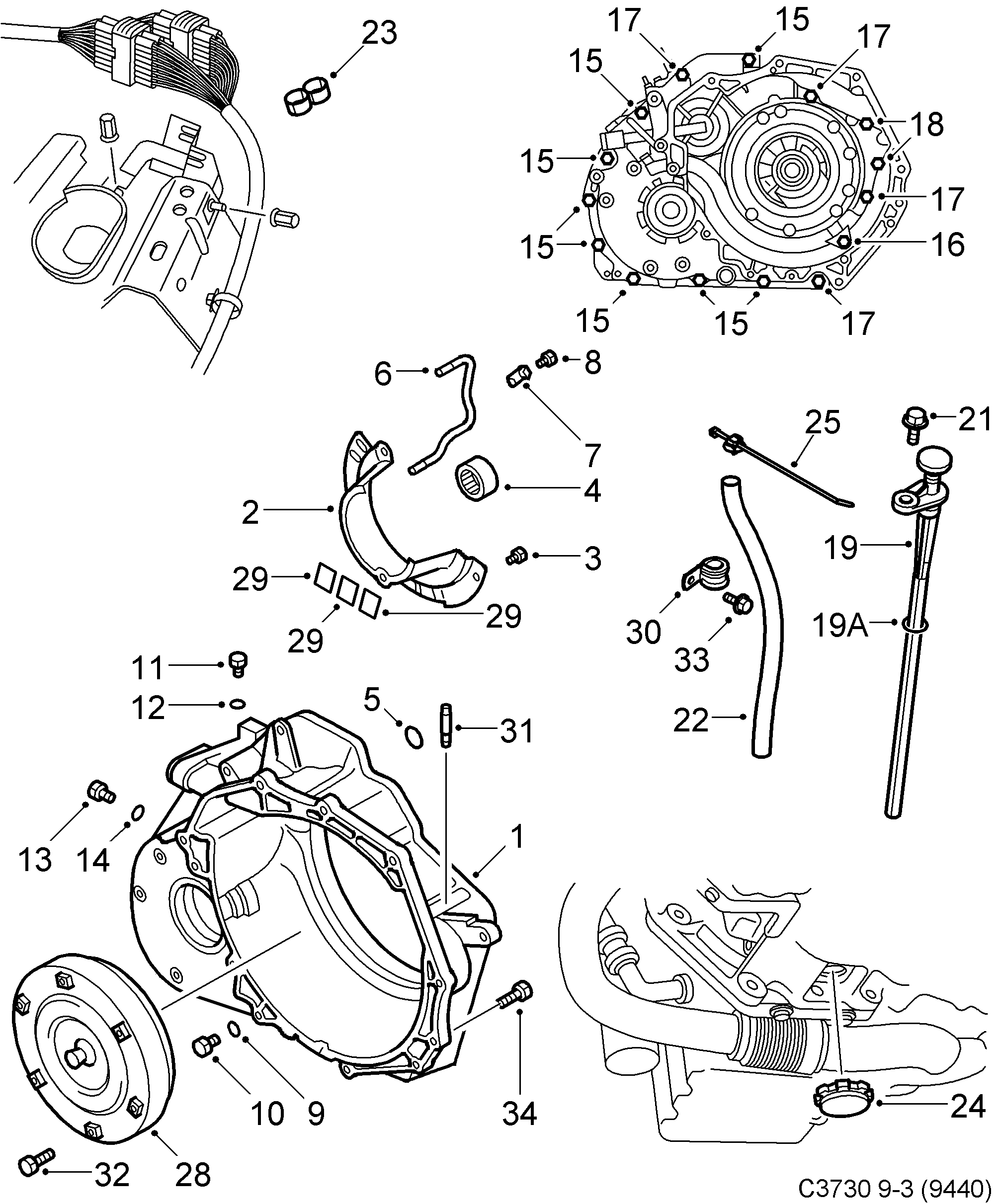

6100: Transmission - Gearbox, automatic - Converter shell - Torque converter
(2003 - 2012 | A) | For 9-3 (9440) (2012)
100%
| Pos. | Part No. | Qty | |
|---|---|---|---|
Gearbox, automaticGear box assembly Gearbox: 01, A | |||
| 1 | 55 352 385 Converter shell | 1 | |
| 1 | 93 167 064 Housing | 1 | |
| 2 | 93 177 572 Splash guard | 1 | |
| 3 | 90 541 875 Screw | 3 | |
| 4 | 93 743 512 Roller bearing | 1 | |
| 5 | 90 348 707 O-ring | 1 | |
| 6 | 93 177 626 Tube | 1 | |
| 7 | 55 352 196 Clamp | 1 | |
| 8 | 90 541 875 Screw | 1 | |
| 9 | 90 348 710 O-ring | 1 | |
| 10 | 90 348 711 Plug Oil Drain plug | 1 | |
| 11 | 90 007 874 Plug | 1 | |
| 12 | 90 007 873 O-ring | 1 | |
| 13 | 90 348 712 11 099 271 Plug | 1 | |
| 14 | 90 348 713 O-ring | 1 | |
| 15 | 90 399 332 Screw | 8 | |
| 16 | 90 399 339 Screw | 1 | |
| 17 | 90 541 878 Screw | 4 | |
| 18 | 90 541 879 Screw | 2 | |
| 19 | 93 173 894 Dipstick | 1 | |
| 19A | 93 173 895 O-ring | 1 | |
| 21 | 55 352 506 Nut | 1 | |
| 22 | 12 785 053 Bleeder hose | 1 | |
| 23 | 92 152 223 Clamp | 1 | |
| 24 | 90 375 851 Cover | 1 | |
| 25 | 13 142 312 Retaining strap Vent hose | 1 | |
| 28 | 55 352 466 Torque converter | 1 | |
| 29 | 90 007 865 93 742 869 Magnet | 3 | |
| 30 | 12 789 349 Clamp | 1 | |
| 31 | 55 352 478 90 541 814 Air vent valve | 1 | |
| 31 | 90 541 814 Air vent pipe | 1 | |
| 33 | 11 900 353 Screw | 1 | |
| 34 | 93 190 422 Screw M8X30 | 1 |
