Question 1

Where to find the exploded diagram for Doors, boot lid on my Saab 9-3 (9440) 2012?

Accepted Answer

Find on Saabiste.net the complete and official interactive technical diagram for Doors, boot lid on Saab 9-3 (9440) 2012. All components are detailed with their original SAAB OEM references.

Question 2

How do I identify a specific Saab reference in the section Doors, boot lid?

Accepted Answer

Each part of the exploded diagram has a numbered marker linked to our parts table. You can click on the visual marker to instantly highlight the corresponding row containing the OEM part number, quantity, and chassis restrictions.

Question 3

How do I copy or use the part number of a component in section Doors, boot lid?

Accepted Answer

Simply click on the monospace part number in the table. Saabiste will instantly copy the OEM part number to your clipboard to make it easier for you to search at your Saab parts suppliers.

Question 4

What does NLS mean in the Saab 9-3 (9440) catalog?

Accepted Answer

NLS stands for "No Longer Serviced". For these discontinued original parts in the section Doors, boot lid, Saabiste displays, whenever available, the official replacement reference recommended by the manufacturer.

Question 5

Are the parts in this section Doors, boot lid suitable for left-hand drive (LHD) or right-hand drive (RHD)?

Accepted Answer

Steering compatibilities are shown in the restrictions column of the parts table. You can also use the global EPC filters to hide part variants that are incompatible with your Saab's steering type (LHD/RHD).

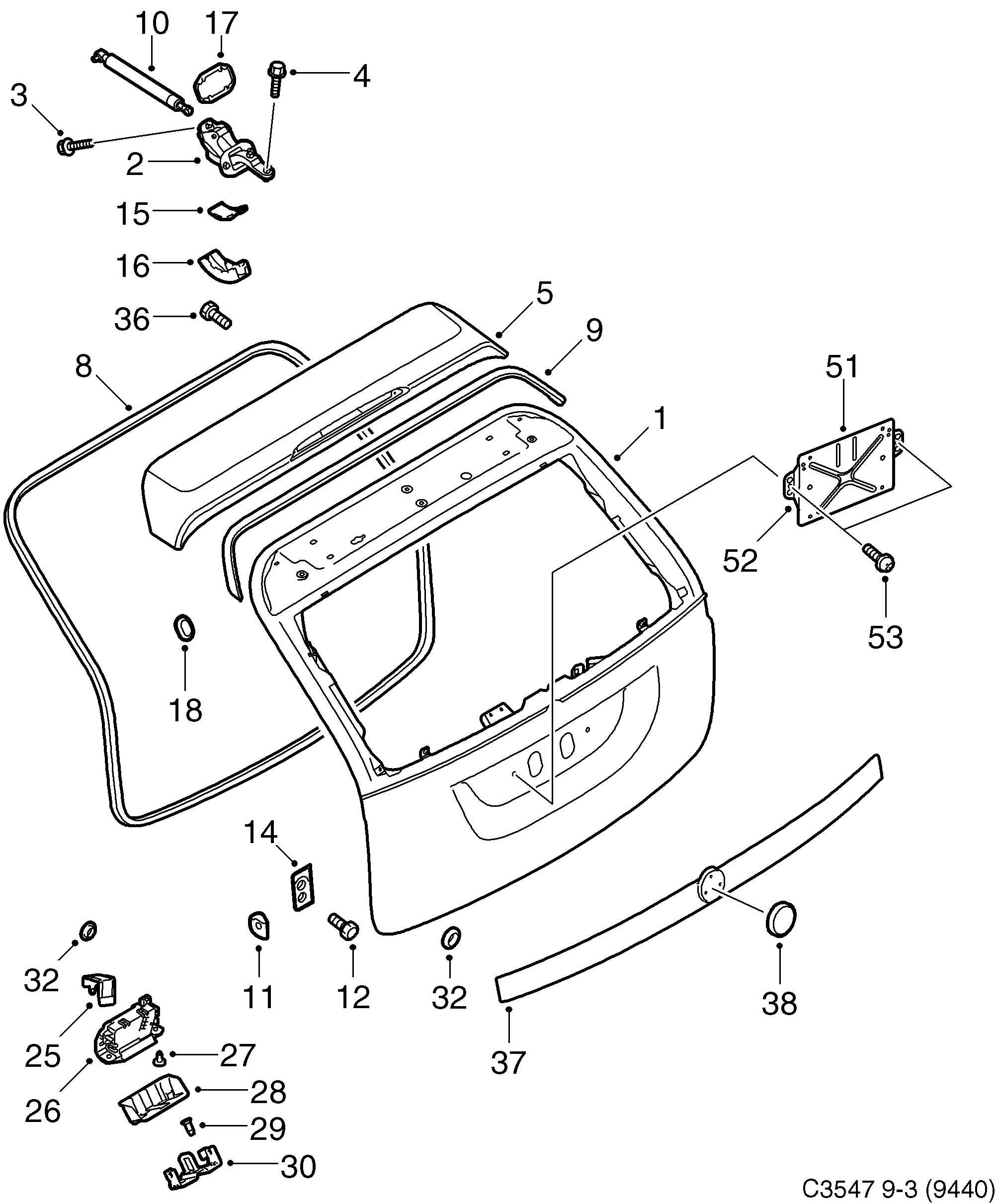

Pos.	Part No.	Description	Usage	Qty
1	93 186 000 Boot lid/Tailgate	Boot lid/Tailgate		1
2	12 771 785 Hinge 2006- • LH	Hinge	2006- LH	1
2	12 771 969 Hinge 2006- • RH	Hinge	2006- RH	1
5	Roof spoilerExternal details Kit	Roof spoilerExternal details Kit
9	12 791 801 Seal For tailgate aperture	Seal	For tailgate aperture	1
10	12 778 556 Damper 2008-	Damper	2008-	2
14	12 794 472 Pad	Pad		2
15	12 792 034 Cover	Cover		2
16	12 792 032 Cover	Cover		2
17	12 791 802 Seal LH	Seal	LH	1
17	12 795 203 Seal RH	Seal	RH	1
18	12 794 953 Plug	Plug		2
25	12 767 824 Bracket	Bracket		1
26	13 188 852 Lock Name of the substance...	Lock	Name of the substance...	1
28	12 762 210 Cover	Cover		1
29	92 152 010 Screw	Screw		2
30	13 203 495 Lock brace	Lock brace		1
32	24 436 714 Plug	Plug		1
37	Sign lampWiring and fuses	Sign lampWiring and fuses
38	EmblemDoors, boot lid	EmblemDoors, boot lid
51	24 417 127 Damper strip Number plate rear	Damper strip	Number plate rear	1
52	12 786 338 Bracket	Bracket		1
53	92 150 065 92 151 601 Screw	Screw		2

Pos.	Part No.	Description	Usage	Qty
1	93 186 000 Boot lid/Tailgate	Boot lid/Tailgate		1
2	12 771 785 Hinge 2006- • LH	Hinge	2006- LH	1
2	12 771 969 Hinge 2006- • RH	Hinge	2006- RH	1
5	Roof spoilerExternal details Kit	Roof spoilerExternal details Kit
9	12 791 801 Seal For tailgate aperture	Seal	For tailgate aperture	1
10	12 778 556 Damper 2008-	Damper	2008-	2
14	12 794 472 Pad	Pad		2
15	12 792 034 Cover	Cover		2
16	12 792 032 Cover	Cover		2
17	12 791 802 Seal LH	Seal	LH	1
17	12 795 203 Seal RH	Seal	RH	1
18	12 794 953 Plug	Plug		2
25	12 767 824 Bracket	Bracket		1
26	13 188 852 Lock Name of the substance...	Lock	Name of the substance...	1
28	12 762 210 Cover	Cover		1
29	92 152 010 Screw	Screw		2
30	13 203 495 Lock brace	Lock brace		1
32	24 436 714 Plug	Plug		1
37	Sign lampWiring and fuses	Sign lampWiring and fuses
38	EmblemDoors, boot lid	EmblemDoors, boot lid
51	24 417 127 Damper strip Number plate rear	Damper strip	Number plate rear	1
52	12 786 338 Bracket	Bracket		1
53	92 150 065 92 151 601 Screw	Screw		2

1075: Car body, external - Doors, boot lid - Tailgate - lock
