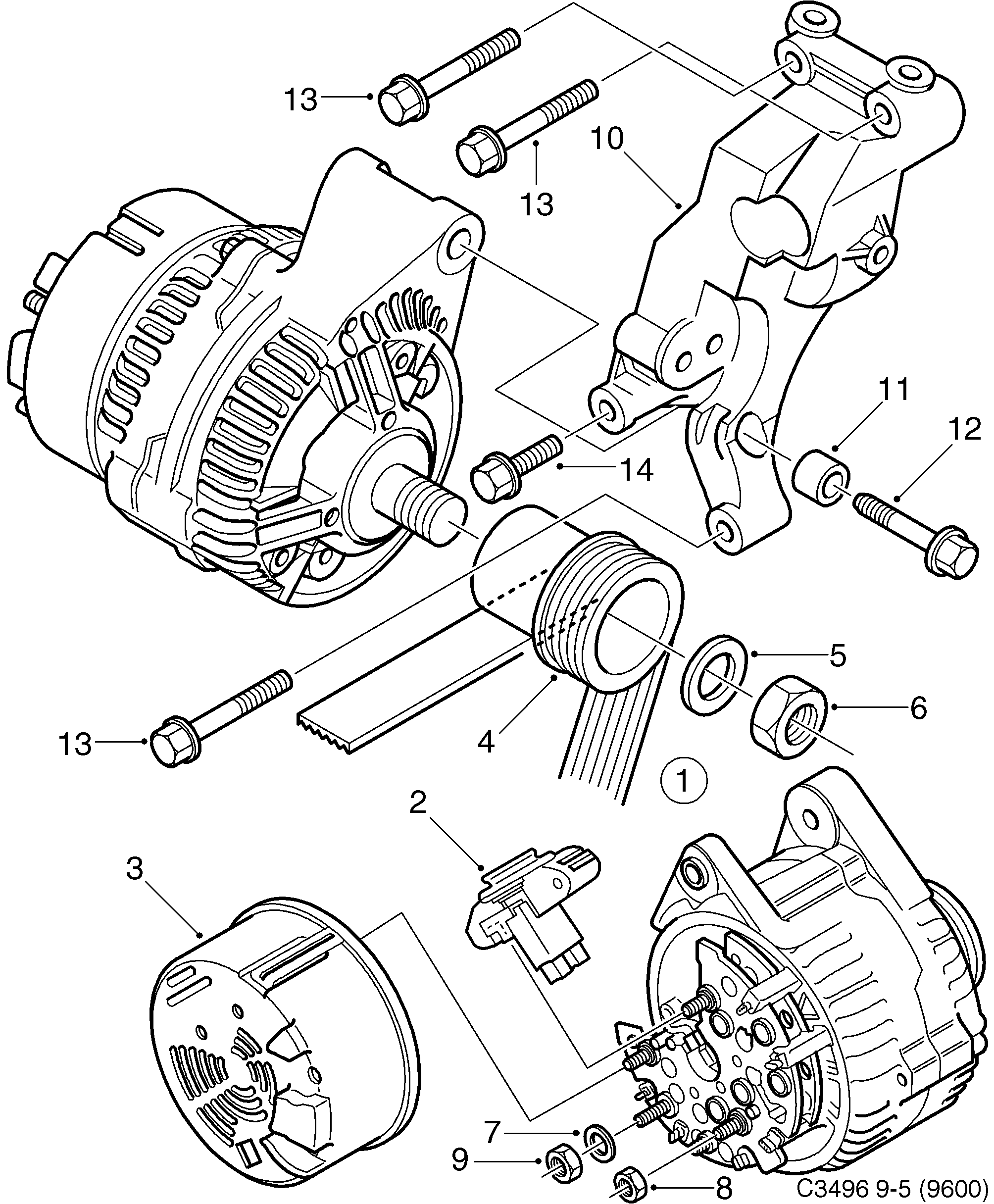

130: Electrical, general - Generator
(1998 - 2010 | PETROL) | For 9-5 (9600) (1998)
100%
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 49 41 761 56 01 307 Generator -2000 • PETROL • 130 A | Also... | 1 | |
| 2 | 47 37 151 52 46 863 Voltage regulator -2000 • PETROL • 130 A | 1 | |
| 3 | 56 03 980 Protection -2001 • PETROL | 1 | |
| 4 | 30 550 932 12 770 125 Pulley 1998-2006 • PETROL | 1 | |
| 5 | 44 89 316 Washer PETROL | 1 | |
| 6 | 44 89 308 Nut PETROL | 1 | |
| 7 | 73 11 764 Washer PETROL | 1 | |
| 8 | 11 900 450 32 026 207 Nut PETROL | 1 | |
| 9 | 79 77 952 11 900 452 Hexagon nut 1998-2002 • PETROL | 1 | |
| 10 | 46 70 493 Bracket -1999 • PETROL | 1 | |
| 12 | 55 562 633 Screw PETROL | 2 | |
| 13 | 79 82 119 11 900 373 Screw 1998-2006 • PETROL • Bracket to engine | 3 | |
| 14 | 92 150 015 11 900 367 Screw 1998-2005 • PETROL • Bracket to engine | 1 |
