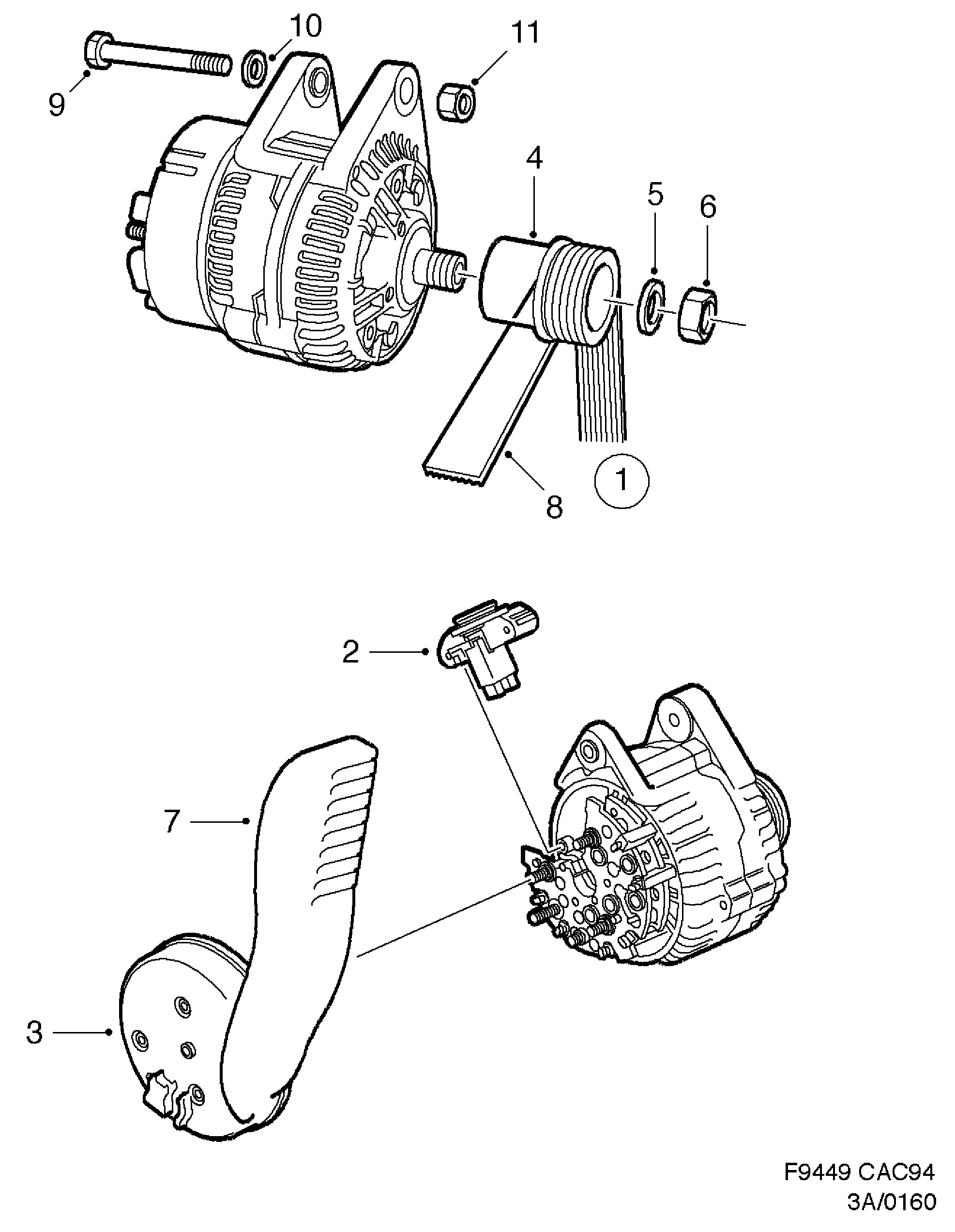

160: Electrical, general - Generator
(1998 - 2003 | B308E, B308I) | For 9-5 (9600) (1998)
100%
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 49 29 451 52 48 794 Generator -2000 • B308E, B308I • Also available as exchange... | 1 | |
| 2 | 47 37 151 52 46 863 Voltage regulator -2000 • B308E, B308I | 1 | |
| 3 | 49 41 753 49 49 061 Protection -1998 • B308E, B308I | 1 | |
| 3 | 49 49 061 Protection 1999-2003 • B308E, B308I | 1 | |
| 4 | 44 66 900 54 77 807 Pulley -1998 • B308E, B308I | 1 | |
| 4 | 51 00 813 54 77 807 Pulley 1999-2003 • B308E, B308I | 1 | |
| 5 | 44 89 316 Washer B308E, B308I | 1 | |
| 6 | 44 89 308 Nut B308E, B308I | 1 | |
| 7 | 49 27 513 Cover -2003 • B308E, B308I | 1 | |
| 8 | BeltShort block B308E, B308I | ||
| 9 | 79 79 263 Screw B308E, B308I | 1 | |
| 10 | 80 73 108 Washer B308E, B308I | 1 | |
| 11 | 81 51 474 92 153 199 Lock nut B308E, B308I | 1 |
