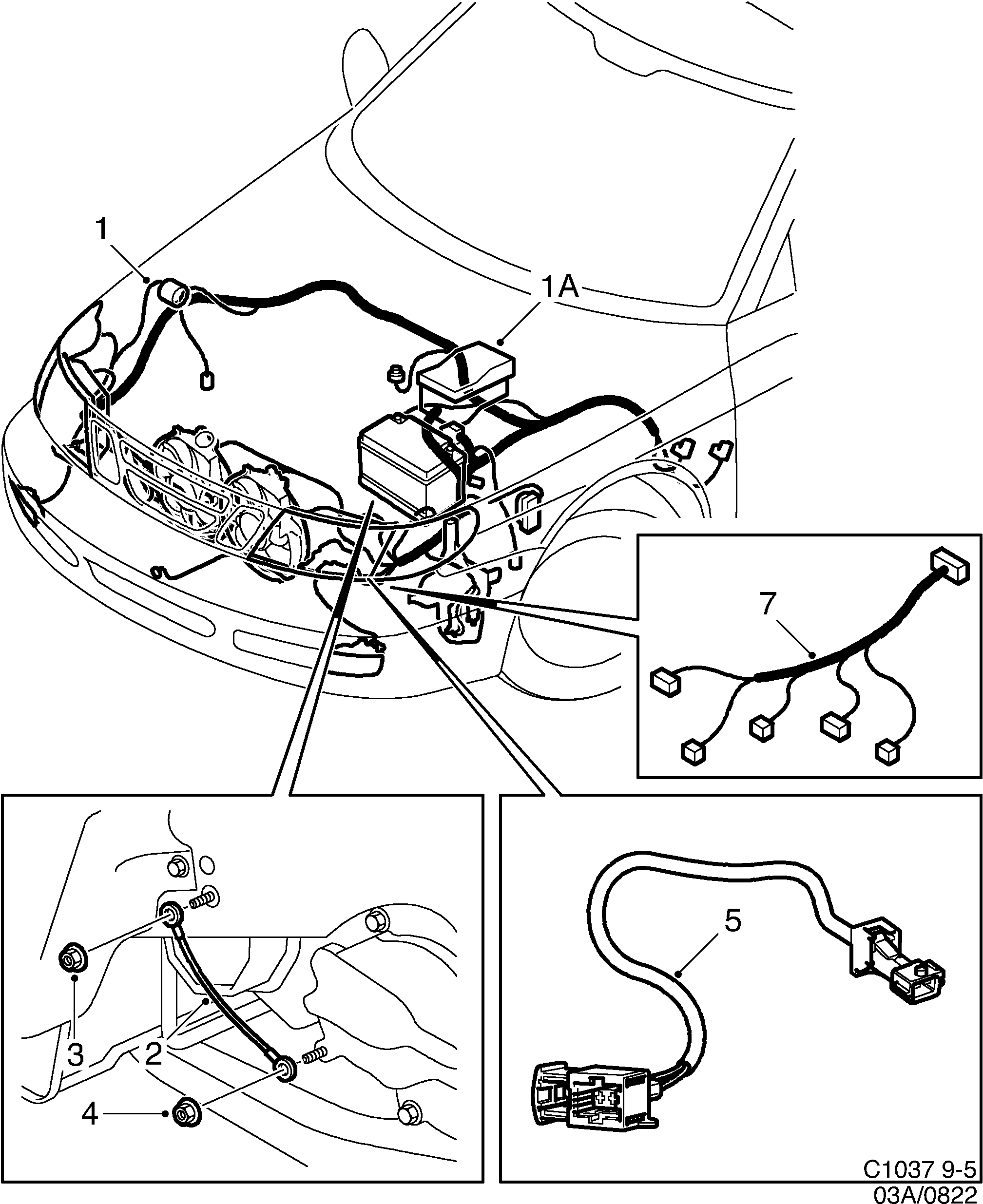

822: Electrical, general - Wiring and fuses - Front
(1999) | For 9-5 (9600) (1999)
100%
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 49 49 699 Cable harness 1999-, LHD | 1 | |
| 1 | 49 49 707 Cable harness RHD | 1 | |
| 1 | 49 49 731 Cable harness LHD • For cars without headlamp... | 1 | |
| 1 | 49 49 715 Cable harness LHD | 1 | |
| 1 | 49 49 749 Cable harness RHD • For cars without headlamp... | 1 | |
| 1 | 49 49 723 Cable harness RHD | 1 | |
| 1 | 49 46 513 Cable harness -1999, LHD | 1 | |
| 1A | Relay boxElectric equipment, other | ||
| 2 | 48 12 541 54 76 486 Ground cable gearbox wheel housing | 1 | |
| 3 | 79 77 952 11 900 452 Hexagon nut | 1 | |
| 4 | 79 77 929 11 900 451 Nut | 1 | |
| 5 | 48 06 428 Cable harness B205, B235 • vacuum pump | 1 | |
| 7 | 51 00 425 Cable harness connection bumper fog-lights outer... | 1 | |
| 7 | 51 00 433 Cable harness 1999- • With corner lights. connection... | 1 |
