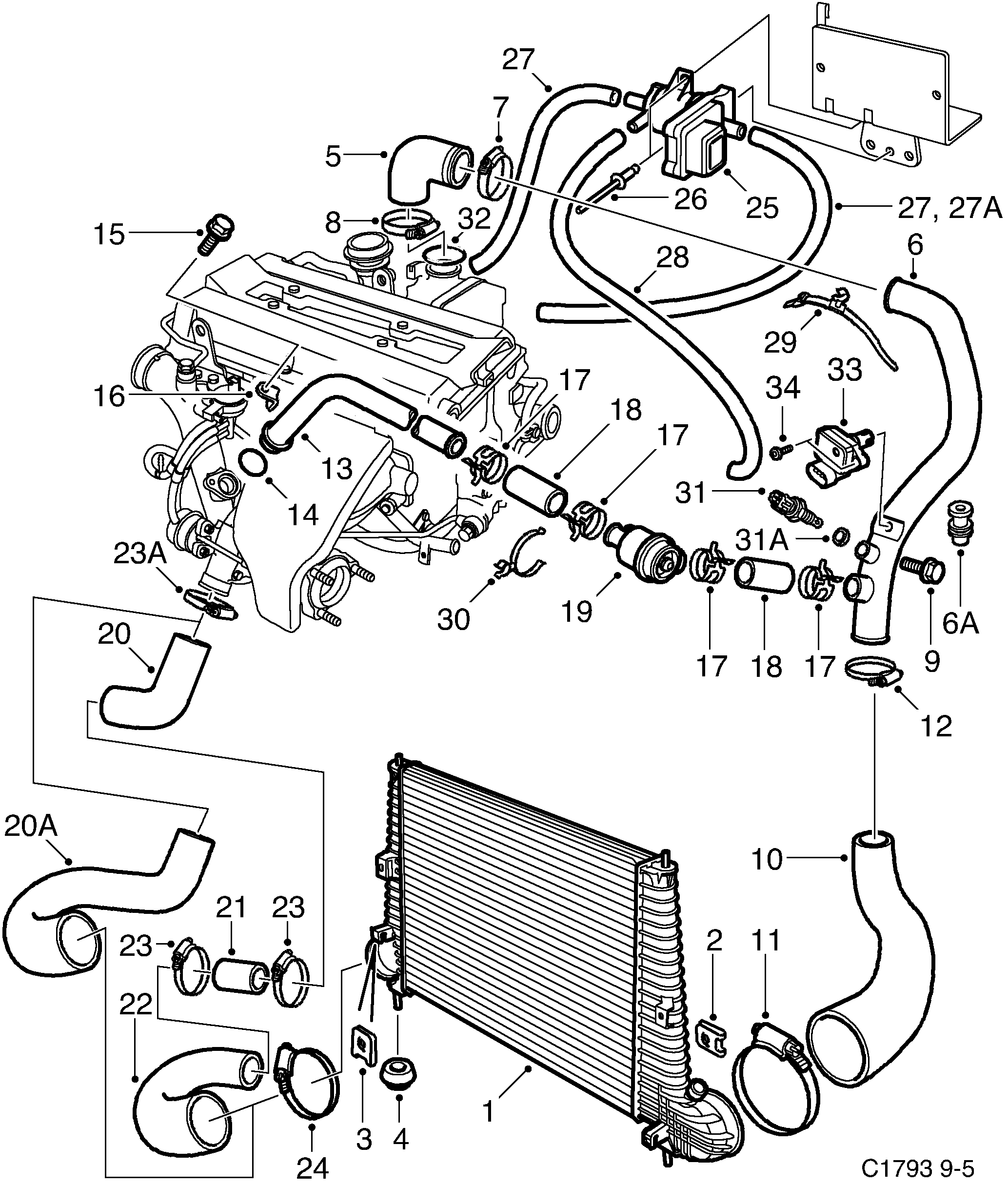

1000: Engine - Cooling system - Charge air cooler
(1998 - 2010 | PETROL) | For 9-5 (9600) (2000)
100%
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 45 76 039 Charge air cooler PETROL | 1 | |
| 2 | 82 67 098 Clip PETROL • AC/ACC | 2 | |
| 3 | 82 67 098 Clip PETROL | 2 | |
| 4 | 42 83 594 90 091 989 Rubber bushing PETROL | 2 | |
| 6 | 47 53 828 Charge air pipe 1999-2000 • PETROL | 1 | |
| 8 | 49 40 144 Hose clamp 1999-2010 • PETROL | 1 | |
| 9 | 79 78 190 55 566 034 Screw PETROL | 1 | |
| 10 | 49 66 701 Charge air hose 2000-2010 • PETROL • Name of the substance... | 1 | |
| 11 | 79 70 155 92 153 080 Hose clamp 1998-2006 • PETROL | 1 | |
| 12 | 92 150 221 92 153 077 Hose clamp 1998-2004 • PETROL | 1 | |
| 13 | 47 53 869 Tube 1999-2010 • PETROL | 1 | |
| 14 | 79 85 781 79 87 415 O-ring -2001 • PETROL | 1 | |
| 15 | 92 150 001 11 900 353 Screw 1998-2006 • PETROL | 1 | |
| 16 | 46 70 352 Clamp PETROL | 1 | |
| 17 | 90 571 576 Hose clamp PETROL | 4 | |
| 18 | 75 91 936 Hose PETROL | 2 | |
| 19 | 44 41 895 By-pass valve PETROL | 1 | |
| 20A | 49 66 735 Air hose 2000-2010 • PETROL | 1 | |
| 23A | 79 70 130 92 153 077 Hose clamp PETROL | 1 | |
| 24 | 79 70 148 92 153 079 Hose clamp PETROL | 1 | |
| 25 | 91 89 002 55 562 854 Vacuum valve 1998-2006 • PETROL | 1 | |
| 26 | 92 150 179 92 153 060 Rivet 1998-2006 • PETROL | 2 | |
| 27 | 91 36 243 Vacuum hose 2002-2002 • PETROL • L=330 MM | Sold... | 2 | |
| 28 | 91 36 243 Vacuum hose PETROL • L=850 MM | Sold... | 1 | |
| 29 | 73 98 977 Tensioning band PETROL | 2 | |
| 30 | 73 98 407 Clamp PETROL | 1 | |
| 31 | 91 74 442 Intake air temperature sensor 1998-2000 • PETROL | 1 | |
| 31A | 41 61 261 Washer 1998-2000 • PETROL | 1 | |
| 32 | 49 40 698 O-ring 1998- • PETROL | 1 |
