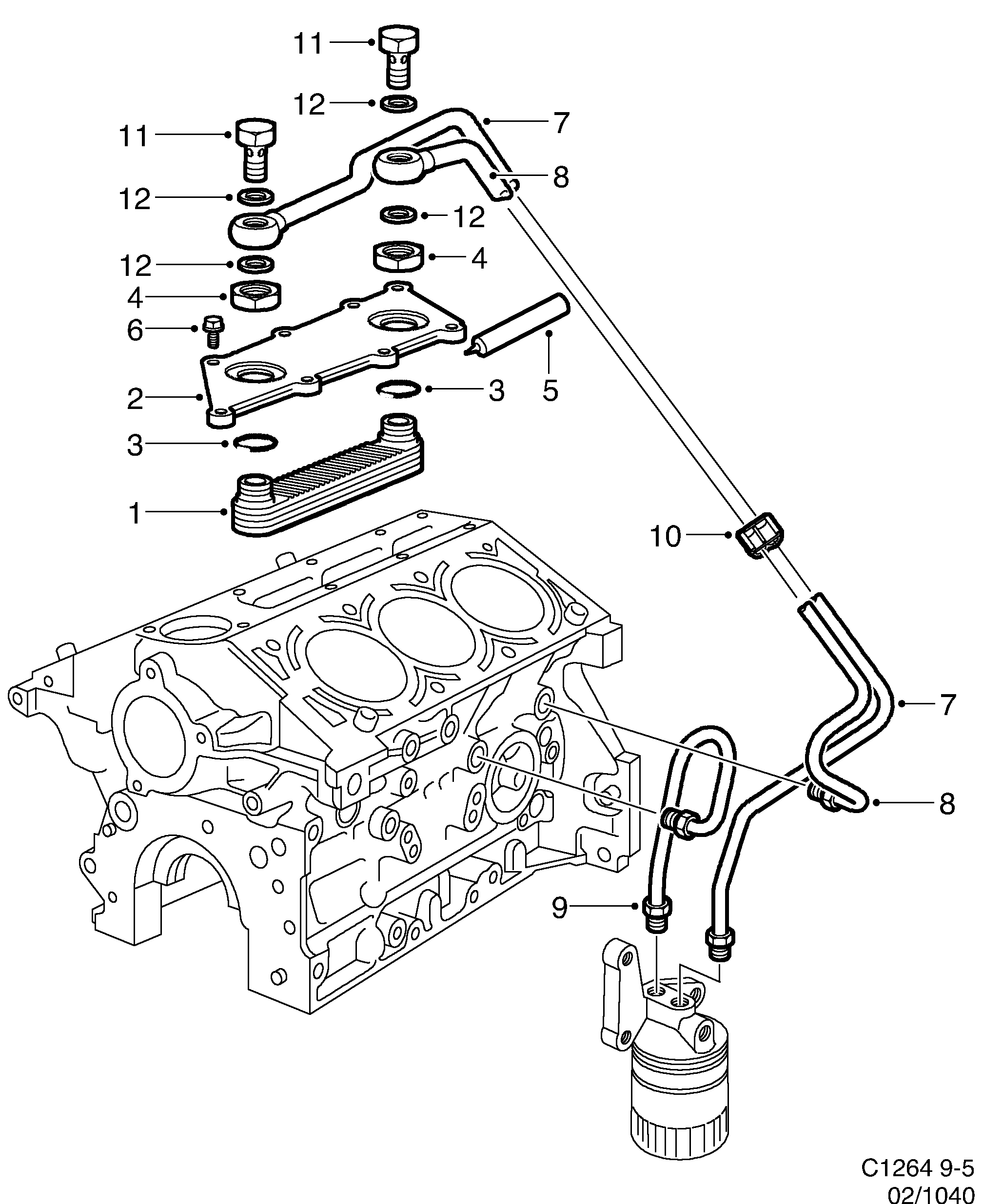

1040: Engine - Cooling system - Oil cooler
(1998 - 2003 | B308E) | For 9-5 (9600) (2000)
100%
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 47 70 988 Oil cooler B308E | 1 | |
| 2 | 47 70 152 90 501 955 Cover B308E | 1 | |
| 3 | 45 02 472 90 409 175 Seal B308E | 2 | |
| 4 | 45 02 480 90 409 174 Nut B308E | 2 | |
| 5 | 47 70 202 93 165 267 Flange sealant -2003 • B308E | X | |
| 6 | 94 83 652 11 098 931 Screw B308E | 8 | |
| 7 | 91 85 802 90 490 520 Tube 1999-2003 • B308E | 1 | |
| 8 | 46 20 282 92 40 164 Oil pipe 1998-2000 • B308E | 1 | |
| 9 | 91 71 158 90 490 195 Tube B308E | 1 | |
| 10 | 90 502 262 Bracket B308E • (46 21 421) | 1 | |
| 11 | 46 21 397 90 500 651 Hollow screw -2003 • B308E | 2 | |
| 12 | 46 21 413 Sealing ring B308E | 4 |
