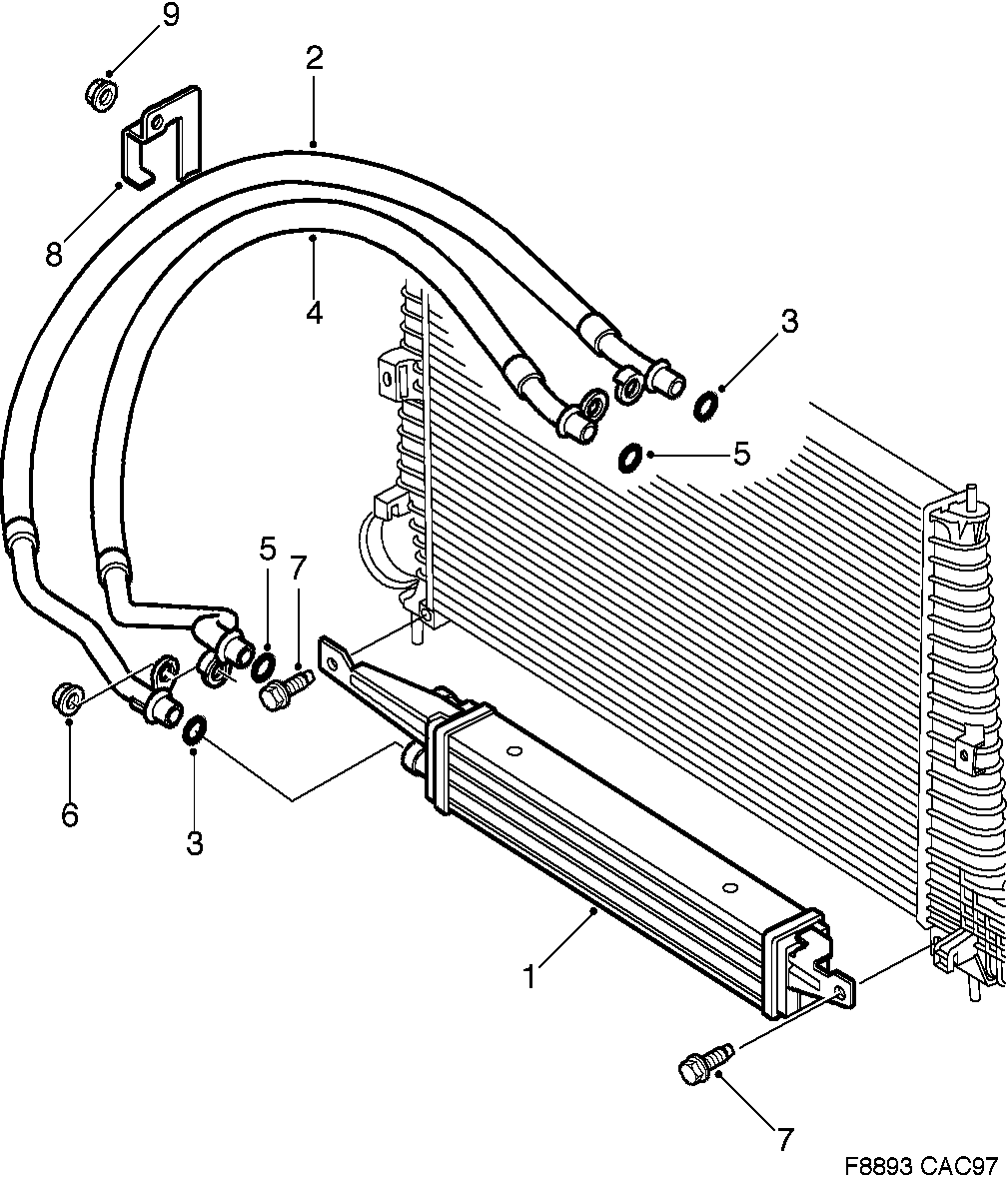

Pos.	Part No.	Description	Usage	Qty
1	47 29 620 Oil cooler PETROL	Oil cooler	PETROL	1
2	47 26 436 12 778 197 Hose 1998-2006 • PETROL	Hose	1998-2006 PETROL	1
3	46 85 244 O-ring PETROL	O-ring	PETROL	2
4	47 26 428 12 778 196 Hose 1998-2006 • PETROL	Hose	1998-2006 PETROL	1
5	46 85 244 O-ring PETROL	O-ring	PETROL	2
6	92 150 147 11 900 435 Nut 1998-2007 • PETROL	Nut	1998-2007 PETROL	2
7	79 76 947 92 153 150 Screw 1998-2006 • PETROL	Screw	1998-2006 PETROL	2
8	47 26 345 Bracket PETROL	Bracket	PETROL	1
9	79 77 952 11 900 452 Hexagon nut PETROL	Hexagon nut	PETROL	1
10	Intermediate sectionShort block 1998-2001 • PETROL • Chassis No.: --13056870, --13056870	Intermediate sectionShort block 1998-2001 • PETROL • Chassis No.: --13056870, --13056870

Pos.	Part No.	Description	Usage	Qty
1	47 29 620 Oil cooler PETROL	Oil cooler	PETROL	1
2	47 26 436 12 778 197 Hose 1998-2006 • PETROL	Hose	1998-2006 PETROL	1
3	46 85 244 O-ring PETROL	O-ring	PETROL	2
4	47 26 428 12 778 196 Hose 1998-2006 • PETROL	Hose	1998-2006 PETROL	1
5	46 85 244 O-ring PETROL	O-ring	PETROL	2
6	92 150 147 11 900 435 Nut 1998-2007 • PETROL	Nut	1998-2007 PETROL	2
7	79 76 947 92 153 150 Screw 1998-2006 • PETROL	Screw	1998-2006 PETROL	2
8	47 26 345 Bracket PETROL	Bracket	PETROL	1
9	79 77 952 11 900 452 Hexagon nut PETROL	Hexagon nut	PETROL	1
10	Intermediate sectionShort block 1998-2001 • PETROL • Chassis No.: --13056870, --13056870	Intermediate sectionShort block 1998-2001 • PETROL • Chassis No.: --13056870, --13056870

1060: Engine - Cooling system - Oil cooler - Engine
