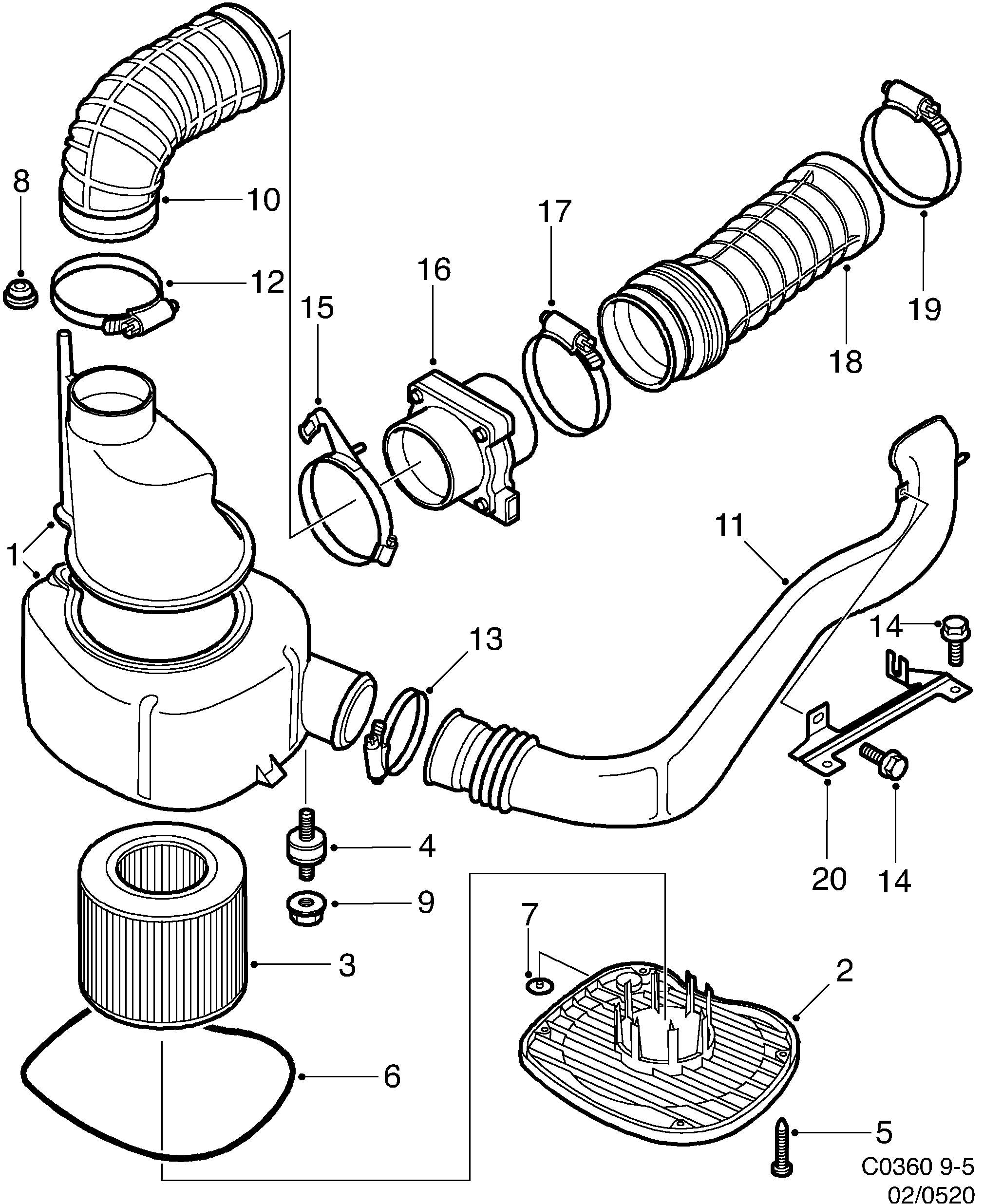

520: Engine - Fuel system - Air cleaner
(1998 - 2010 | PETROL) | For 9-5 (9600) (2000)
100%
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 45 72 509 Air cleaner housing PETROL | 1 | |
| 2 | 45 72 517 Cover PETROL | 1 | |
| 3 | 55 560 911 Air filter 1998-2010 • PETROL | 1 | |
| 4 | 46 71 863 Rubber spacer PETROL | 2 | |
| 5 | 46 71 871 Screw PETROL | 4 | |
| 6 | 48 96 569 O-ring PETROL | 1 | |
| 7 | 48 96 577 Diaphragm PETROL | 1 | |
| 8 | 75 12 593 Rubber bushing PETROL | 1 | |
| 9 | 43 45 138 11 089 471 Hexagon nut PETROL | 2 | |
| 10 | 49 67 543 Air hose 1999- • PETROL | 1 | |
| 11 | 53 27 424 12 846 127 Air inlet 1998-2009 • PETROL • (54 64 821) | 1 | |
| 12 | 79 70 155 92 153 080 Hose clamp PETROL | 1 | |
| 13 | 92 150 222 92 153 079 Hose clamp 1998-2004 • PETROL | 1 | |
| 14 | 79 78 661 Hexagon screw 1999-1999 • PETROL | 3 | |
| 14 | 79 78 653 92 151 891 Screw 1999- • PETROL | 2 | |
| 15 | 48 95 017 Attachment 1998-2006 • PETROL | 1 | |
| 16 | 91 73 386 55 557 008 Mass air flow sensor 1998-2003 • PETROL | 1 | |
| 17 | 24 415 473 Hose clamp 1998-2007 • PETROL | 1 | |
| 18 | 49 67 550 Air hose 1999- • B205, B235 | 1 | |
| 18 | 45 72 616 Hose 1998-2003 • B308 | 1 | |
| 19 | 24 415 470 Hose clamp PETROL | 1 | |
| 20 | 46 70 444 Bracket 1998-2001 • PETROL | 1 |
