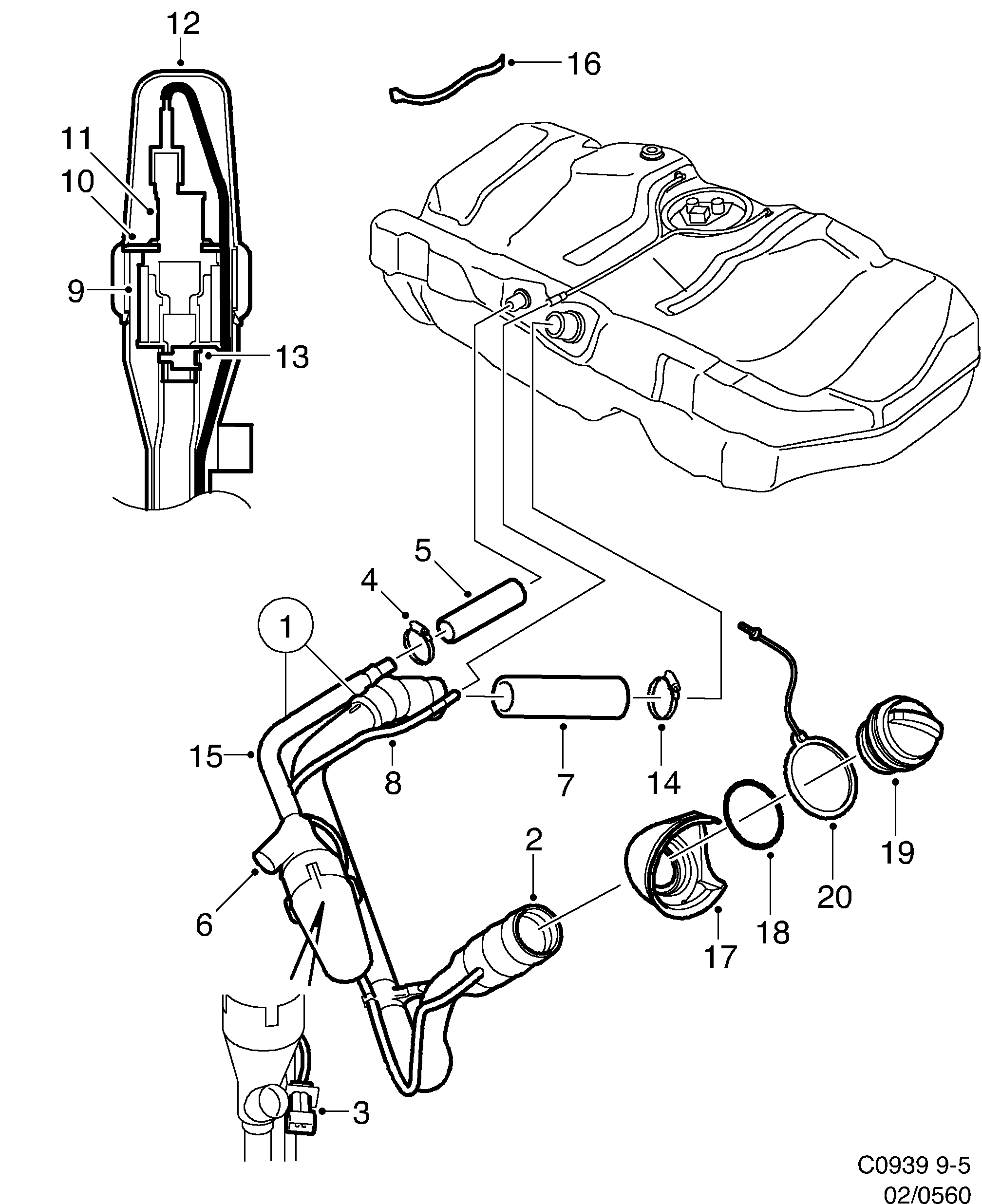

560: Engine - Fuel system - Filler pipe
(2000 - 2005 | PETROL) | For 9-5 (9600) (2000)
100%
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 49 68 582 Filler pipe 2000-2000 • PETROL | 1 | |
| 2 | 49 69 341 Filler pipe -2002 • PETROL • Not as separate spare... | 1 | |
| 3 | 49 65 596 Connection 2000-2000 • PETROL | 1 | |
| 4 | 45 76 583 90 467 194 Hose clamp -2002 • PETROL | 2 | |
| 5 | 49 65 869 Snap-on coupling -2002 • PETROL | 1 | |
| 6 | 48 98 649 Air tube -2002 • PETROL • Not as separate spare... | 1 | |
| 7 | 49 65 570 Hose -2002 • PETROL | 1 | |
| 8 | 49 65 851 Vent hose 2000-2000 • PETROL | 1 | |
| 9 | 47 29 109 Filter -2002 • PETROL | 1 | |
| 10 | 47 28 523 Washer -2002 • PETROL | 1 | |
| 11 | 49 66 826 Shut-off valve 2000-2000 • PETROL | 1 | |
| 12 | 47 28 515 Cover -2002 • PETROL | 1 | |
| 13 | 47 28 531 Filter retainer -2002 • PETROL | 1 | |
| 14 | 49 40 029 Hose clamp -2002 • PETROL | 1 | |
| 15 | 49 65 588 Hose -2002 • PETROL • Not as separate spare... | 1 | |
| 16 | 79 71 872 Tensioning band 2000-2000 • PETROL | 1 | |
Fuel tankFuel system PETROL | 1 | ||
| 17 | 47 26 329 Seal PETROL | 1 | |
| 17 | 47 26 295 Seal 2000-2005 • PETROL | 1 | |
| 18 | 45 77 680 Ring PETROL | 1 | |
| 19 | 47 27 038 Filler cap 2000-2000 • PETROL • Name of the substance... | 1 |
