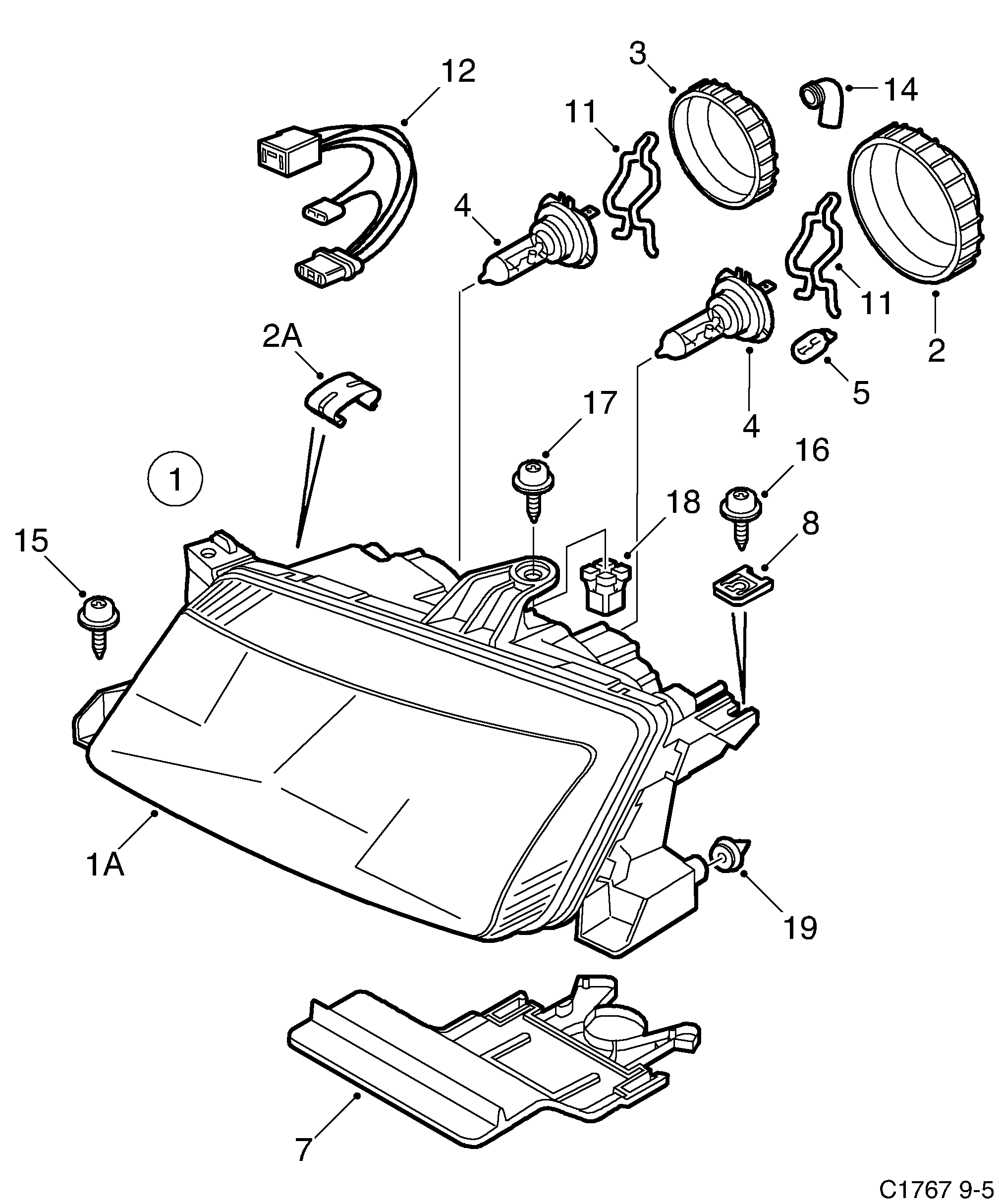

260: Electrical, general - Lighting - Headlamp
(1999 - 2001) | For 9-5 (9600) (2000)
100%
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 52 83 528 Headlamp 2000-2001 • LH | 1 | |
| 1 | 52 83 536 Headlamp 2000-2001 • RH | 1 | |
| 1A | 52 88 972 Headlamp lens LH | 1 | |
47 87 651 Headlamp lens LH | Not as... | 1 | ||
52 88 931 Assembly instructions Not as separate spare... | 1 | ||
| 1A | 52 88 980 Headlamp lens RH | 1 | |
47 87 669 52 88 980 Headlamp lens RH | Not as... | 1 | ||
| 2 | 44 68 153 Cover | 1 | |
| 2A | 44 68 179 Clip | 6 | |
| 3 | 47 87 602 Cover | 1 | |
| 4 | 46 85 202 93 169 007 Bulb | 2 | |
| 5 | 95 12 880 93 190 471 Bulb | 1 | |
| 7 | 47 87 776 Stop LH | 1 | |
| 7 | 47 87 784 Stop RH | 1 | |
| 8 | 44 81 230 Clip | 1 | |
| 11 | 54 00 007 Spring | 2 | |
| 12 | 54 00 015 Cable harness | 1 | |
| 14 | 54 95 742 Bleeder hose | 2 | |
| 15 | 79 84 305 92 152 130 Hexagon screw | 4 | |
| 16 | 79 85 690 Screw | 2 | |
| 17 | 79 85 690 Screw | 2 | |
| 18 | 79 82 655 Press nut | 2 | |
| 19 | 47 87 727 Clip | 1 |
