Pos.	Part No.	Description	Usage	Qty
1	46 77 019 Tail lamp LH	Tail lamp	LH	1
1	46 77 027 Tail lamp RH	Tail lamp	RH	1
1	46 77 035 Tail lamp LHD • LH	Tail lamp	LHD LH	1
1	46 77 043 Tail lamp LHD • RH	Tail lamp	LHD RH	1
2	46 77 050 Socket, bulb LH	Socket, bulb	LH	1
2	46 77 068 Socket, bulb RH	Socket, bulb	RH	1
3	44 68 930 93 190 465 Bulb	Bulb		2
4	43 20 594 93 190 467 Bulb	Bulb		4
4	85 32 756 Bulb LHD	Bulb	LHD	4
5	79 77 929 11 900 451 Nut	Nut		6
6	51 49 810 Lamp 1999-, LHD • LH \| With rear...	Lamp	1999-, LHD LH \| With rear...	1
6	45 61 544 Lamp LHD • RH	Lamp	LHD RH	1
6	51 49 836 Lamp 1998-, RHD • LH	Lamp	1998-, RHD LH	1
6	45 61 569 Lamp RHD • RH \| With rear...	Lamp	RHD RH \| With rear...	1
8	46 77 100 Socket, bulb	Socket, bulb		1
9	71 54 719 93 169 011 Bulb	Bulb		1
10	71 54 719 93 169 011 Bulb With rear fog light.	Bulb	With rear fog light.	1
11	46 77 159 Seal LH	Seal	LH	1
11	46 77 167 Seal RH	Seal	RH	1
12	46 85 343 Washer LH	Washer	LH	1
12B	79 71 658 11 900 428 Nut	Nut		6
13	45 61 577 93 167 196 Handle	Handle		1
14	48 31 236 Socket, bulb	Socket, bulb		2
15	79 22 214 Screw	Screw		4
16	48 32 176 54 92 947 Lens	Lens		2
17	95 12 880 93 190 471 Bulb	Bulb		2
18	48 31 301 Seal	Seal		2
19	48 31 251 Seal Not as separate spare...	Seal	Not as separate spare...	2
20	48 32 192 Seal Not as separate spare...	Seal	Not as separate spare...	2
21	48 31 244 Seal Not as separate spare...	Seal	Not as separate spare...	2
22	79 78 430 92 151 601 Screw	Screw		4
23	79 51 783 Clamp	Clamp		1
24	47 85 226 53 37 985 Stop light	Stop light		1
26	95 12 880 93 190 471 Bulb	Bulb		5
27	79 22 354 92 153 219 Screw	Screw		2
28	79 72 573 92 150 164 Clip nut	Clip nut		2
29	47 85 234 12 777 461 Cover	Cover		1
30	41 52 690 Lens	Lens		1

Pos.	Part No.	Description	Usage	Qty
1	46 77 019 Tail lamp LH	Tail lamp	LH	1
1	46 77 027 Tail lamp RH	Tail lamp	RH	1
1	46 77 035 Tail lamp LHD • LH	Tail lamp	LHD LH	1
1	46 77 043 Tail lamp LHD • RH	Tail lamp	LHD RH	1
2	46 77 050 Socket, bulb LH	Socket, bulb	LH	1
2	46 77 068 Socket, bulb RH	Socket, bulb	RH	1
3	44 68 930 93 190 465 Bulb	Bulb		2
4	43 20 594 93 190 467 Bulb	Bulb		4
4	85 32 756 Bulb LHD	Bulb	LHD	4
5	79 77 929 11 900 451 Nut	Nut		6
6	51 49 810 Lamp 1999-, LHD • LH \| With rear...	Lamp	1999-, LHD LH \| With rear...	1
6	45 61 544 Lamp LHD • RH	Lamp	LHD RH	1
6	51 49 836 Lamp 1998-, RHD • LH	Lamp	1998-, RHD LH	1
6	45 61 569 Lamp RHD • RH \| With rear...	Lamp	RHD RH \| With rear...	1
8	46 77 100 Socket, bulb	Socket, bulb		1
9	71 54 719 93 169 011 Bulb	Bulb		1
10	71 54 719 93 169 011 Bulb With rear fog light.	Bulb	With rear fog light.	1
11	46 77 159 Seal LH	Seal	LH	1
11	46 77 167 Seal RH	Seal	RH	1
12	46 85 343 Washer LH	Washer	LH	1
12B	79 71 658 11 900 428 Nut	Nut		6
13	45 61 577 93 167 196 Handle	Handle		1
14	48 31 236 Socket, bulb	Socket, bulb		2
15	79 22 214 Screw	Screw		4
16	48 32 176 54 92 947 Lens	Lens		2
17	95 12 880 93 190 471 Bulb	Bulb		2
18	48 31 301 Seal	Seal		2
19	48 31 251 Seal Not as separate spare...	Seal	Not as separate spare...	2
20	48 32 192 Seal Not as separate spare...	Seal	Not as separate spare...	2
21	48 31 244 Seal Not as separate spare...	Seal	Not as separate spare...	2
22	79 78 430 92 151 601 Screw	Screw		4
23	79 51 783 Clamp	Clamp		1
24	47 85 226 53 37 985 Stop light	Stop light		1
26	95 12 880 93 190 471 Bulb	Bulb		5
27	79 22 354 92 153 219 Screw	Screw		2
28	79 72 573 92 150 164 Clip nut	Clip nut		2
29	47 85 234 12 777 461 Cover	Cover		1
30	41 52 690 Lens	Lens		1

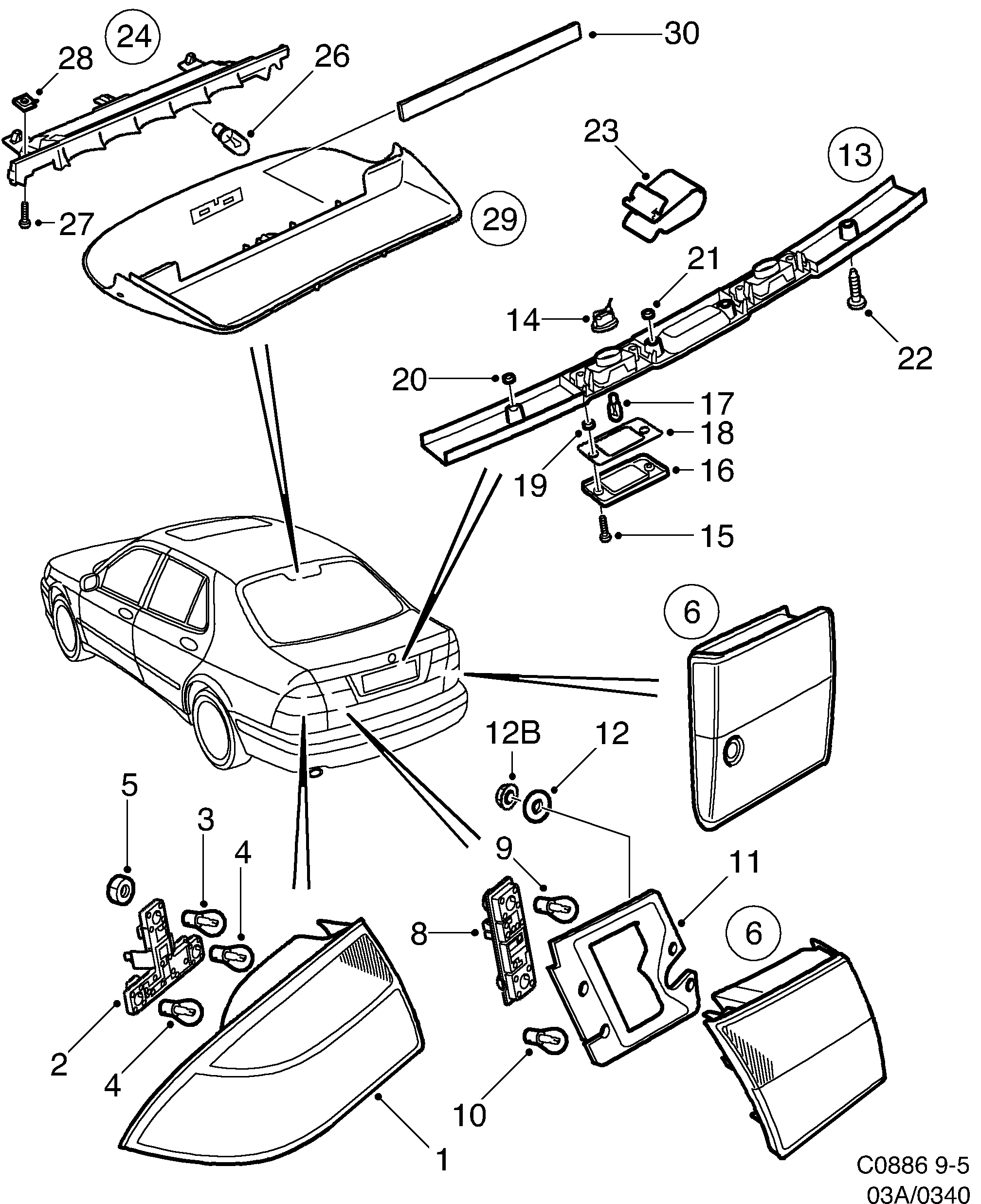

340: Electrical, general - Lighting - Tail lamp
