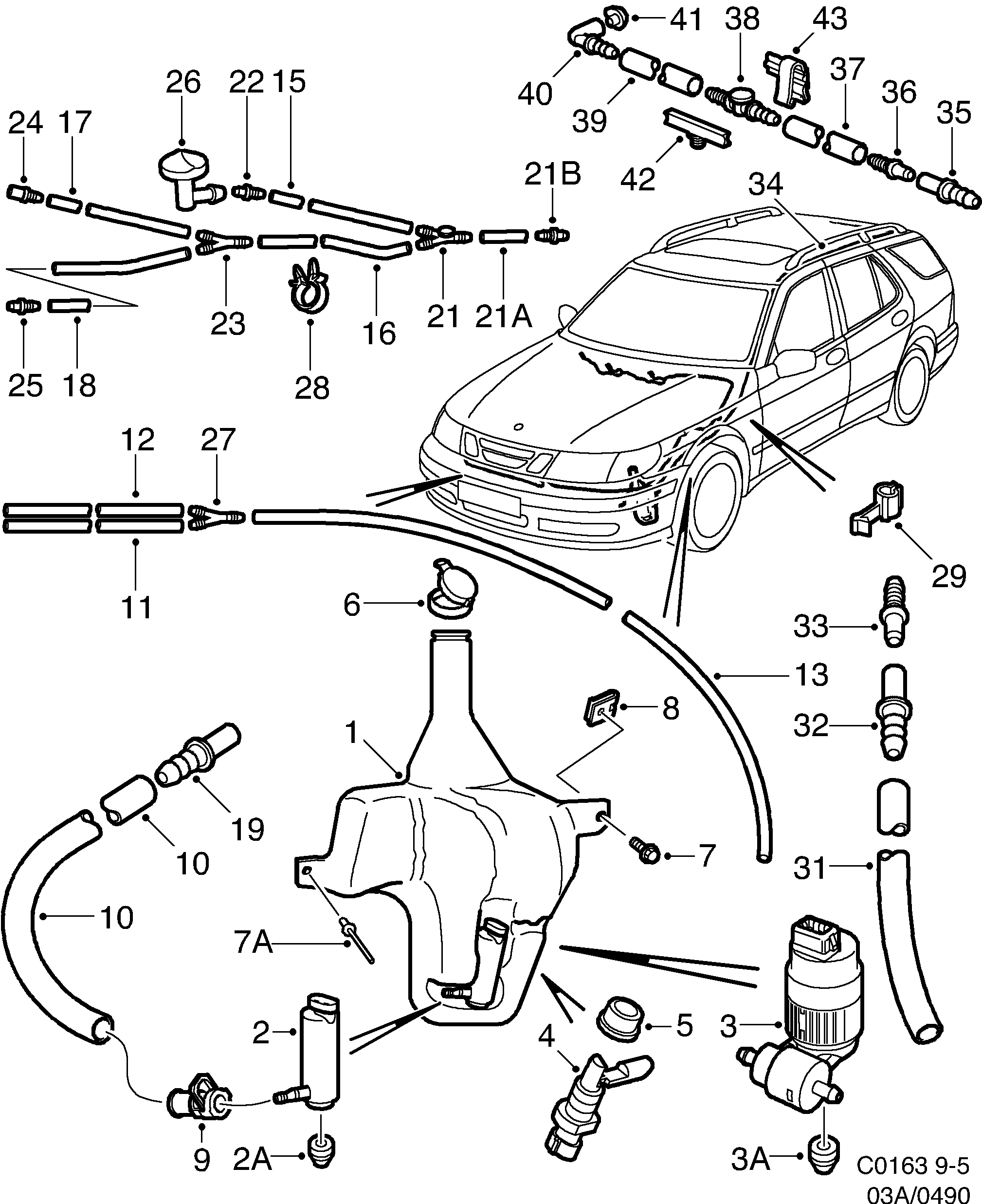

490: Electrical, general - Electric equipment, other - Washer unit
(1998 - 2001) | For 9-5 (9600) (2000)
100%
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 47 85 275 Washer fluid reservoir 1998-2000 • For cars without headlamp... | 1 | |
| 1 | 45 63 300 Washer fluid reservoir | 1 | |
| 2 | 48 32 911 90 508 709 Pump, washer-reservoir windscreen wipers | 1 | |
| 2A | 48 32 929 91 86 037 Bushing For washer pump, windscreen... | 1 | |
| 3 | 48 32 895 90 585 761 Pump, washer-reservoir headlamp wipers | 1 | |
| 3 | 48 32 903 Pump, washer-reservoir headlamp wipers rear window... | 1 | |
| 3A | 51 41 767 Bushing For washer pump, headlamp... | 1 | |
| 4 | 49 16 961 Level guard 1999- | 1 | |
| 5 | 42 40 800 Bushing | 1 | |
| 6 | 45 63 292 12 767 700 Cover | 1 | |
| 7 | 79 78 679 Hexagon screw | 1 | |
| 7A | 49 40 813 Blind rivet | 2 | |
| 8 | 73 99 181 Clip | 1 | |
| 9 | 48 32 986 12 787 618 Snap-on coupling | 1 | |
| 10 | 85 49 420 12 788 576 Hose L=1880 MM | 1 | |
| 11 | 85 49 420 12 788 576 Hose L=1580 MM | 1 | |
| 12 | 85 49 420 12 788 576 Hose L=440 MM | 1 | |
| 13 | 85 49 420 12 788 576 Hose L=490 MM | 1 | |
| 15 | 85 49 420 12 788 576 Hose L=90 MM | 1 | |
| 16 | 85 49 420 12 788 576 Hose L=270 MM | 1 | |
| 17 | 85 49 420 12 788 576 Hose L=155 MM | 1 | |
| 18 | 85 49 420 12 788 576 Hose L=505 MM | 1 | |
| 19 | 48 32 754 12 787 619 Junction pipe | 1 | |
| 21 | 51 42 724 53 36 961 Valve 1999- | 1 | |
| 21A | 85 49 420 12 788 576 Hose L=40 MM | 1 | |
| 21B | 48 32 762 12 788 577 Junction pipe | 1 | |
| 22 | 48 32 754 12 787 619 Junction pipe | 1 | |
| 23 | 49 14 628 53 36 961 Valve 1998- | 1 | |
| 24 | 48 32 754 12 787 619 Junction pipe | 1 | |
| 25 | 48 32 754 12 787 619 Junction pipe | 1 | |
| 26 | 49 14 610 55 84 917 Nozzle 1998- | 3 | |
| 27 | 51 42 708 Valve 1999- | 1 | |
| 28 | 85 30 917 Clip | 2 | |
| 29 | 45 64 829 Clip bonnet hinge | 1 | |
| 31 | 85 49 941 Hose L=660 MM | rear... | 1 | |
| 32 | 48 32 754 12 787 619 Junction pipe rear window wiper | 1 | |
| 33 | 48 32 762 12 788 577 Junction pipe rear window wiper | 1 | |
| 34 | 85 49 933 12 788 576 Hose L=6470 MM | rear... | 1 | |
| 35 | 48 32 754 12 787 619 Junction pipe rear window wiper | 1 | |
| 36 | 48 32 762 12 788 577 Junction pipe rear window wiper | 1 | |
| 37 | 85 49 941 Hose L=1900 MM | rear... | 1 | |
| 38 | 51 42 732 53 36 979 Valve 1999- • rear window wiper | 1 | |
| 39 | 85 49 941 Hose L=40 MM | rear... | 1 | |
| 40 | 49 15 153 Junction pipe rear window wiper | 1 | |
| 41 | NozzleLighting 1999-2001 • Body Style: 5D • rear window wiper | ||
| 42 | 46 77 522 Clip rear window wiper | 6 | |
| 43 | 48 13 796 Clip rear window wiper | 3 | |
85 49 420 12 788 576 Hose L=5000 MM | X |
