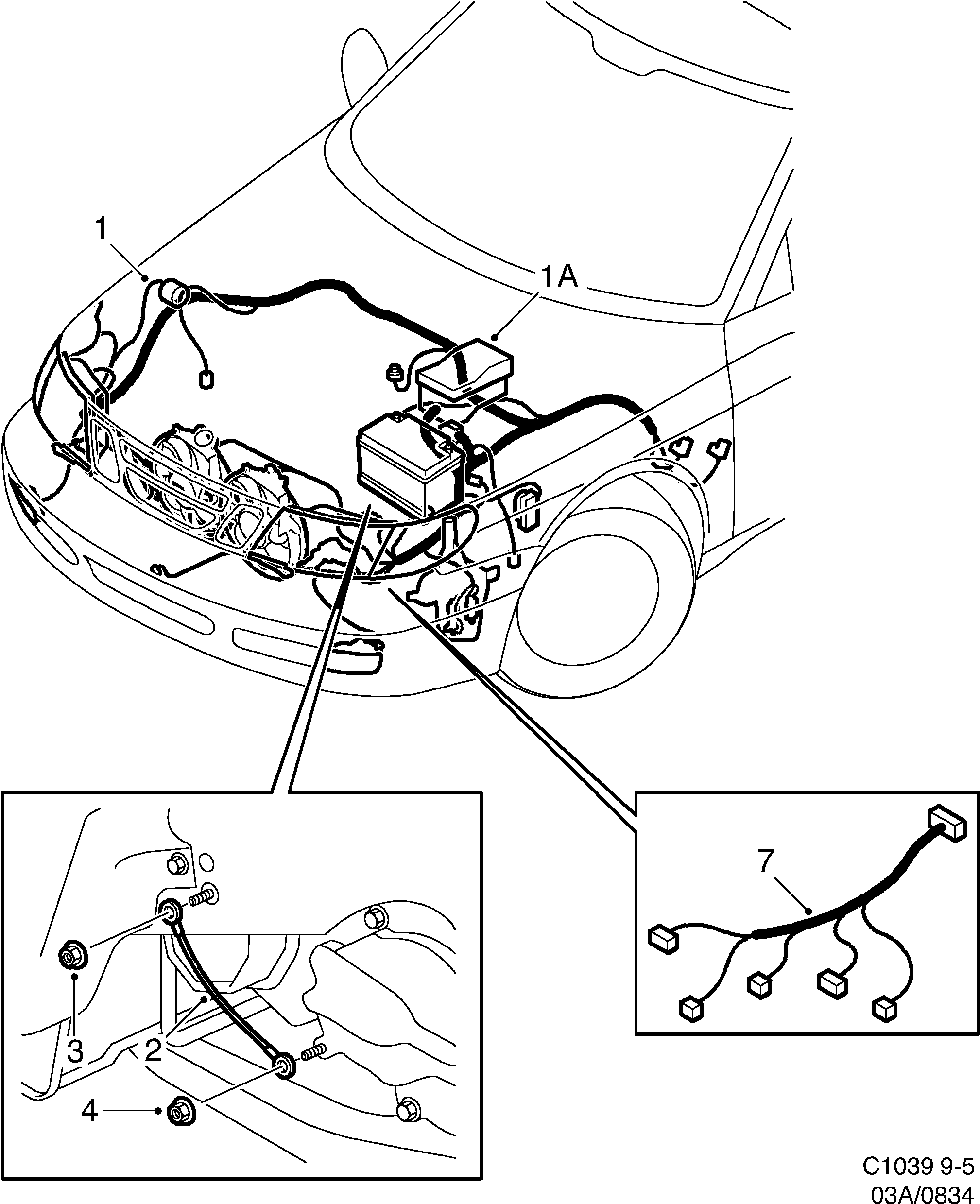

834: Electrical, general - Wiring and fuses - Front
(2000) | For 9-5 (9600) (2000)
100%
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 51 02 355 Cable harness LHD | 1 | |
| 1 | 52 42 284 Cable harness LHD • TCS | 1 | |
| 1 | 51 02 363 Cable harness RHD | 1 | |
| 1 | 52 42 292 Cable harness RHD • TCS | 1 | |
| 1 | 51 02 371 Cable harness LHD | 1 | |
| 1 | 52 42 300 Cable harness LHD • TCS | 1 | |
| 1 | 51 02 397 Cable harness LHD • For cars without headlamp... | 1 | |
| 1 | 52 42 326 Cable harness LHD • TCS | For cars... | 1 | |
| 1 | 51 02 389 Cable harness RHD | 1 | |
| 1 | 52 42 318 Cable harness RHD • TCS | 1 | |
| 1 | 51 02 405 Cable harness RHD • For cars without headlamp... | 1 | |
| 1 | 52 42 334 Cable harness RHD • TCS | For cars... | 1 | |
| 1A | Relay boxElectric equipment, other | ||
| 2 | 48 12 541 54 76 486 Ground cable gearbox wheel housing | 1 | |
| 3 | 79 77 952 11 900 452 Hexagon nut | 1 | |
| 4 | 79 77 929 11 900 451 Nut | 1 | |
| 7 | 51 00 425 Cable harness connection bumper fog-lights outer... | 1 | |
| 7 | 51 00 433 Cable harness With corner lights. connection... | 1 |
