Pos.	Part No.	Description	Usage	Qty
1	51 03 858 Cable harness LHD	Cable harness	LHD	1
1	51 03 874 Cable harness LHD	Cable harness	LHD	1
1	51 03 866 Cable harness RHD	Cable harness	RHD	1
1	51 03 882 Cable harness RHD	Cable harness	RHD	1
2	49 43 841 Cable I-BUS \| Cut to...	Cable	I-BUS \| Cut to...	1
3	49 43 841 Cable P-BUS \| Cut to...	Cable	P-BUS \| Cut to...	1
4	Cable harness kitWiring and fuses rear light body	Cable harness kitWiring and fuses rear light body
5	51 03 817 52 40 320 Cable harness side airbag seat-belt tensioners	Cable harness	side airbag seat-belt tensioners	1
	Airbag moduleDashboard	Airbag moduleDashboard
	49 43 841 Cable L=25000MM	Cable	L=25000MM
6	49 27 612 12 757 092 Cable harness park assistance	Cable harness	park assistance	1
7	53 58 403 54 70 679 Cable harness ABS Fuel pump	Cable harness	ABS Fuel pump	1
	40 63 087 Cable terminal	Cable terminal		2
	44 66 801 Cable terminal	Cable terminal		11
	47 37 060 Connector housing	Connector housing		1
	47 37 086 Locking	Locking		1
	51 03 825 54 70 679 Cable harness	Cable harness		1

Pos.	Part No.	Description	Usage	Qty
1	51 03 858 Cable harness LHD	Cable harness	LHD	1
1	51 03 874 Cable harness LHD	Cable harness	LHD	1
1	51 03 866 Cable harness RHD	Cable harness	RHD	1
1	51 03 882 Cable harness RHD	Cable harness	RHD	1
2	49 43 841 Cable I-BUS \| Cut to...	Cable	I-BUS \| Cut to...	1
3	49 43 841 Cable P-BUS \| Cut to...	Cable	P-BUS \| Cut to...	1
4	Cable harness kitWiring and fuses rear light body	Cable harness kitWiring and fuses rear light body
5	51 03 817 52 40 320 Cable harness side airbag seat-belt tensioners	Cable harness	side airbag seat-belt tensioners	1
	Airbag moduleDashboard	Airbag moduleDashboard
	49 43 841 Cable L=25000MM	Cable	L=25000MM
6	49 27 612 12 757 092 Cable harness park assistance	Cable harness	park assistance	1
7	53 58 403 54 70 679 Cable harness ABS Fuel pump	Cable harness	ABS Fuel pump	1
	40 63 087 Cable terminal	Cable terminal		2
	44 66 801 Cable terminal	Cable terminal		11
	47 37 060 Connector housing	Connector housing		1
	47 37 086 Locking	Locking		1
	51 03 825 54 70 679 Cable harness	Cable harness		1

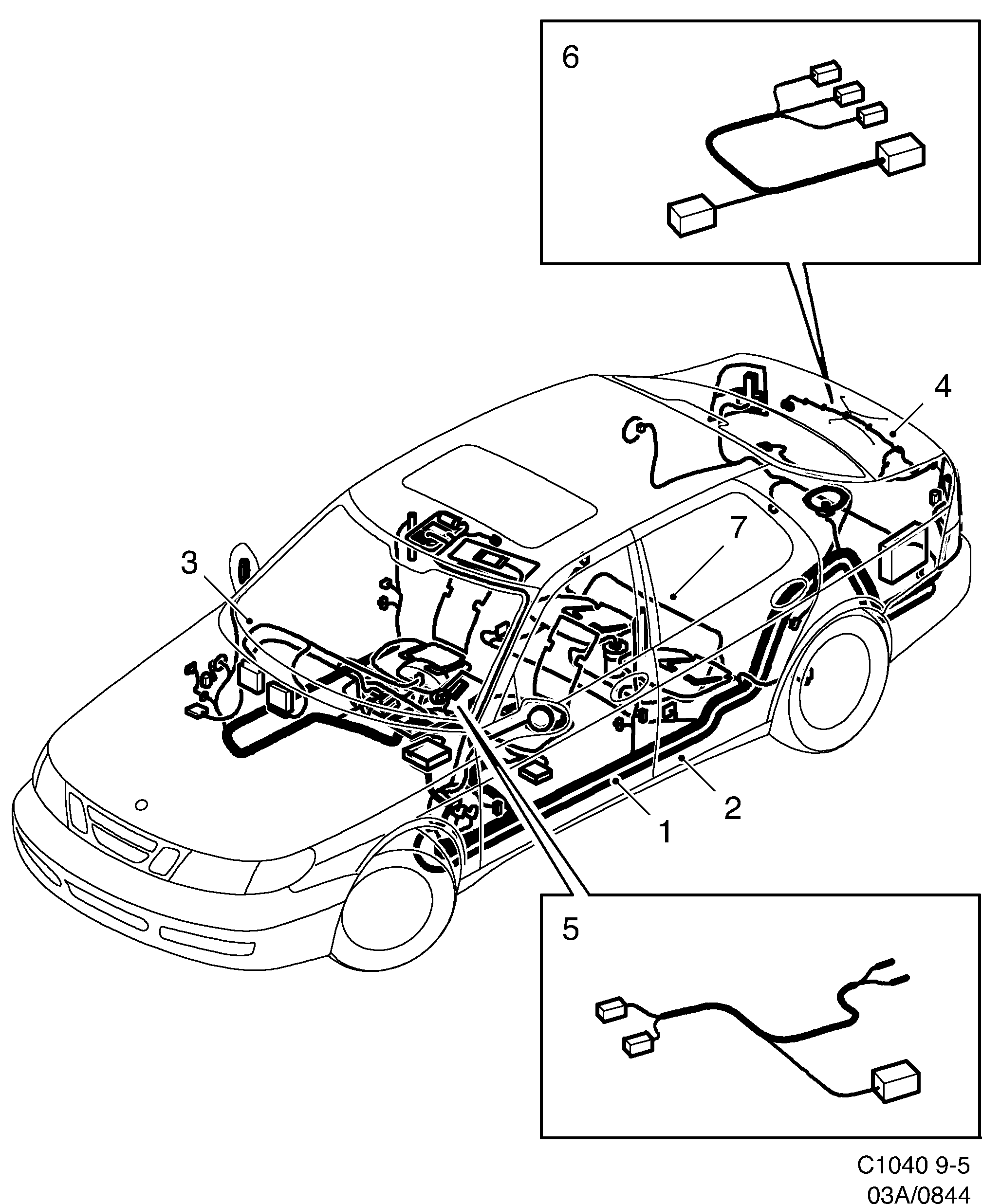

844: Electrical, general - Wiring and fuses - Rear
