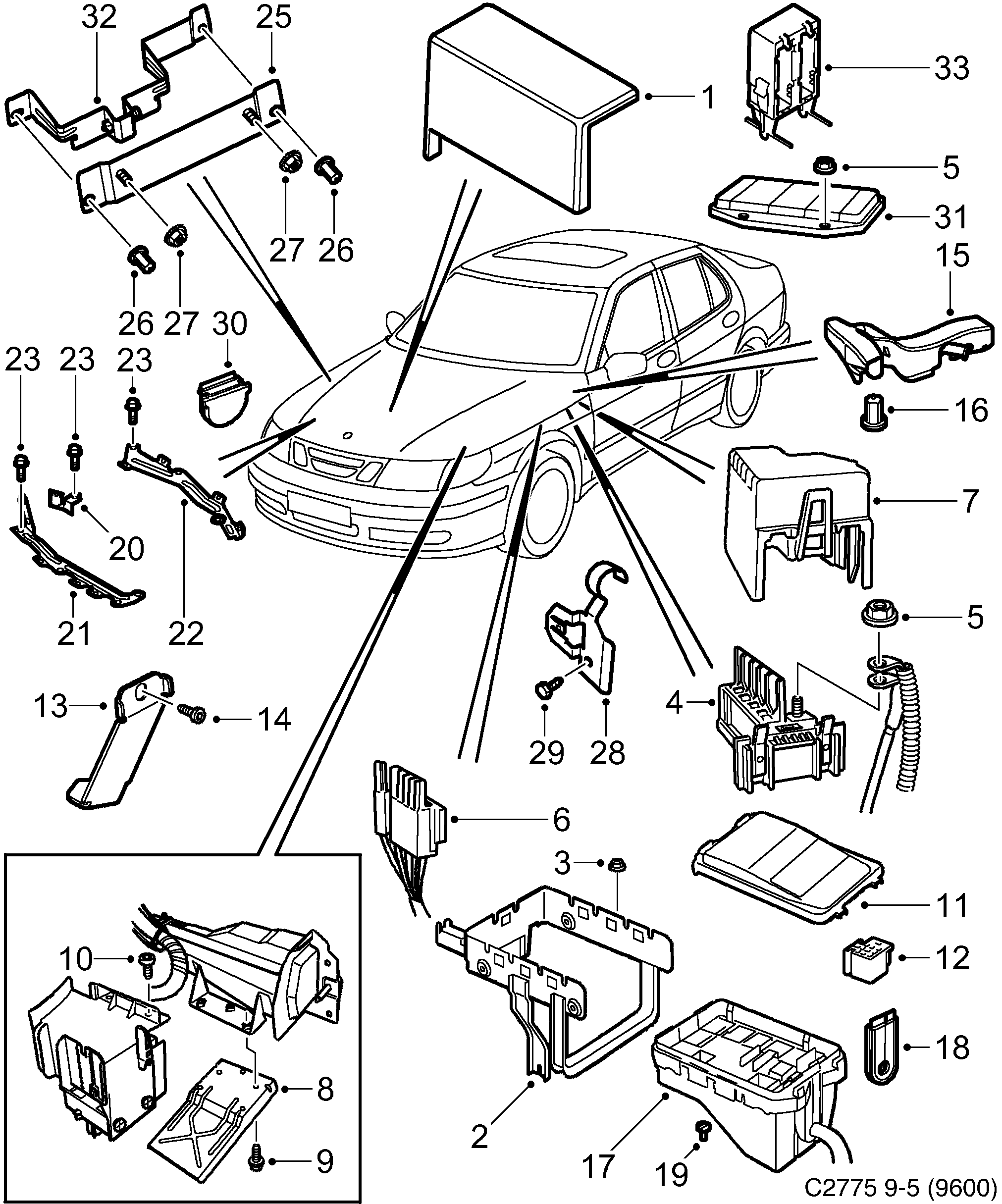

940: Electrical, general - Wiring and fuses - Holders and brackets
(1998 - 2010) | For 9-5 (9600) (2000)
100%
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 51 01 688 12 764 467 Cover 1999-2004 | 1 | |
| 2 | 45 89 040 Bracket 1998-2001 • main fuse box | 1 | |
| 3 | 79 85 377 Nut | 3 | |
| 4 | 48 14 349 Fuse holder 1998-2001 | 1 | |
| 5 | 92 150 133 11 900 451 Nut | X | |
| 6 | 44 10 577 48 14 349 Fuse holder | 1 | |
| 7 | 46 93 362 Cover 1998-2001 | 1 | |
| 8 | 49 29 345 Shelf LHD • main fuse box | 1 | |
| 9 | 92 153 146 Screw | 3 | |
| 10 | 79 77 002 92 153 006 Screw | 2 | |
| 11 | 51 08 139 Cover 2000-2000 • main fuse box | 1 | |
| 12 | 44 09 934 Bracket 5-WAY MINIMODULE | X | |
| 12 | 44 09 942 Bracket 5-WAY RELAYMODUL | X | |
| 12 | 44 09 959 30 560 919 Bracket 9-WAY RELAYMODUL | X | |
| 13 | 48 06 725 Bracket 1998-2001 • B308 | 1 | |
| 14 | 79 78 182 92 150 012 Screw 1998-2001 • B308 | 1 | |
| 15 | 49 49 236 52 48 810 Cover 2000-2000 • wiring harness ABS | 1 | |
| 16 | 40 87 128 92 152 035 Plastic nut 2000-2001 | 4 | |
| 17 | 45 85 840 Box 1998-2001 | 1 | |
| 18 | 42 33 375 Grommet 1998-2001 | 1 | |
| 19 | 71 16 452 Draining plug 1998-2001 | 1 | |
| 20 | 59 54 912 Bracket D308L | 1 | |
| 21 | 59 54 920 Bracket D308L | 1 | |
| 22 | 59 54 938 Bracket D308L | 1 | |
| 23 | 32 000 275 Screw D308L | 7 | |
| 25 | 53 40 146 Bracket D308L | 1 | |
| 26 | 40 87 128 92 152 035 Plastic nut D223L, D308L | 2 | |
| 27 | 79 77 929 11 900 451 Nut D308L | 2 | |
| 28 | 53 51 218 Bracket 1998-2005 • D308L, Z19DTH | 1 | |
| 29 | 79 77 465 92 153 149 Screw 1998-2006 | 1 | |
| 31 | 53 59 567 Cover D223L, Z19DTH | 1 |
