Question 1

Where to find the exploded diagram for Drive shaft on my Saab 9-5 (9600) 2000?

Accepted Answer

Find on Saabiste.net the complete and official interactive technical diagram for Drive shaft on Saab 9-5 (9600) 2000. All components are detailed with their original SAAB OEM references.

Question 2

How do I identify a specific Saab reference in the section Drive shaft?

Accepted Answer

Each part of the exploded diagram has a numbered marker linked to our parts table. You can click on the visual marker to instantly highlight the corresponding row containing the OEM part number, quantity, and chassis restrictions.

Question 3

How do I copy or use the part number of a component in section Drive shaft?

Accepted Answer

Simply click on the monospace part number in the table. Saabiste will instantly copy the OEM part number to your clipboard to make it easier for you to search at your Saab parts suppliers.

Question 4

What does NLS mean in the Saab 9-5 (9600) catalog?

Accepted Answer

NLS stands for "No Longer Serviced". For these discontinued original parts in the section Drive shaft, Saabiste displays, whenever available, the official replacement reference recommended by the manufacturer.

Question 5

Are the parts in this section Drive shaft suitable for left-hand drive (LHD) or right-hand drive (RHD)?

Accepted Answer

Steering compatibilities are shown in the restrictions column of the parts table. You can also use the global EPC filters to hide part variants that are incompatible with your Saab's steering type (LHD/RHD).

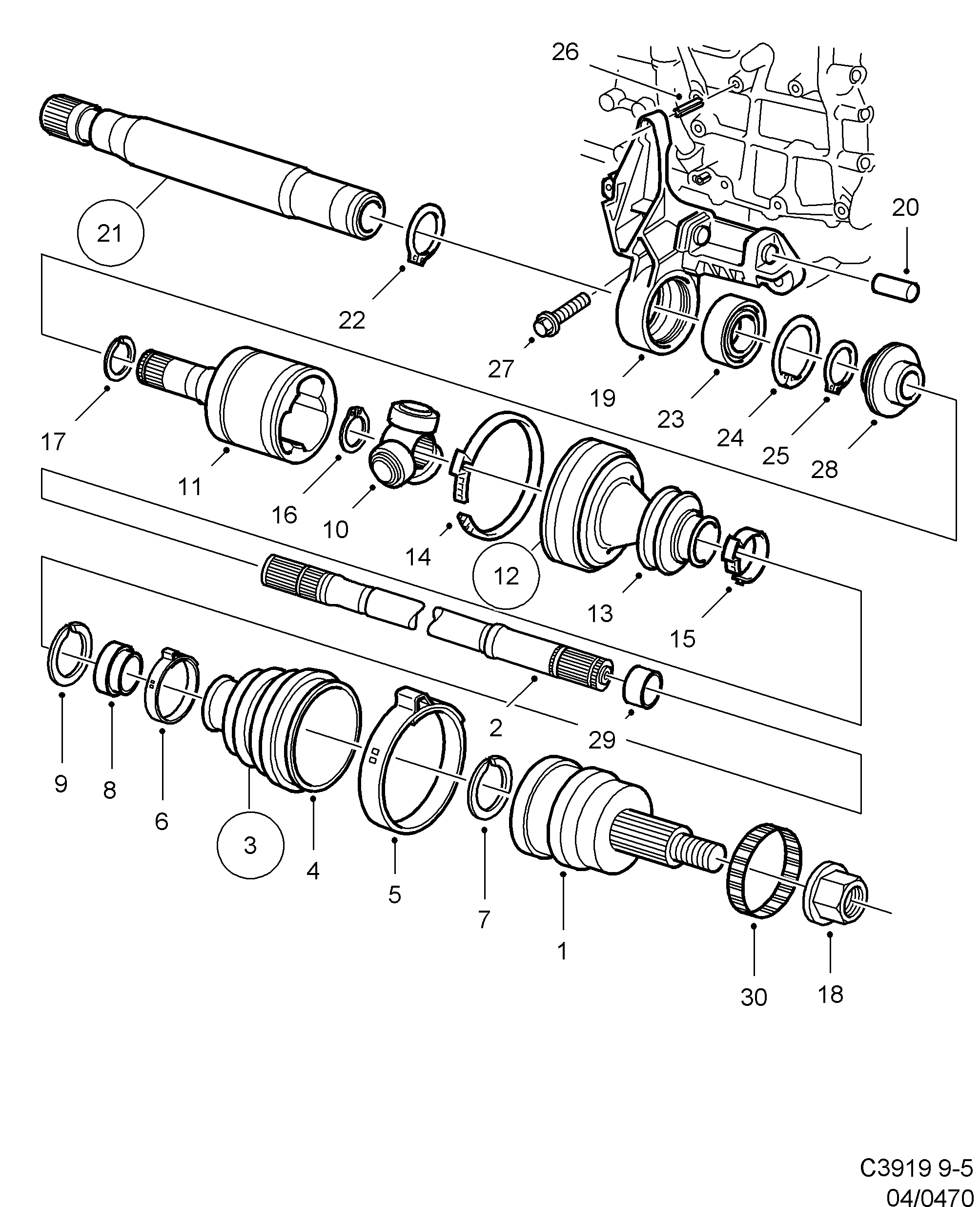

Pos.	Part No.	Description	Usage	Qty
1	51 71 186 52 32 897 Universal joint 1999-2000	Universal joint	1999-2000	2
1	52 32 897 Universal joint 2000-	Universal joint	2000-	2
2	46 86 887 Drive shaft	Drive shaft		2
3	Bellows kitKits	Bellows kitKits
4	Bellows Not as separate spare...	Bellows	Not as separate spare...
5	46 87 018 Clamp	Clamp		1
6	46 87 000 Clamp	Clamp		1
7	46 86 978 Lock ring	Lock ring		1
8	46 87 091 Spacer ring	Spacer ring		2
9	46 86 994 Spring washer	Spring washer		2
10	46 86 895 Companion flange	Companion flange		2
11	46 86 911 Companion flange	Companion flange		2
12	Bellows kitKits	Bellows kitKits
13	Bellows Not as separate spare...	Bellows	Not as separate spare...	1
14	46 86 937 Clamp	Clamp		1
15	46 86 952 Clamp	Clamp		1
16	46 86 903 Lock ring	Lock ring		2
17	46 86 929 Lock ring	Lock ring		2
18	51 25 018 Lock nut 1999-	Lock nut	1999-	2
19	49 26 705 54 40 425 Bearing bracket 1998-2000 • B205, B235	Bearing bracket	1998-2000 B205, B235	1
19	49 26 697 54 40 433 Bearing bracket 1998-2000 • B205, B235	Bearing bracket	1998-2000 B205, B235	1
19	45 78 100 52 58 371 Bearing bracket 1998-2000 • B308E	Bearing bracket	1998-2000 B308E	1
20	75 93 080 Bushing B205, B235	Bushing	B205, B235	1
21	49 26 580 Countershaft	Countershaft		1
22	93 78 332 92 152 060 Retaining ring	Retaining ring		1
23	93 81 450 12 785 906 Ball bearing	Ball bearing		1
24	79 73 738 12 788 653 Retaining ring	Retaining ring		1
25	93 78 332 92 152 060 Retaining ring	Retaining ring		1
26	79 74 074 Cotter pin B205, B235	Cotter pin	B205, B235	2
27	79 78 224 11 900 368 Screw B205, B235	Screw	B205, B235	3
27	79 78 299 Screw B308E	Screw	B308E	3
28	45 78 241 30 566 341 Sealing ring	Sealing ring		1
29	46 45 594 Deadener weight 2000-2001 • B235R • LH	Deadener weight	2000-2001 B235R LH	1
30	12 822 141 Ring	Ring		2

Pos.	Part No.	Description	Usage	Qty
1	51 71 186 52 32 897 Universal joint 1999-2000	Universal joint	1999-2000	2
1	52 32 897 Universal joint 2000-	Universal joint	2000-	2
2	46 86 887 Drive shaft	Drive shaft		2
3	Bellows kitKits	Bellows kitKits
4	Bellows Not as separate spare...	Bellows	Not as separate spare...
5	46 87 018 Clamp	Clamp		1
6	46 87 000 Clamp	Clamp		1
7	46 86 978 Lock ring	Lock ring		1
8	46 87 091 Spacer ring	Spacer ring		2
9	46 86 994 Spring washer	Spring washer		2
10	46 86 895 Companion flange	Companion flange		2
11	46 86 911 Companion flange	Companion flange		2
12	Bellows kitKits	Bellows kitKits
13	Bellows Not as separate spare...	Bellows	Not as separate spare...	1
14	46 86 937 Clamp	Clamp		1
15	46 86 952 Clamp	Clamp		1
16	46 86 903 Lock ring	Lock ring		2
17	46 86 929 Lock ring	Lock ring		2
18	51 25 018 Lock nut 1999-	Lock nut	1999-	2
19	49 26 705 54 40 425 Bearing bracket 1998-2000 • B205, B235	Bearing bracket	1998-2000 B205, B235	1
19	49 26 697 54 40 433 Bearing bracket 1998-2000 • B205, B235	Bearing bracket	1998-2000 B205, B235	1
19	45 78 100 52 58 371 Bearing bracket 1998-2000 • B308E	Bearing bracket	1998-2000 B308E	1
20	75 93 080 Bushing B205, B235	Bushing	B205, B235	1
21	49 26 580 Countershaft	Countershaft		1
22	93 78 332 92 152 060 Retaining ring	Retaining ring		1
23	93 81 450 12 785 906 Ball bearing	Ball bearing		1
24	79 73 738 12 788 653 Retaining ring	Retaining ring		1
25	93 78 332 92 152 060 Retaining ring	Retaining ring		1
26	79 74 074 Cotter pin B205, B235	Cotter pin	B205, B235	2
27	79 78 224 11 900 368 Screw B205, B235	Screw	B205, B235	3
27	79 78 299 Screw B308E	Screw	B308E	3
28	45 78 241 30 566 341 Sealing ring	Sealing ring		1
29	46 45 594 Deadener weight 2000-2001 • B235R • LH	Deadener weight	2000-2001 B235R LH	1
30	12 822 141 Ring	Ring		2

460: Transmission - Drive shaft - Outer universal joint
