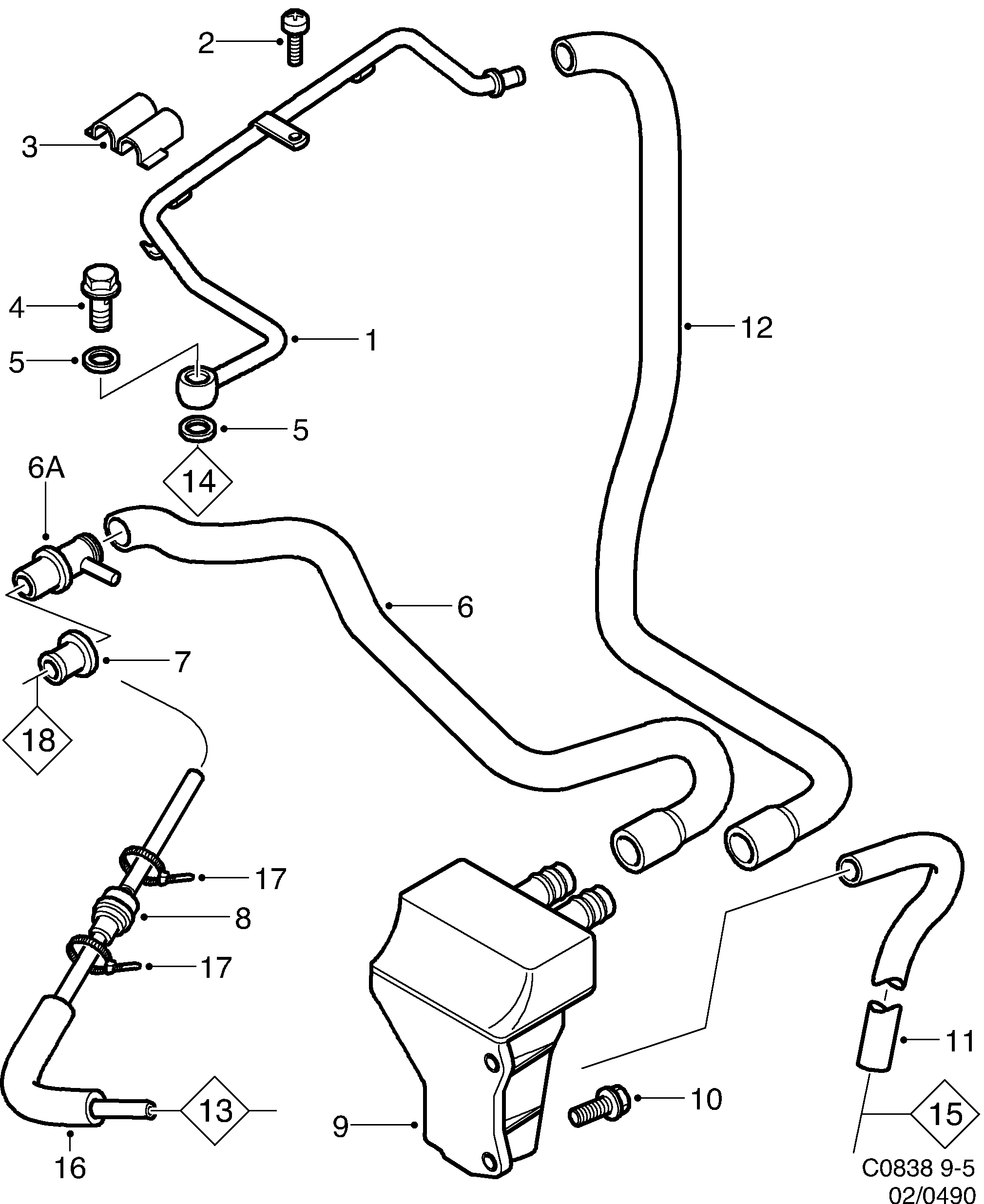

480: Engine - Lubricating system - Crank case ventilation
(1998 - 2003 | PETROL) | For 9-5 (9600) (2001)
100%
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 91 83 849 30 567 027 Tube PETROL | 1 | |
| 2 | 91 45 764 30 551 902 Screw PETROL | 1 | |
| 3 | 46 85 905 90 344 674 Clamp PETROL | 1 | |
| 4 | 51 25 224 Screw 2001-2003 • PETROL | 1 | |
| 5 | 81 24 158 Gasket PETROL | 2 | |
| 6 | 91 88 806 55 560 463 Hose 1999-2003 • PETROL | 1 | |
| 6A | 30 588 567 55 560 443 Nipple 1999-2003 • PETROL • (91 92 949) | 1 | |
| 7 | 75 15 190 95 49 593 Bushing -2001 • PETROL | 1 | |
| 7 | 95 49 593 Bushing 2001-2003 • PETROL | 1 | |
| 8 | 93 99 973 Hose 2000-2003 • PETROL | 1 | |
| 9 | 91 97 427 Oil trap 2000-2003 • PETROL | 1 | |
| 10 | 79 78 190 55 566 034 Screw PETROL | 2 | |
| 11 | 91 72 115 55 560 445 Hose PETROL | 1 | |
| 12 | 91 86 875 55 560 462 Hose PETROL | 1 | |
| 13 | Throttle bodyFuel system PETROL | ||
| 14 | PETROL | ||
| 15 | SumpShort block 1998-2001 • PETROL • Chassis No.: --13056870, --13056870 | ||
| 15 | 2001-2003 • PETROL • Chassis No.: 13056871--, 13056871-- | ||
| 16 | 91 87 998 Hose PETROL | 1 | |
| 17 | 79 71 864 Tensioning band PETROL | 2 | |
| 18 | Valve coverShort block PETROL |
