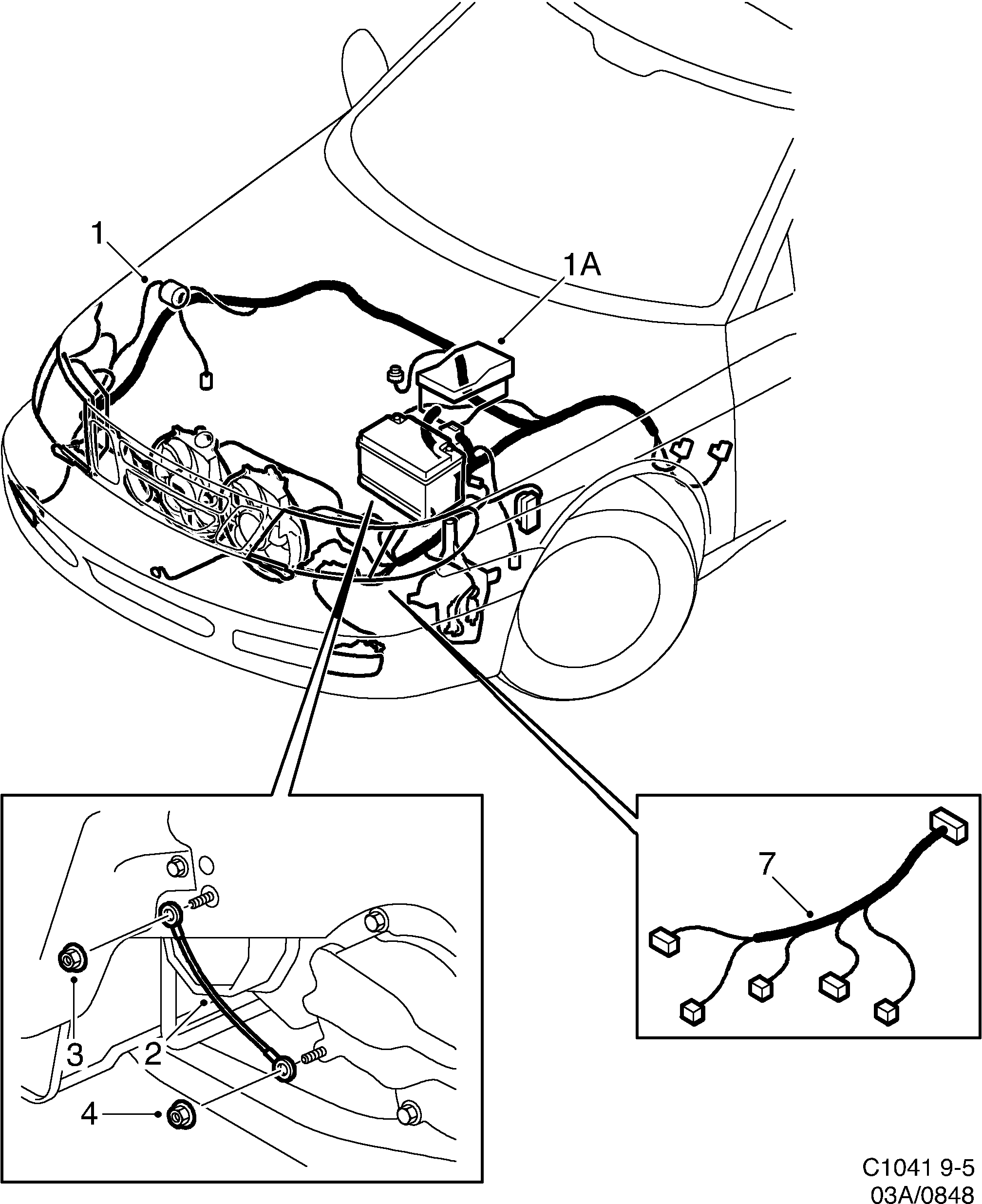

848: Electrical, general - Wiring and fuses - Front
(2001) | For 9-5 (9600) (2001)
100%
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 52 40 056 Cable harness LHD | 1 | |
| 1 | 52 42 839 Cable harness LHD • TCS | 1 | |
| 1 | 52 40 064 Cable harness RHD | 1 | |
| 1 | 52 42 847 Cable harness RHD • TCS | 1 | |
| 1 | 52 42 797 Cable harness LHD | 1 | |
| 1 | 52 42 854 Cable harness LHD • TCS | 1 | |
| 1 | 52 42 805 Cable harness RHD | 1 | |
| 1 | 52 42 862 Cable harness RHD • TCS | 1 | |
| 1A | Relay boxElectric equipment, other | ||
| 2 | 48 12 541 54 76 486 Ground cable gearbox wheel housing | 1 | |
| 3 | 79 77 952 11 900 452 Hexagon nut | 1 | |
| 4 | 79 77 929 11 900 451 Nut | 1 | |
| 7 | 51 00 425 Cable harness connection bumper fog-lights outer... | 1 |
